AECHM10-8.6
Countersunk Head Threaded Insert – Open End Keyless
AECHM10-8.6
Countersunk Head Threaded Insert – Open End Keyless
- Designed for high load applications. Countersunk feature allow fastener to be installed flush with sheet surface.
Specifications
- Thread Size
- M10 x 1.5
- Thread Size X Pitch
- M10 x 1.5
- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Alloy Steel
- Standard Material
- 4037 Alloy Steel
- Standard Finish
- .0003” minimum thickness per SAE AMS-QQ-P-416 Class 2, Cadmium Electroplate, Cadmium Plate, Type II
- Identification Mark
- 1 Rad.
- Weight per 1000_lb
- 24.4
- Product Category
- Countersunk Head Threaded Insert – Open End Keyless
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103658
- Fastening
- Uninstalled
- ATLAS products Grip Range
- 6.10mm, 6.10mm – 8.60mm, 8.60mm
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Metric

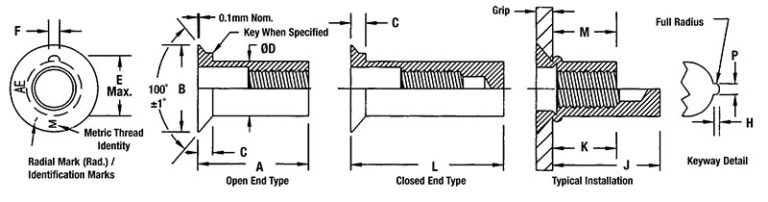

- A ± 0.38_mm
- 25.50mm
- B Ref._mm
- 19.50mm
- E Max._mm
- 15.15mm
- F + 0.13_mm
- 3.05mm
- Install Drill Size Ref._mm
- 12.50mm
- Install Hole Size Max._mm
- 12.70mm
- Install Hole Size Min._mm
- 12.50mm
- C Max._mm
- 3.15mm
- øD – 0.1_mm
- 12.44mm
- Pull Up Factor_mm
- 3.94mm
