IUB-080-2
Tapered, thru threaded inserts – Types IUA, IUB, IUC
IUB-080-2
Tapered, thru threaded inserts – Types IUA, IUB, IUC
- Designed for use in tapered holes.
- Tapered mounting hole allows for rapid and accurate alignment prior to installation.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
规格
- Thread Code
- 080
- 螺纹尺寸
- .060-80 (#0-80), #0-80
- 紧固件材质
- 黄铜, 快削, Leaded Brass
- 标准表面处理
- No Finish, Plain
- Length Code
- 2
- Product Category
- Tapered, thru threaded inserts – Types IUA, IUB, IUC
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 102738
- 螺纹类型
- IUB
- 底板材质
- 塑料
- 品牌
- SI
- 紧固件特点
- 内螺纹
- 安装设备/方法
- 热熔焊/超声波
- PEM产品系列
- SI
- 产品类型
- 嵌件
- 技术类型
- 塑料用嵌件
- 单位（公制/英制）
- 公制

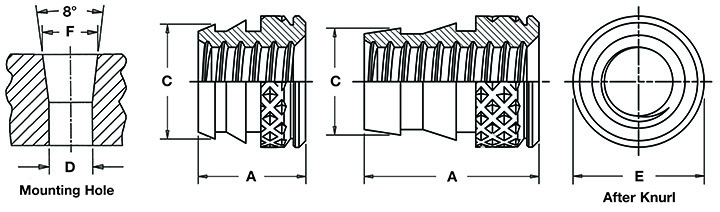

- A ± .005_in
- .188in
- C ± .005_in
- .115in
- D ± .002_in
- .107in
- E ± .005_in
- .141in
- F ± .002_in
- .123in
- Min. Hole Depth_in
- .228in
- R Ref. Taper Length_in
- .114in
