RAA4-9-6

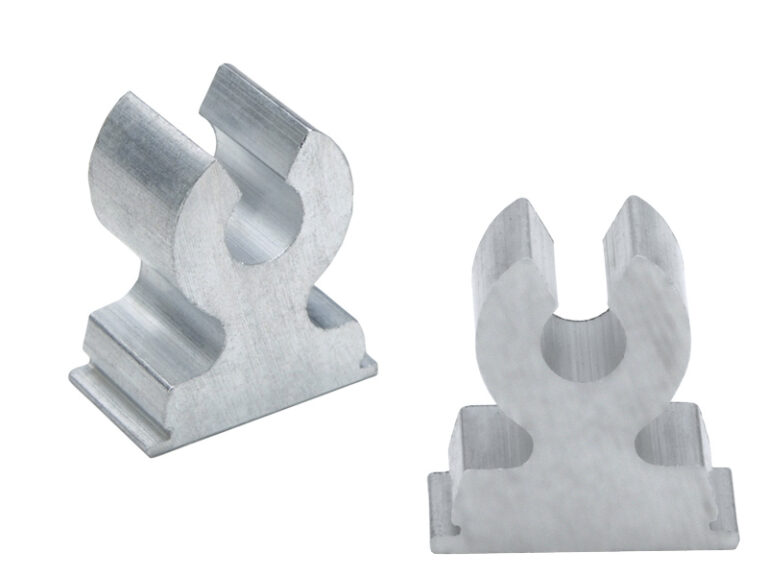

Aluminum Right Angle Fasteners – Type RAA
RAA4-9-6
Aluminum Right Angle Fasteners – Type RAA
Type RAA right angle fasteners for sheet metal can accept thread forming or self-tapping screws.
规格
- Thread Form Screw Size
- #4-40
- Screw Size Code
- 4
- Standard Material
- 6061-T6 Aluminum
- Standard Finish
- Natural
- For Use in Sheet Hardness
- HRB 45 (Hardness Rockwell “B” Scale) / HB (Hardness Brinell) 77 or Less
- Height Code
- 9
- Length Code
- 6
- Product Category
- Aluminum Right Angle Fasteners – Type RAA
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103700
- Thread Type
- RAA
- Application Type
- Automotive Electronics, Datacom, Industrial, Manufacturing & Sheet Metal Fabrication, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Right Angle
- G Nom
- .389in, 0.389in
- Industry
- Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
- Installation Equipment/Method
- C-Frame Manual Feed
- L Len Pm 003in Or 08mm
- .183in, 0.183in
- PEM Product Family
- RA
- Product Type
- Nuts
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Unified

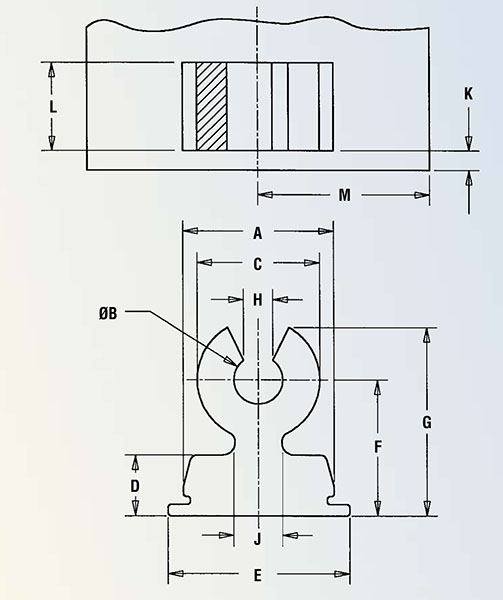

- A ± .003_in
- .308in
- C Nom._in
- .250in
- D Nom._in
- .125in
- E ± .006_in
- .368in
- F – Height ± .006_in
- .281in
- H ± .007_in
- .054in
- Hole Size in Sheet + 0.002 – 0.001_in
- .312 x .187in
- J Nom._in
- .096in
- Min. Dist. Hole C/L to Edge M_in
- .350in
- Min. Part Face to Edge K_in
- .040in
- Min. Sheet Thickness_in
- .040in
- øB ± .004_in
- .100in
