IUTFB-0616
Heat Staking Insert, Symmetrical, Thru-Threaded
IUTFB-0616
Heat Staking Insert, Symmetrical, Thru-Threaded
- Provides larger surface area and high pullout in reverse entry applications.
- Self-aligning lead-in provides accurate alignment prior to installation.
- Aluminum and stainless steel available upon request.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
仕様
- Thread Code.jp
- 0616
- ねじ径
- .375-16 (3/8-16), 3/8-16
- ねじの仕様
- 2B per ASME B1.1
- ファスナー材質
- Brass
- Standard Material
- Brass
- Product Category
- Heat Staking Insert, Flanged, Straight Wall, Thru-Threaded
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 121614
- Thread Type
- IUTFB
- 下板の材質
- Plastic
- ブランド
- SI
- ファスナーの特徴
- Threaded Internal
- 取付け用機材
- Heat Staking/Ultrasonic
- PEM®製品
- SI
- 製品
- Inserts
- 技術
- Inserts for Plastics
- ユニット
- Unified

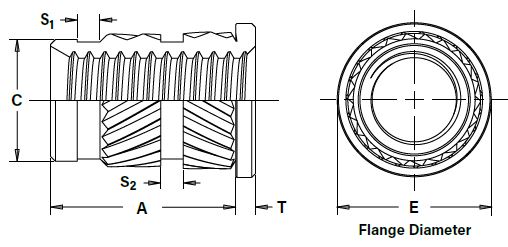

- A ± .005_in
- .500in
- C ± .005_in
- .462in
- E ± .005_in
- .550in
- Hole Dia. +.003 -.000_in
- .468in
- Min. Hole Depth_in
- .530in
- S1 Nom._in
- .062in
- S2 Nom._in
- .046in
- T ± 0.005_in
- .065in
