SMPP-M2.5

Nuts for Ultra-Thin Sheets – Type SMPP

Nuts for Ultra-Thin Sheets – Type SMPP

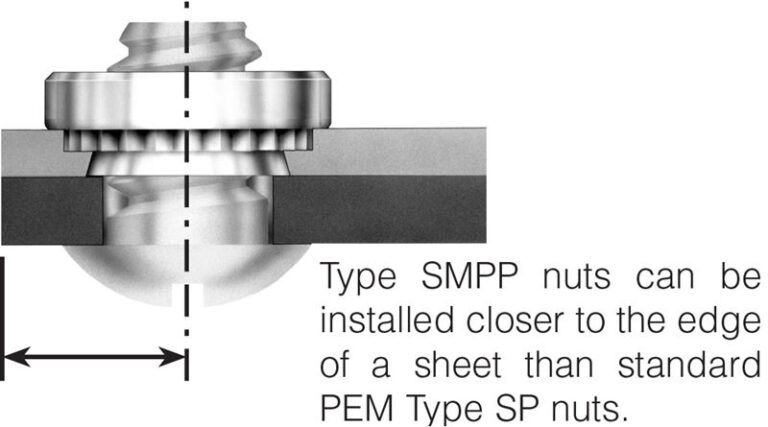

Type SMPP self-clinching nuts are for installation into ultra-thin sheets.

Installs into stainless steel sheets as thin as 0.64 mm.
Corrosion resistance similar to 300 series stainless steel.
Reduced outer dimensions and thinner sheet capabilities compared to type SP thread sizes.
Recommended for use in stainless steel sheets HRB 90 / HB 192 or less.

Thread Code.jp: M2.5
ねじ径: M2.5 x 0.45
ねじ径 x ピッチ: M2.5 x 0.45
ねじの仕様: 6H, ASME B1.13M, Internal
ファスナー材質: Age Hardened A286 Stainless Steel
表面処理: Passivated and/or tested, Passivated and/or tested per ASTM A380
For Use in Sheet Hardness: HRB 90 / HB 192 or Less
Product Category: Nuts for Ultra-Thin Sheets – Type SMPS, SMPP
CAD Supplier: PennEngineering® (PEM®)
CADPartID: 103687
アプリケーション: Automotive, Automotive Electronics, Datacom, Electric Vehicle Chargers, Electric Vehicles, Industrial, Telecom
下板の材質: Aluminum, Stainless Steel, Steel
ブランド: PEM
ファスナーの特徴: Close To Edge, Threaded Internal
業界: Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
取付け用機材: C-Frame Automatic Feed, C-Frame Manual Feed, In-Die
PEM®製品: CL, SS
製品: Nuts
技術: Self-Clinching
ユニット: Metric
