DSOS-M3-7
Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS
DSOS-M3-7
Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS

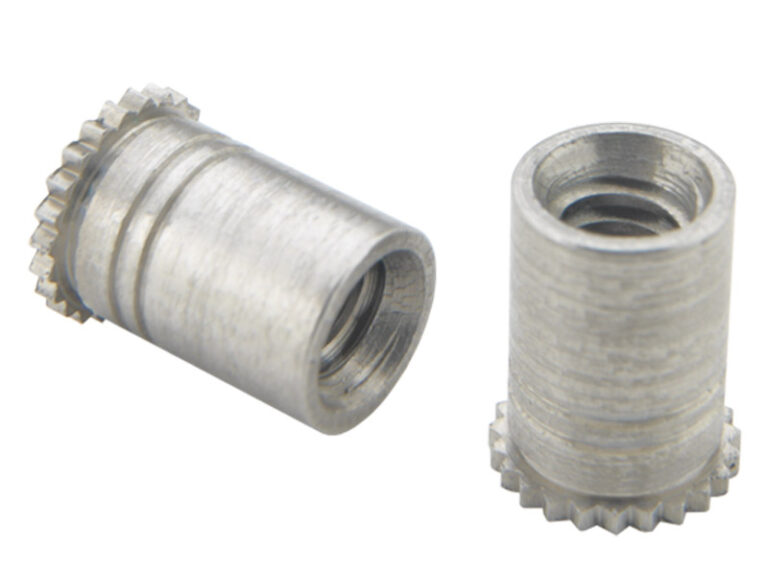

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.
Types DSO and DSOS standoffs are available for close-to-edge applications.
If you require a standoff which we do not offer in this bulletin, please contact us. We will be happy to work with you to satisfy your special need.
Available in other lengths on special order.
Specifications
- Gewinde Code
- M3
- Thread Size
- M3 x 0,5
- Thread Specification
- 6H, ANSI/ASME B1,13M, Intern
- Fastener Material
- 300er Edelstahl
- Material Code
- S
- Standard Finish
- Passiviert und/oder geprüft, Passiviert und/oder geprüft nach ASTM A380
- For Use in Sheet Hardness
- HRB 70 / HB 125 or Less
- Length Code
- 7
- Product Category
- Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103735
- Application Type
- Luft- und Raumfahrt, Automobil, Kfz-Elektronik, Nutzfahrzeuge, Datenkommunikation, Ladegeräte für Elektrofahrzeuge, Elektrofahrzeuge, Elektronik, Industriell, Fertigung; Blechverarbeitung, Marine, Medizinisch, Erneuerbare Energie, Telekommunikation
- Base Panel Material
- Aluminium, Wasserdichtheit
- Brand
- PEM
- Fastener Characteristics
- Kantennah, Außengewinde
- Industry
- Kfz-Elektronik, Datacom und Telekommunikation, Elektrofahrzeuge, Industriell; Kommerziell, Medizinisch
- Installation Equipment/Method
- C-Frame Automatischer Vorschub / Feed, C-Rahmen Manueller Vorschub / Feed
- PEM Product Family
- SO
- Product Type
- Abstandshalter
- Technology Type
- Selbst-einpressend
- Unit (Metric/Unified)
- metrisch

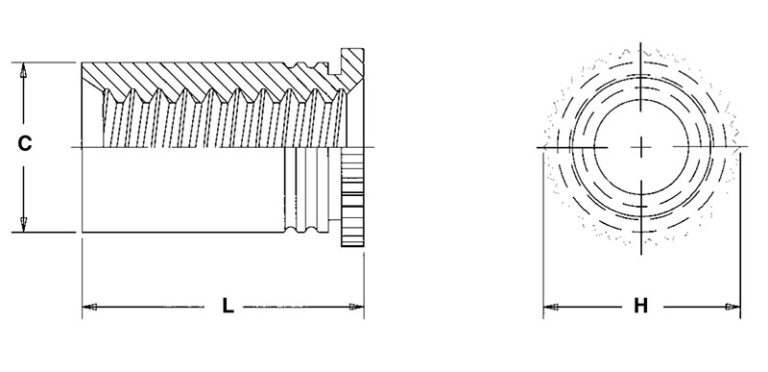

- H Nom._mm
- 4.92mm
- Hole Size in Sheet + 0.08_mm
- 4.22mm
- L + 0.05 -0.13_mm
- 7.00mm
- Min. Dist. Hole C/L to Edge_mm
- 3.20mm
- C Max._mm
- 4.2mm
- Sheet Thickness
- 0.94 to 6.35
Resources
Installation & Performance Data
TYPE | THREAD CODE | MAX. REC. TIGHTENING TORQUE FOR MATING SCREW (in. lbs.) | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N-m) | PULL-THRU (N) |
---|---|---|---|---|---|---|---|
DSOS, DSO | M3 | 0.44 | 1 mm 5052-H34 Aluminum | 3.1 | 223 | 1.1 | 1422 |
DSOS, DSO | M3 | 0.44 | 1 mm Cold-rolled Steel | 4.9 | 334 | 1.1 | 1587 |
