IUTFB-M6
Heat Staking Insert, Symmetrical, Thru-Threaded
IUTFB-M6
Heat Staking Insert, Symmetrical, Thru-Threaded
- Provides larger surface area and high pullout in reverse entry applications.
- Self-aligning lead-in provides accurate alignment prior to installation.
- Aluminum and stainless steel available upon request.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
Specifications
- Gewinde Code
- M6
- Thread Size
- M6 x 1
- Thread Size X Pitch
- M6 x1
- Thread Specification
- 6H per ASME B1,13M
- Fastener Material
- Messing
- Standard Material
- Brass
- Product Category
- Heat Staking Insert, Flanged, Straight Wall, Thru-Threaded
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 121615
- Thread Type
- IUTFB
- Base Panel Material
- Kunststoff
- Brand
- SI
- Fastener Characteristics
- Außengewinde
- Installation Equipment/Method
- Wärmebehandlung/Ultraschall
- PEM Product Family
- SI
- Product Type
- Einsätze
- Technology Type
- Gewindeinsätze für Kunststoff
- Unit (Metric/Unified)
- metrisch

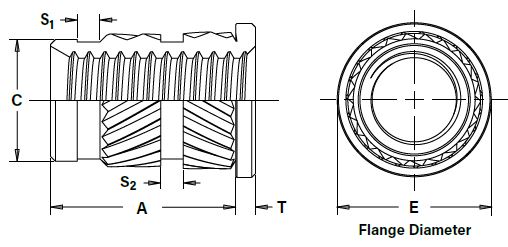

- A ± 0.13_mm
- 12.7mm
- C ± 0.13_mm
- 7.87mm
- E ± 0.13_mm
- 9.53mm
- Hole Dia. + 0.08_mm
- 8.03mm
- Min. Hole Depth_mm
- 13.46mm
- S1 Nom._mm
- 1.58mm
- S2 Nom._mm
- 1.17mm
- T ± 0.13_mm
- 1.27mm
