SMPP-M3.5
Nuts for Ultra-Thin Sheets – Type SMPP
SMPP-M3.5
Nuts for Ultra-Thin Sheets – Type SMPP

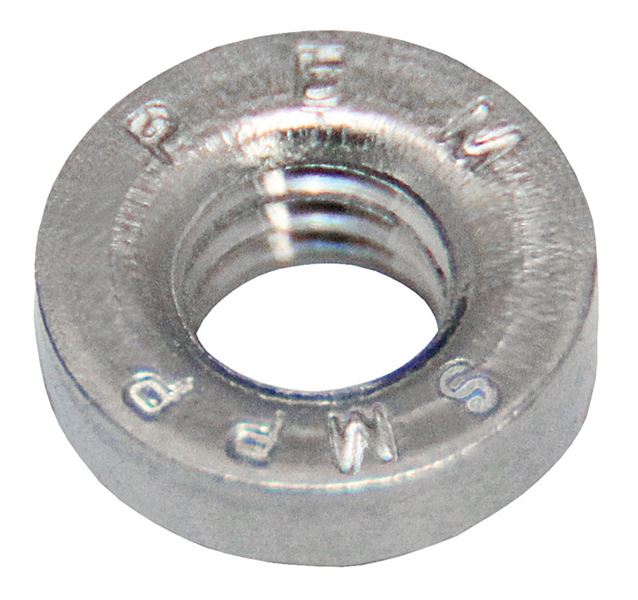

Type SMPP self-clinching nuts are for installation into ultra-thin sheets.
- Installs into stainless steel sheets as thin as 0.64 mm.
- Corrosion resistance similar to 300 series stainless steel.
- Reduced outer dimensions and thinner sheet capabilities compared to type SP thread sizes.
- Recommended for use in stainless steel sheets HRB 90 / HB 192 or less.
Specifications
- Gewinde Code
- M3.5
- Thread Size
- M3.5 x 0.6
- Thread Size X Pitch
- M3,5 x 0,6
- Thread Specification
- 6H, ASME B1,13M, Intern
- Fastener Material
- Ausgehärteter A286-Edelstahl
- Standard Finish
- Passiviert und/oder geprüft, Passiviert und/oder geprüft nach ASTM A380
- For Use in Sheet Hardness
- HRB 90 / HB 192 or Less
- Product Category
- Nuts for Ultra-Thin Sheets – Type SMPS, SMPP
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103687
- Application Type
- Automobil, Kfz-Elektronik, Datenkommunikation, Ladegeräte für Elektrofahrzeuge, Elektrofahrzeuge, Industriell, Telekommunikation
- Base Panel Material
- Aluminium, Stahl, Wasserdichtheit
- Brand
- PEM
- Fastener Characteristics
- Kantennah, Außengewinde
- Industry
- Kfz-Elektronik, Datacom und Telekommunikation, Industriell; Kommerziell, Medizinisch
- Installation Equipment/Method
- C-Frame Automatischer Vorschub / Feed, C-Rahmen Manueller Vorschub / Feed, Vollautomatische Verarbeitung
- PEM Product Family
- CL, SS
- Product Type
- Muttern
- Technology Type
- Selbst-einpressend
- Unit (Metric/Unified)
- metrisch

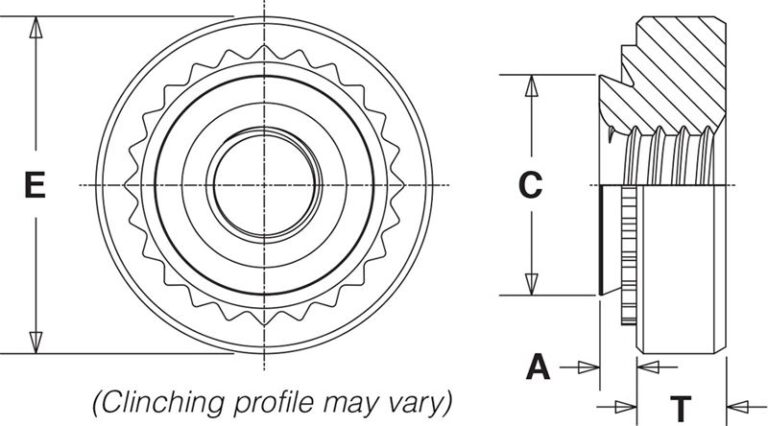

- A Shank Max
- 0.61mm
- E ± 0.25_mm
- 6.4mm
- Hole Size in Sheet + 0.08_mm
- 4.75mm

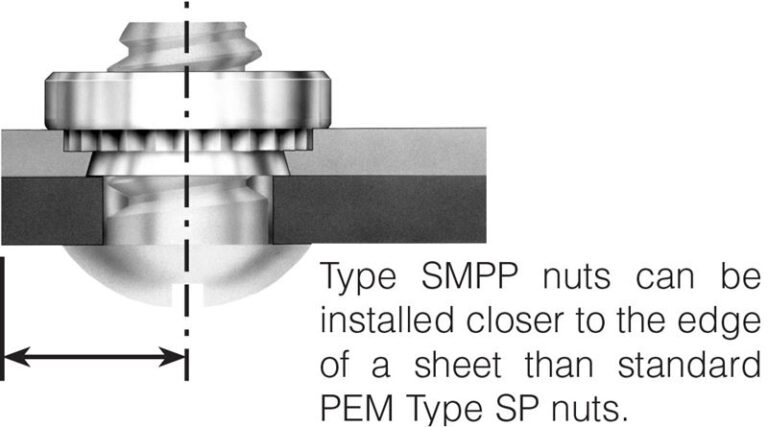

- Min. Dist. Hole C/L to Edge_mm
- 5.5mm
- Min. Sheet Thickness_mm
- 0.64mm
- C Max._mm
- 4.73mm
- T ± 0.25_mm
- 1.4mm
Resources
Installation & Performance Data
| TYPE | THREAD CODE | TEST SHEET MATERIAL (in.) | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N•m) | |||
|---|---|---|---|---|---|---|---|---|
| SMPP | M3.5 | 0.7 mm 304 Stainless Steel HRB 89 | 27 | 300 | 1.9 |
| TYPE | THREAD CODE | MAX. NUT TIGHTENING TORQUE (N•m) | TEST SHEET MATERIAL | SHEET HARDNESS HRB | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N•m) | TENSILE STRENGTH (kN) | TEST BUSHING HOLE SIZE PULL THRU SIZE TESTS (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SMPP | M3.5 | 2.1 | 0.7 mm 304 Stainless Steel | 89 | 27 | 300 | 1.9 | 4.25 | 4 |
