Installation Equipment
PEM® offers a full system solution for installing our products.
Today PennEngineering® offers the most comprehensive line of automatic and manual machines and in-die installation systems designed to safely, reliably, accurately, and quickly install the complete range of PEM® fasteners.
Fastener Installation Machines

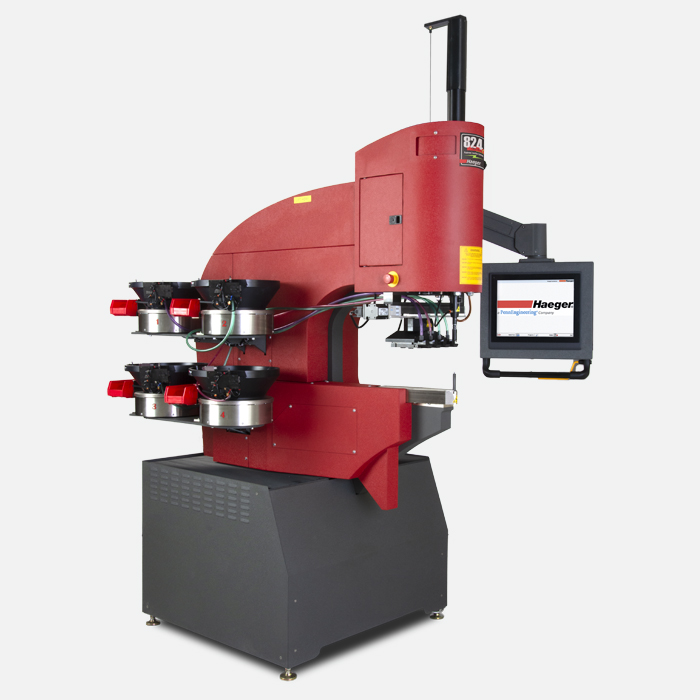

Haeger® 824™ OneTouch™ 5e
- 4 Station Automatic Lower Tool Changer
- 4 Station Automatic Upper Tool Changer
- Fast & Easy Tooling Setup
- Easy Programming
- Energy Saving

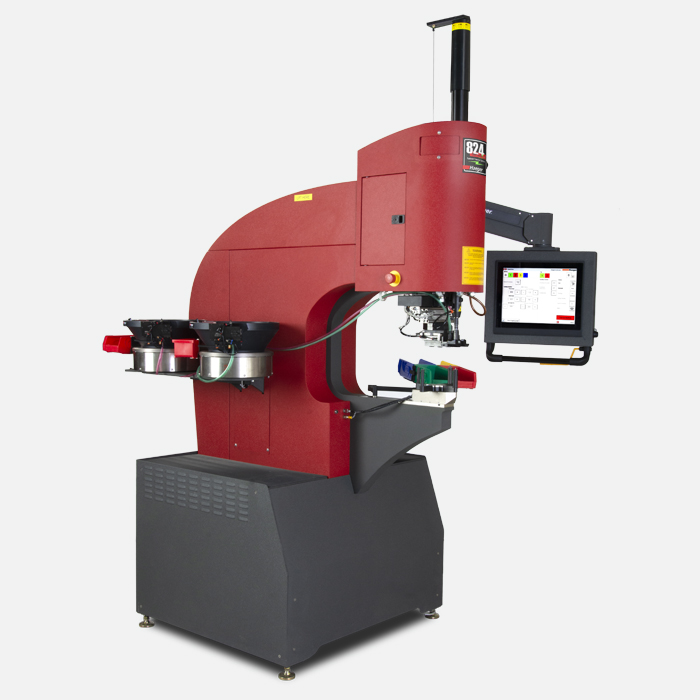

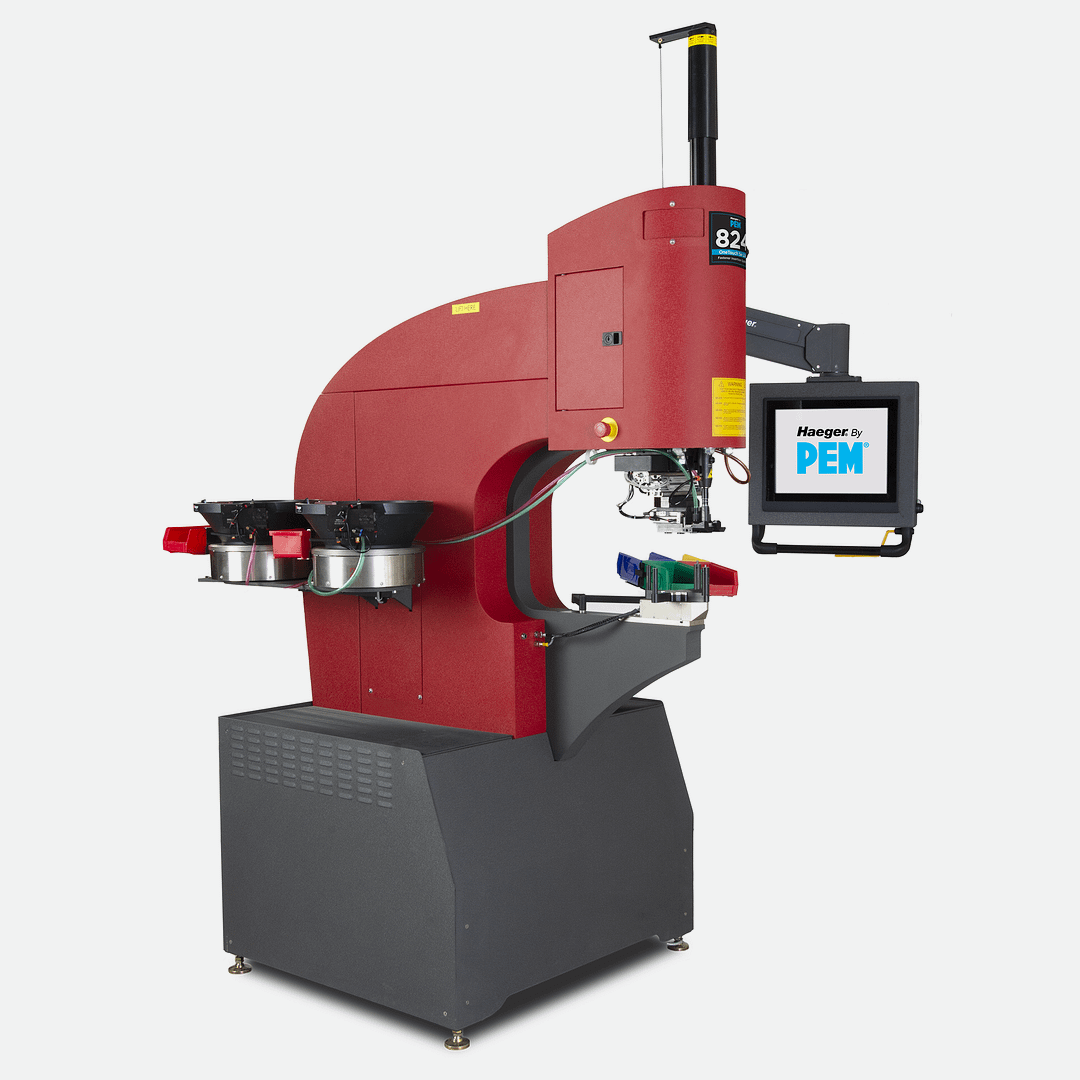

Haeger® 824™ OneTouch™ 5e LITE
- Faster Tooling Setup
- Faster Programming
- Best Operator Ergonomics
- 2 Automatic Upper Stations
- Energy Saving
Haeger® 824™ WindowTouch® 5e
- Faster Tooling Setup
- Best workpiece accessibility
- Faster Programming
- Best Operator Ergonomics
- Energy Saving

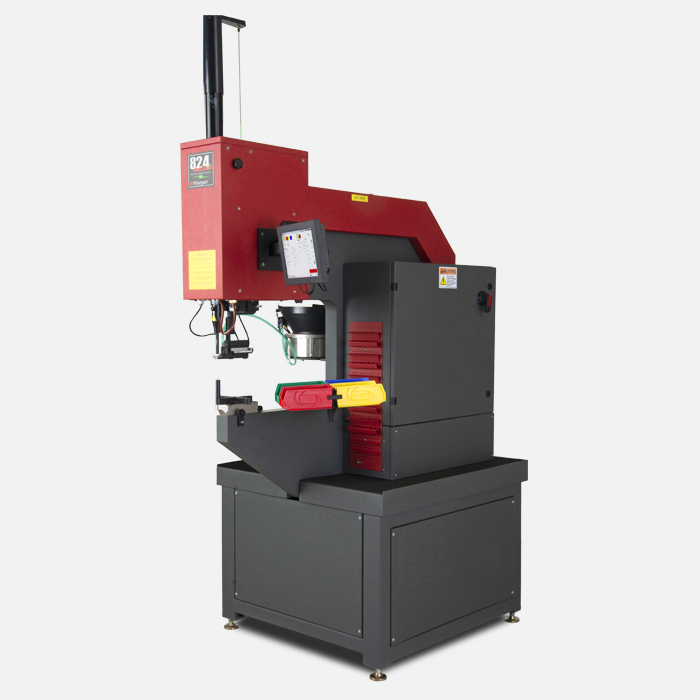

Haeger® 824™ MSPe
- 72kN (8 ton) ram force and 24 inch throat depth
- Energy Efficient
- Patented Safety System
- Tooling Protection System and Batch Counter

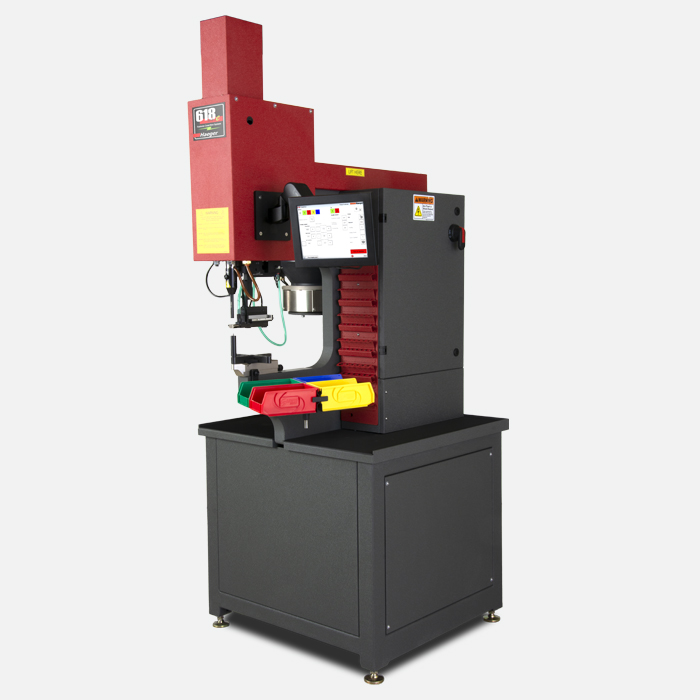

Haeger® 618™ MSPe
- 53kN (6 ton) ram force and 18 inch throat depth
- Energy Efficient
- Patented Safety System
- Tooling Protection System and Batch Counter
PEMSERTER® Series 4® Machine
- 53kN (6 ton) installation force
- Large 18" throat depth
- 100% pneumatic with short cycle time for increased productivity
- Requires shop air only

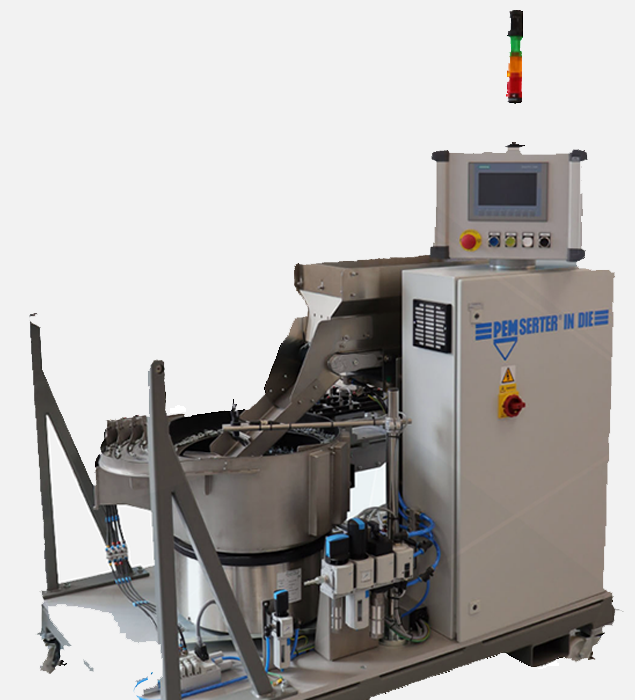

PEMSERTER® NextGen In-Die
- Reduction of the total installation cost. Fasteners are installed in the primary stamping process and any secondary operations are eliminated
- Reducing work in process (WIP) and boosting throughput
- Moving to zero quality costs during the stamping process. Fasteners' presence is verified at various stages during installation
- Reduced capital expenditure (CAPEX)

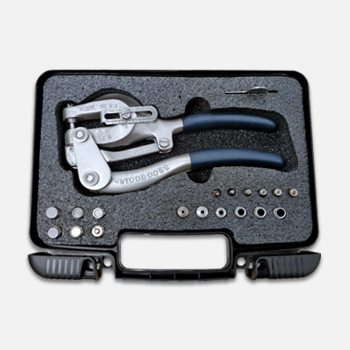

PEMSERTER® MICROMATE® Hand Tool
- Equipped with punches and dies to punch fastener mounting holes in metal sheets
- Changes to flat punch and recessed anvil to easily install unified or metric self-clinching nuts
- Ideal for prototype shops or short production runs
Tooling Resources
Haeger® Tooling
PEMSERTER® Tooling
Installation Selector Guide
| Installation Equipment | Max. Force | Throat Depth |
|---|---|---|
| Automatic Feed | ||
| Haeger® 824™ OneTouch™ 5e | 72kN (16,000 lbs.) | 61cm (24") |
| Haeger® 824™ OneTouch™ 5e LITE | 72kN (16,000 lbs.) | 61cm (24") |
| Haeger® 824™WindowTouch® 5e | 72kN (16,000 lbs.) | 61cm (24") |
| Haeger® 824™ MSPe | 72kN (16,000 lbs.) | 61cm (24") |
| Haeger® 618™ MSPe | 53kN (12,000 lbs.) | 45,7cm (18") |
| Manual Feed | ||
| PEMSERTER® Series 4® Machine | 53kN (12,000 lbs.) | 45,7cm (18") |
| Handheld | ||
| PERSERTER® MICRO-MATE® Tool | 2kN (5,000 lbs.) | 4,5cm (1,75") |
