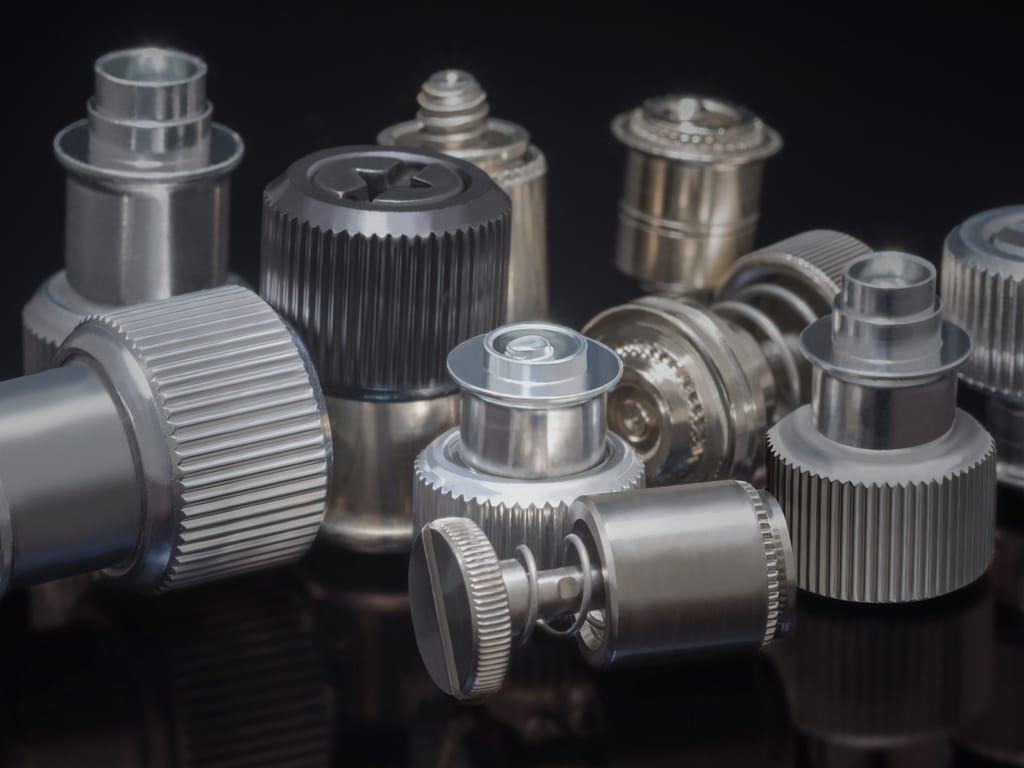

Captive panel fasteners are ideal to attach metal panels or other thin material components in applications where subsequent access will be necessary.

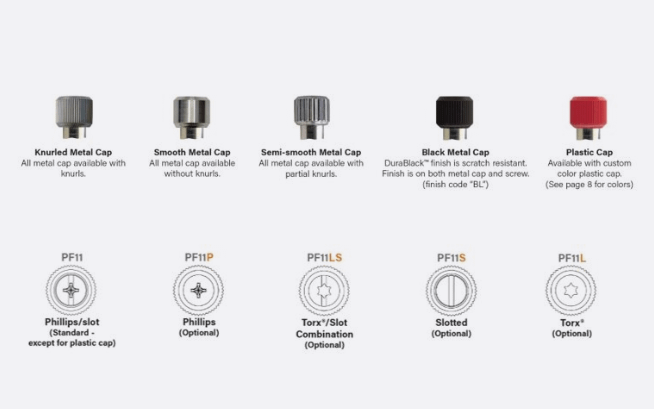

Graphics and illustrations of PF11, PF12, PF15, PF11MW Panel Screws

PF11™, PF12™, PF15™, PF11MW™, PEM C.A.P.S.® Captive Panel Screws

  • Available in three installation types: Self-clinching, Flare-mounted, Floating
  • All have the same profile or look above the sheet or panel
  • Standard selection of knobs include knurled, semi-smooth or smooth metal caps and plastic OEM C.A.P.S.® (Colored Access Panel Screws)
  • Shoulder on retainer to provide positive stop during installation
  • Anti cross-threading feature (designated with an “M” in the part number). Eases assembly, aligns components, improves assembly line productivity, prevents jamming, and slides through clogged internal threads

Use Cases

High-end server

PEM® Solution

PF12M™ with special retainer

Description

The special PF12M™ is used in what was the most expensive router. The retainer is capable of installing into a cast stainless material. The added convenience of the MAThread® anti cross-threading feature provided a value-added option that the competition did not offer.

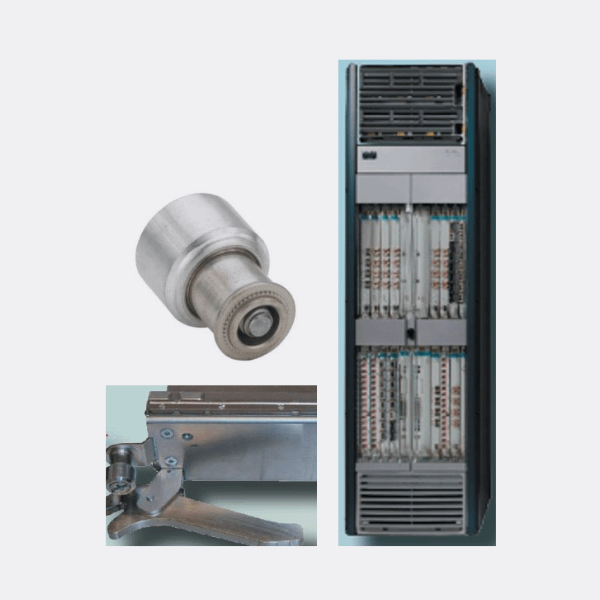

Photo of a High-End Server and Panel Screw

CT Scanner Cover

PEM® Solution

PF11MW™

Description

For the assembly of a large hatch, PF11MW floating panel fasteners are used to compensate for misalignment. Panel dimensions are 1200 x 500 mm and a gasket is used. The “floating” and MAThread® features eliminate the risk of cross-threading.

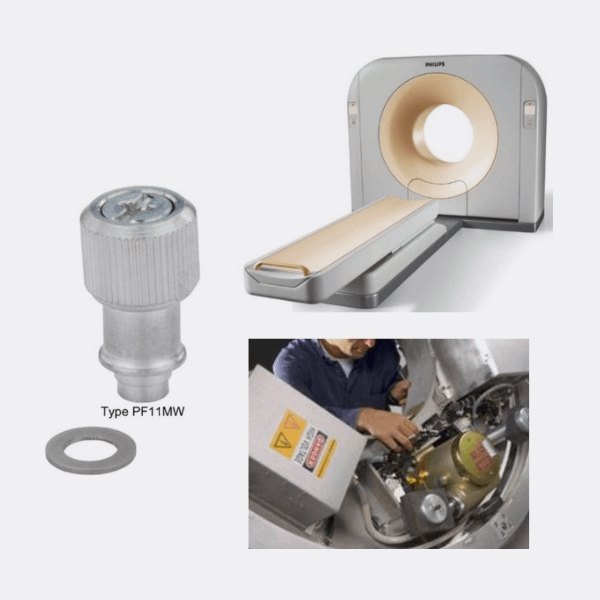

Photo of CT scanner cover and maintenance of CT scanner

Mobile cashbox for buses

PEM® Solution

PF11M™

Description

This cashbox required quick mounting and dismounting during the changeover. The PF11M provided the known convenience of the MAThread feature to prevent any risk of cross-threading.

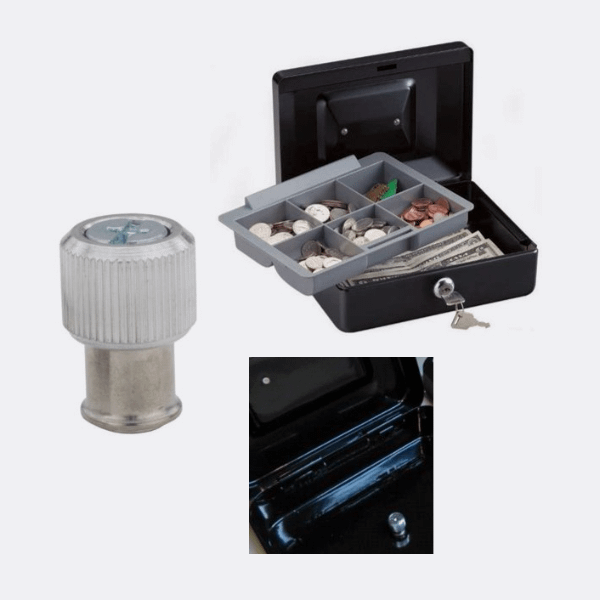

Photo of mobile cashbox with detail on panel screw

Elevator control unit

PEM® Solution

PF11™

Description

The PF11 enables this customer to easily exchange the control unit as fast as possible when an electronic problem arises. With this solution, the repair time is reduced versus the loose hardware they previously used, and there is no risk of dropped and lost fasteners.

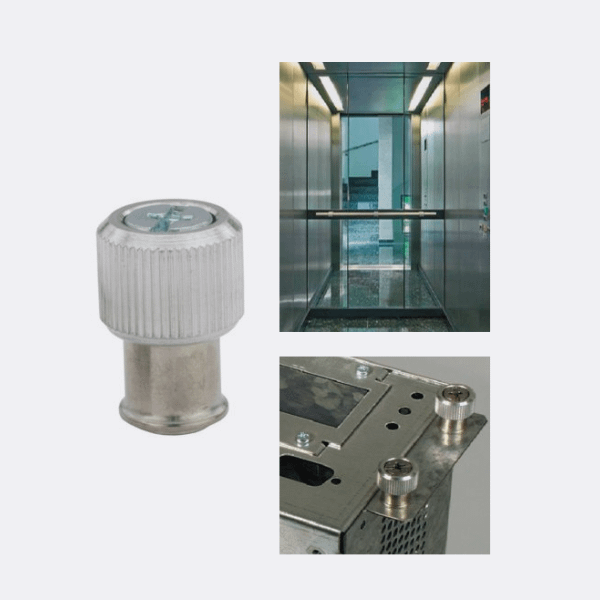

Photo of elevator control unit using panel screws

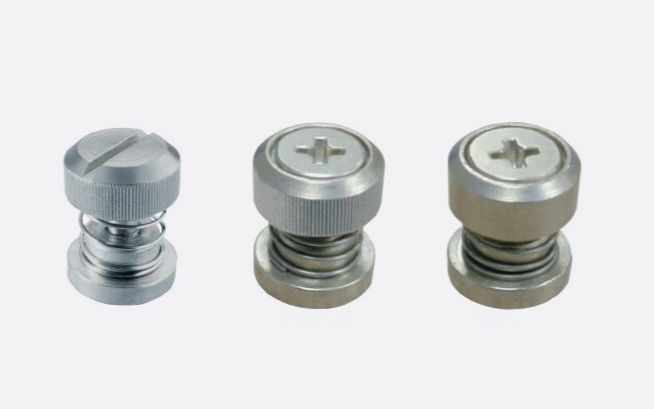

Photo of PF30, PF50, and PF60 Panel Screws

PF30™, PF50™, and PF60™ Captive Panel Screws

  • Low-profile design satisfies many functional and cosmetic requirements
  • Convenient large head for tool or hand operation
  • PF50/PF60 are available with Torx® recess and MATthread®

Use Case

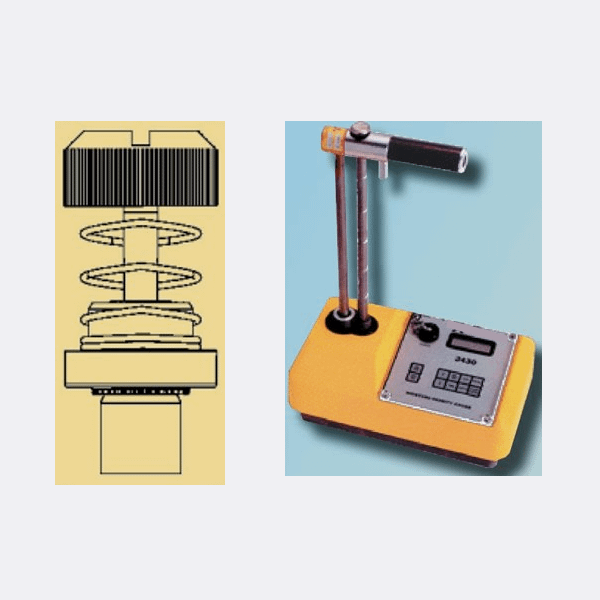

Graphic of Concrete density gauge
Industrial

Concrete density gauge

PEM® Solution

PF30™

Description

This customer manufactures gauges that measure the density of poured concrete. These gauges are used outside at construction sites and therefore require a tight environmental seal. The previous design would sometimes allow over-compression of the gasket, and moisture would then enter the gauge. This extended shank of this special PF30 prevents the over tightening of the assembly and allows the gasket to function properly.

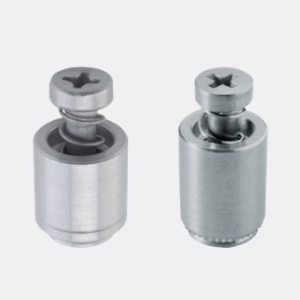

Photo of PFC4 and PFC2P Panel Screws

PFC4™ and PFC2P™ Recessed-Head Captive Panel Screws

  • Fully concealed-head for tool only access
  • Comply with UL 60950 standards
  • Available with MAThread® anti cross-thread technology
  • Available with Torx® recess
  • PFC4 installs into stainless steel sheets HRB 88 or less
Photo of PFC2 and PFS2 Panel Screws

PFC2™ and PFS2™ Captive Panel Screws

  • Spring-loaded panel fastener for tool or hand operation
  • Screw assemblies remain captive for each mounting and removal

Use Case

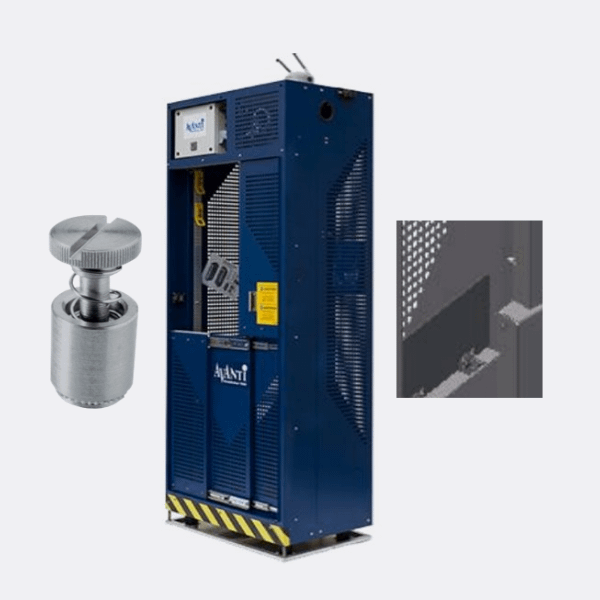

Photo of Elevator Maintenance Access
Industrial

Cover for elevator maintenance access

PEM® Solution

PFC2™

Description

Customer wanted to improve the access for maintenance inside of a wind turbine service elevator. PFC2™ panel fasteners avoid using loose parts and improve speed to open the cover on the elevator maintenance area.

Photo of PF7M and PF7MF panel screws

PEM® PF7M™ and PF7MF™ Captive Panel Screws

  • Smallest footprint, spring-loaded panel fastener for limited access applications
  • MAThread® anti cross-thread technology
  • Installs flush on back side of panel
  • Available with Torx® recess
  • PF7M
    • Self-clinching style provides high pushout resistance
    • Does not require special hole preparation
  • PF7MF
    • Appropriate for close centerline-to-edge applications
    • Does not require high installation force
    • Installs into any panel hardness

Use Case

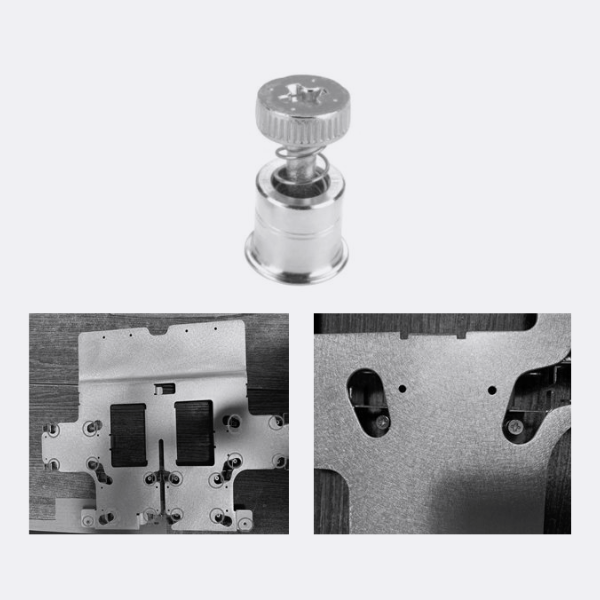

Detailed photo of a server heat sink
Telecom/Datacom

Server heat sink

PEM® Solution

PF7MF™ and B-nut

Description

This customer needed the smaller size of this PF7MF, and the convenience of the MAThread® feature, to improve their heat sink.

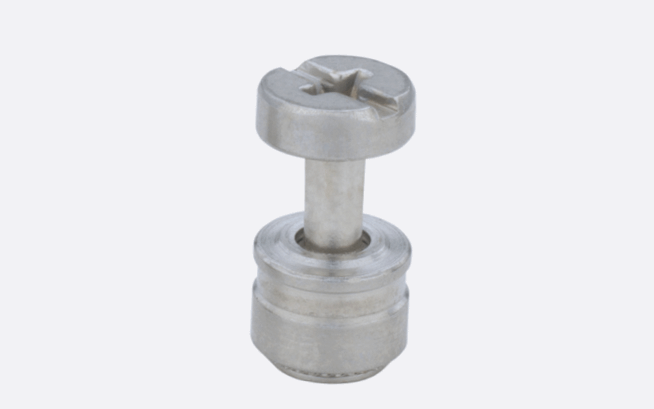

Photo of PFHV panel screw

PEM® PFHV™ Captive Panel Screws

  • Compact, low profile design for limited access applications
  • Low-cost captive screw design to replace loose hardware
  • Two screw lengths
  • Universal slot/Phillips recess standard with available Torx® recess
  • Available with MAThread® anti cross-thread technology

Use Case

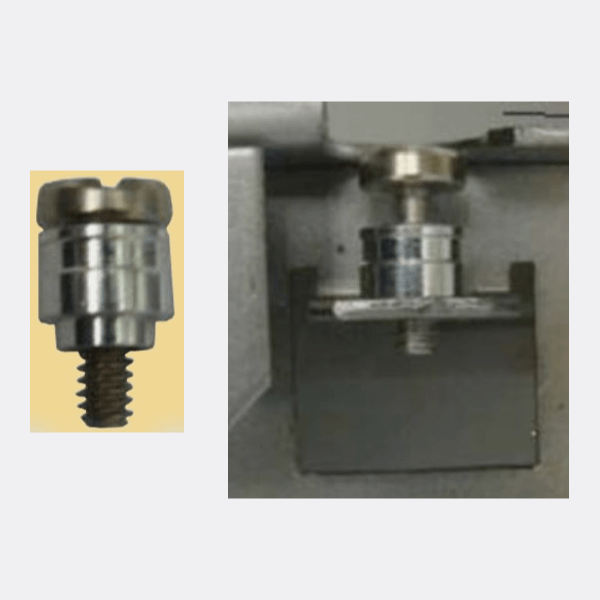

Photo of a network platform part using a PFHV panel screw
Telecom/Datacom

Optical network platform

PEM® Solution

PFHV™ with special flaring retainer

Description

This customer needed a small panel fastener that could accommodate a centerline-to-edge distance of .140”. A standard PFHV-440 part was redesigned with a flae style retainer.

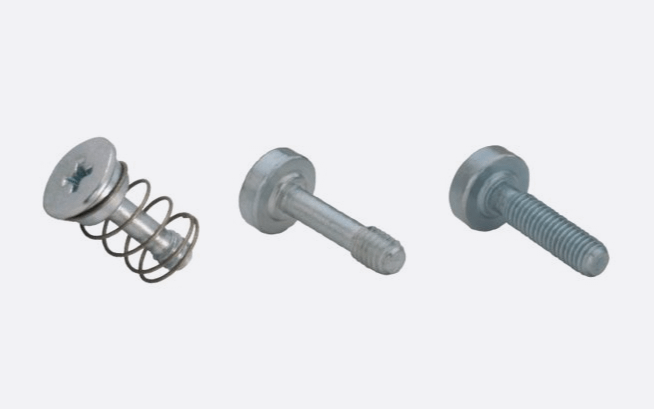

Photo of SCBR, SCB, SCBJ panel screws

PEM® SCBR™, SCB™, SCBJ™ Captive Panel Screws

  • Permanently captivates into sheets as thin as .040” / 1.02mm
  • Lowest cost captive screw design to replace loose hardware
  • Available with self-retracting SCBR, axial float SCB or jacking feature SCBJ
  • Appropriate for close centerline-to-edge applications

Use Cases

Charging station enclosure

PEM® Solution

SCB™

Description

Because of the high voltage involved, engineers of this electric car charging station were concerned about loose hardware issues. The SCB is being used to hold the top cover plate in place.

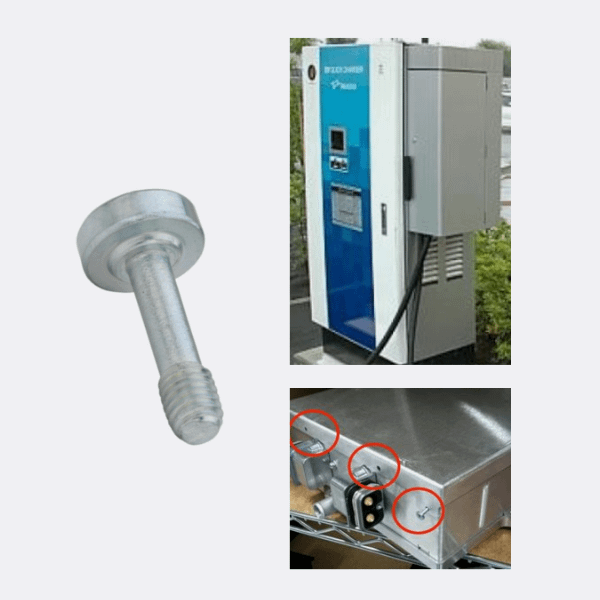

Photo of a charging station

Aluminum electronics cover

PEM® Solution

SCB™

Description

Customer requested a captivated fastener for this automotive applications (18 per application). Direct support of Tier 1/Tier 2 sheet metal fabricator led to the SCB-type fastener selected to replace loose screws.

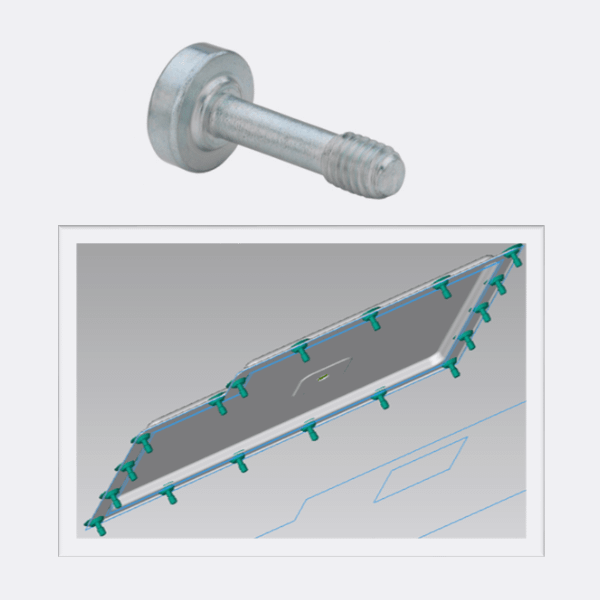

Graphic of an electronics cover using SCB panel screw

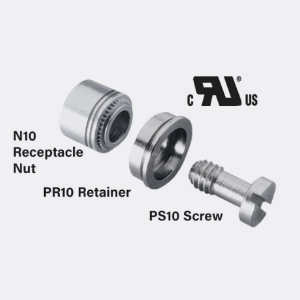

Graphic of PF10 panel screw

PEM® PF10™ Flush-Mounted Captive Panel Screws

  • PF10 assembly sits flush in sheets as thin as .050” / 1.27mm or flush on both sides in .125”. 3.2mm sheets
  • PS10 screw remains captive in retainer when disengaged
  • PR10 retainer and F10 receptacle nut is for use in sheets of HRB 70 or less
  • N10 nut is for use in sheets of HRB 80 or less
  • Complies with UL 60950 standards
Graphic of PTL2 and PSL2 panel screw

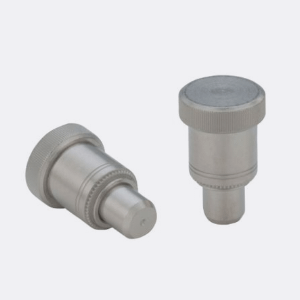

PEM® PTL2™ and PSL2™ Spring=Loaded Plunger Assemblies

  • Positioning pins for sliding components such as drawer slides and equipment consoles
  • Fast installation and removal of components
  • Reverse side of sheet is flush when plunger is retracted
  • PTL2 has quick lockout feature to hold plunger in fully retracted position (Available as PSL2 without lockout feature on special order)
  • For use in sheets of HRB 80 or less

Use Cases

Medical Equipment Mount

PEM® Solution

PSL2™

Description

This universal mount can share a variety of instrument displays. Previously, a hook and knob system was used. The PSL2 was chosen as the replacement because it allowed for quicker assembly and disassembly, with no loose hardware.

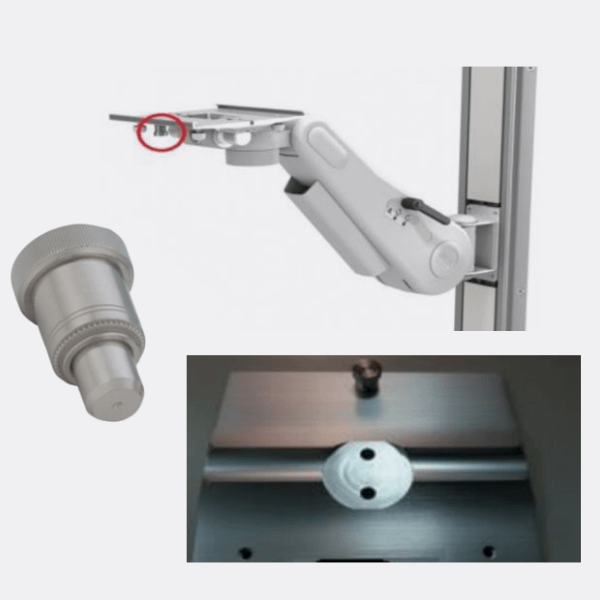

Photo and graphic of PSL2 panel screw in medical equipment

Modular furniture

PEM® Solution

PTL2™

Description

The quick lockout feature of these plungers holds the pin in the retracted position, and once the furniture component is assembled into position, it can be quickly snapped into place.

And for disassembly, simply retract the plunger.

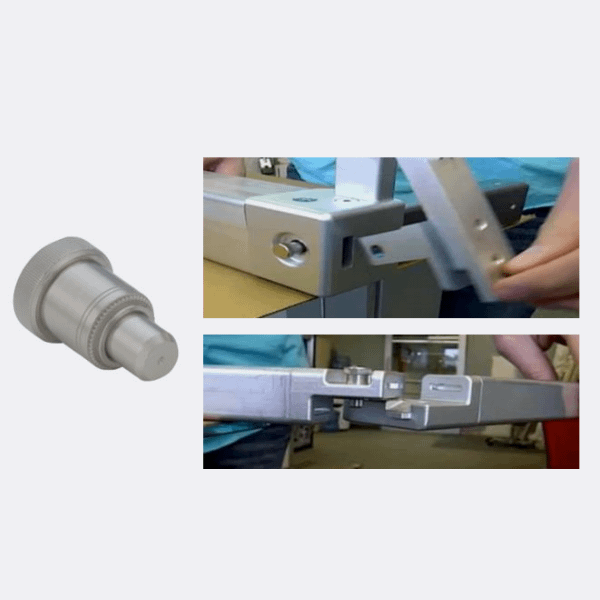

Photo of furniture installation using PTL2 panel screw
Graphic of SMTPFSLM panel screw

REELFAST® SMTPFLSM™ Surface Mount Captive Panel Screws

  • All metal captive screw assembly installs in one piece utilizing pick and place method
  • Combination drive, Torx® slot
  • Solderable finish

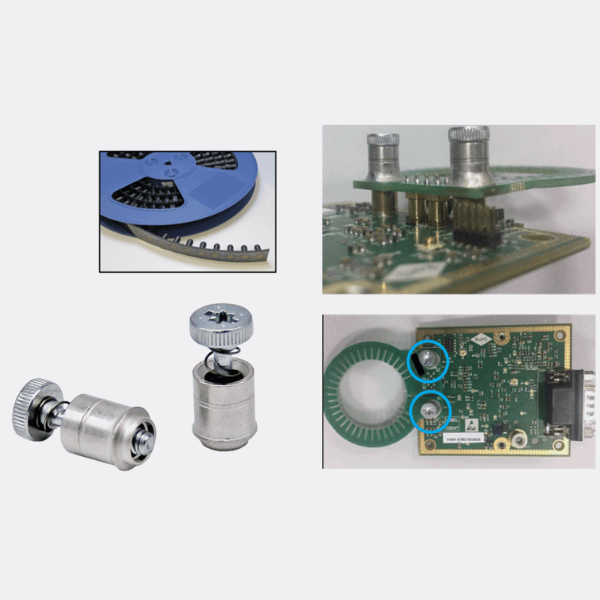

Photo of CT Scanner PC Board using SMTPFLSM and SMTSOB panel screws
Medical

CT Scanner

PEM® Solution

SMTPFLSM-M3-0ET plus 3 other SMTSOB™ part numbers

Description

The ReelFast® SMTSO standoff was chosen to space the two PC boards apart from each other, and the SMTPFLSM™ panel fastener was chosen to enable their convenient removal and reassembly.

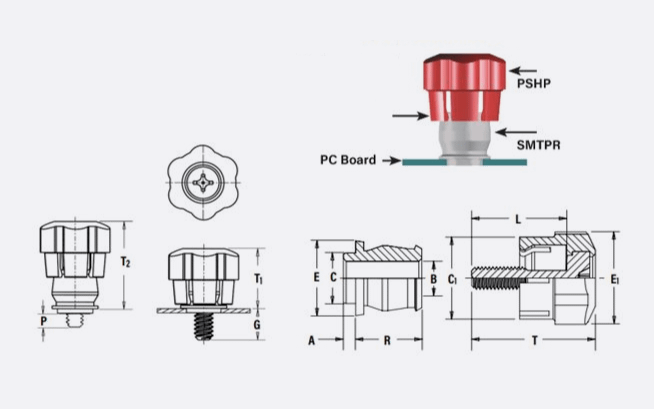

Graphic of SMTPF panel screw

REELFAST® SMTPF™ Surface Mount Captive Panel Screws

  • Retainer installed using conventional surface mount techniques
  • Simply snap screw into a retainer to complete assembly
  • Black ABS knob standard
  • Optional molded-through colors are available
  • Available with Torx® recess
  • Retainer: Packaged on 330mm recyclable reels of 400 pieces. Tape width is 24mm. Supplied with Kapton® patch for vacuum pick up. Reels conform to EIA-481.
  • Screw: Packaged in bags. Retainers and screws are sold separately.

Use Case

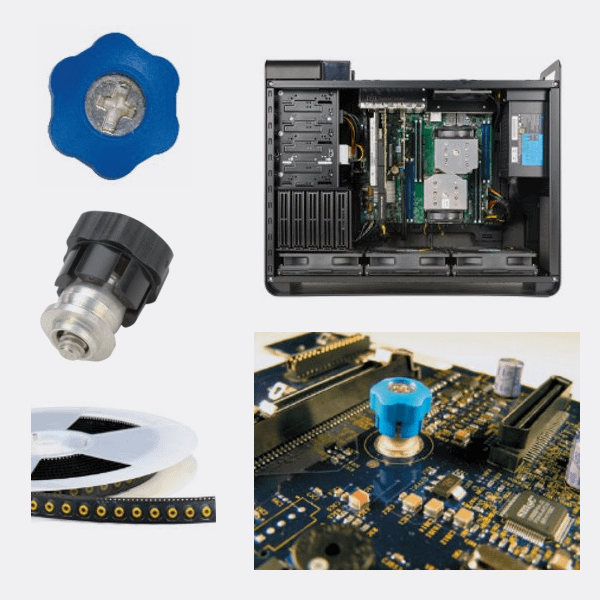

Photo of CT Scanner motherboard using SMTPF panel fastener
Telecom/Datacom

CT Scanner

Workstation motherboard

SMTPF™ Panel Fastener

Description

The ReelFast® SMTPR-6-1ET and the PEM® PSHP-632-0L422 components are combined to produce a surface-mounted panel fastener in the customer’s trademark color. This replaced the competition’s metal snap-in panel fastener, as potential board damage has caused them to look for fasteners that are installed without applying pressure to the PC boards.
