CKS-M3-2

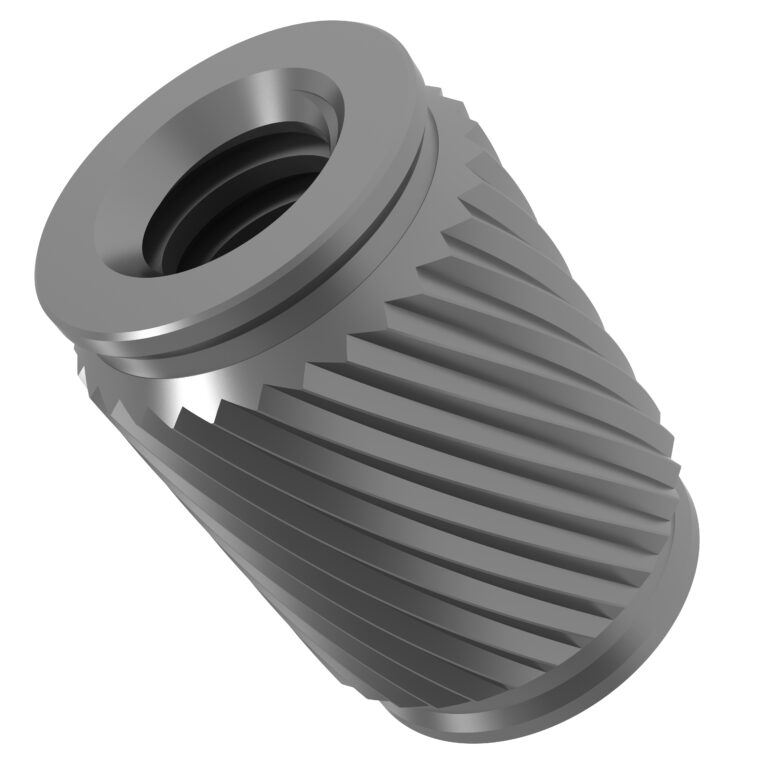

PEM® CASTSERT® Press-in Inserts
CKS-M3-2
PEM® CASTSERT® Press-in Inserts
CASTING INSERT STAINLESS
Specifications
- Thread Code
- M3
- Thread Size
- M3 x 0.5
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- For Use in Castings and Soft Metals HRB 70 / HB 125 or Less
- Product Category
- PEM® CASTSERT® Press-in Inserts – Metric
- Thread Type
- Internal

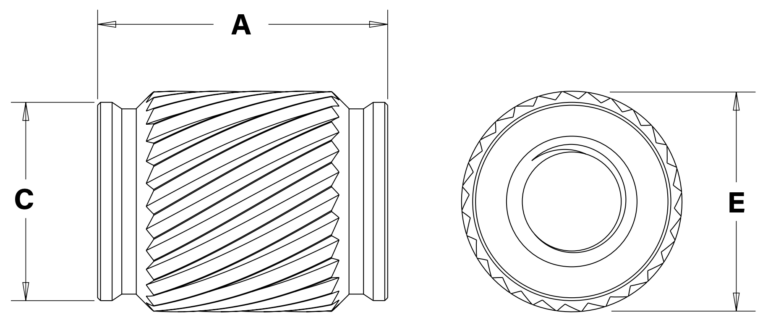

- After Knurl E Nom_mm
- 5.79mm
- Brand
- PEM
- Length A ± 0.13_mm
- 7.62mm
- Min. Sheet Thickness R_mm
- 7.75mm
- Min Dia H of Tapered Hole at Length R (mm)
- 5.33
- PEM Product Family
- CKS
- Pilot C Max._mm
- 5.31mm
- Product Type
- Inserts
- Min. Dist. Hole C/L to Edge_mm
- 4.44mm
Installation & Performance Data
| Type | Thread Code | Haeger Part Number Anvil | Haeger Part Number Punch | Test Sheet Material | Anvil Dim A (mm) | Anvil Dim B (mm) | Anvil Dim C (mm) | Installation (kN) | Length Code | Pullout (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| CKS | M3 | H-108-0020L | H-108-0020L | ADC12 Die Cast Aluminum (A383 Equivalent) | 76.2 | 63.5 | 25.4 | 7.2 | 2 | 660 |
