PKB-032

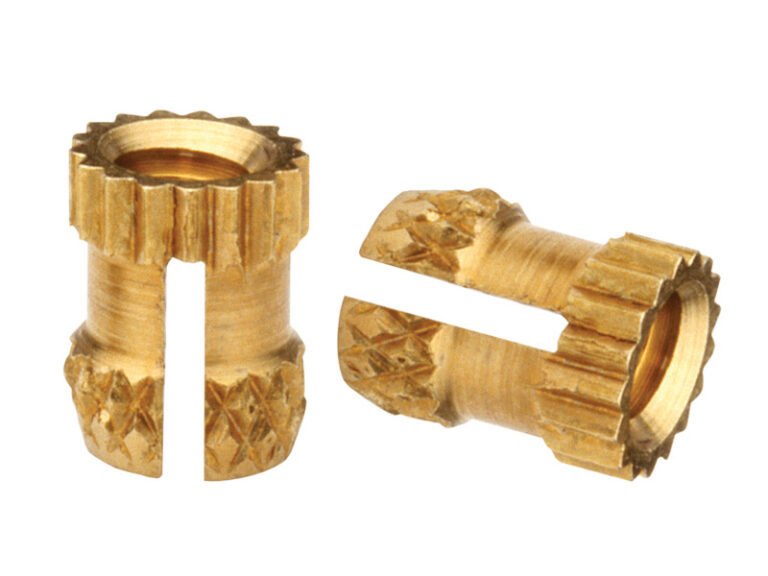

Press-in Threaded Inserts, Straight Knurl
PKB-032
Press-in Threaded Inserts, Straight Knurl
- Press-fit insert with strong, reusable threads. No heat or ultrasonics required.
- Straight knurling at the top end of the insert offers higher torsional resistance.
- Slotted insert compresses allowing easy access into the mounting hole.
- Aluminum inserts ideal for light weight designs.
- Aluminum inserts offer lead-free alternative.
Specifications
- Thread Code
- 032
- Thread Size
- #10-32
- Thread Specification
- 2B per ASME B1.1
- Fastener Material
- Brass
- Standard Material
- Free-machining, Leaded Brass
- Standard Finish
- No Finish, Plain
- Product Category
- Press-in Threaded Inserts, Straight Knurl
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 103809
- Thread Type
- PKB
- Base Panel Material
- Plastic
- Brand
- SI
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Press-In
- Product Type
- Inserts
- Technology Type
- Inserts for Plastics
- Unit (Metric/Unified)
- Unified

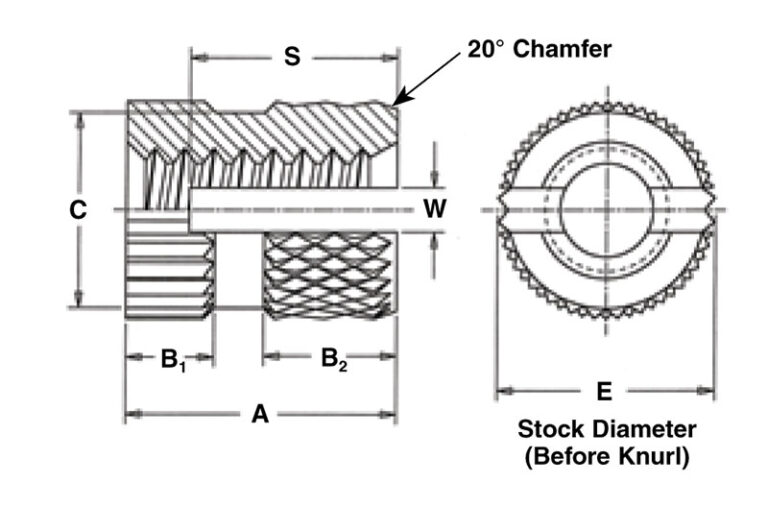

- A ± .005_in
- .375in
- B1 ± .010_in
- .112in
- B2 ± .010_in
- .158in
- C ± .010_in
- .234in
- E Nom._in
- .250in
- Hole Dia. ± .002_in
- .250in
- Min. Hole Depth_in
- .415in
- S Nom._in
- .280in
- W ± .015_in
- .062in
