PR10-M3

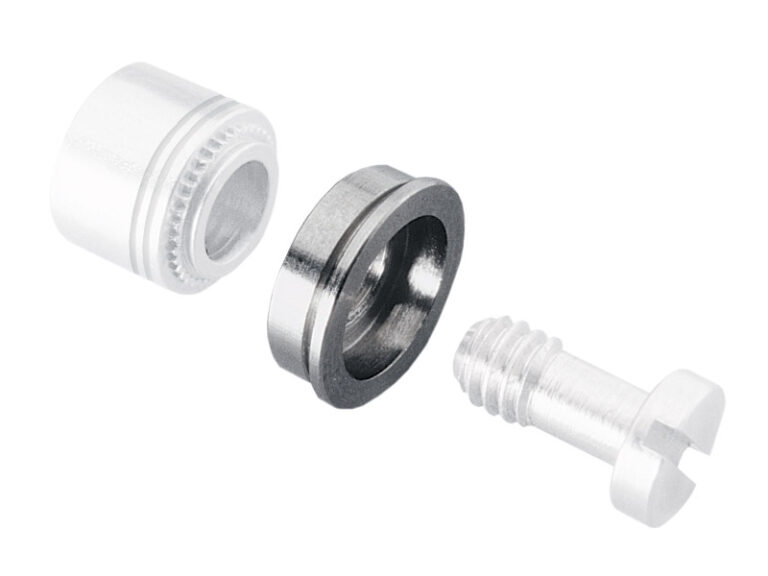

PR10 Self-Clinching Flush-Mounted Retainers

PR10-M3

PR10 Self-Clinching Flush-Mounted Retainers

Specifications

Thread Code
M3
Thread Size
M3 x 0.5
Thread Size X Pitch
M3 x 0.5
Thread Specification
6H, ANSI/ASME B1.13M
Fastener Material
300 Series Stainless Steel
Material
300 Series Stainless Steel
For Use in Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Product Category
PR10 Self-Clinching Flush-Mounted Retainers
CAD Supplier
PennEngineering® (PEM®)
CADPartID
103765
Thread Type
PR10
Application Type
Automotive Electronics, Datacom, Industrial, Medical, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Threaded Internal
Finish Type
Passivated and/or tested per ASTM A380
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial
Installation Equipment/Method
C-Frame Manual Feed
PEM Product Family
PF
Product Type
Panel Fasteners
Technology Type
Self-Clinching
Unit (Metric/Unified)
Metric

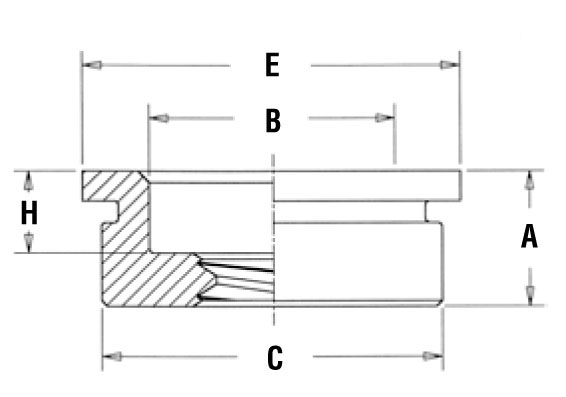

A Shank Max
3.18mm
E Nom._mm
7.87mm
H Nom._mm
1.91mm
Hole Size in Sheet + 0.08_mm
7.14mm
Min. Dist. Hole C/L to Edge_mm
7.87mm
Min. Sheet for Flush Installation_mm
3.18mm
Min. Sheet for Self-Clinching_mm
1.27mm
B Nom._mm
4.75mm
C Max._mm
7.12mm
