RIV938P

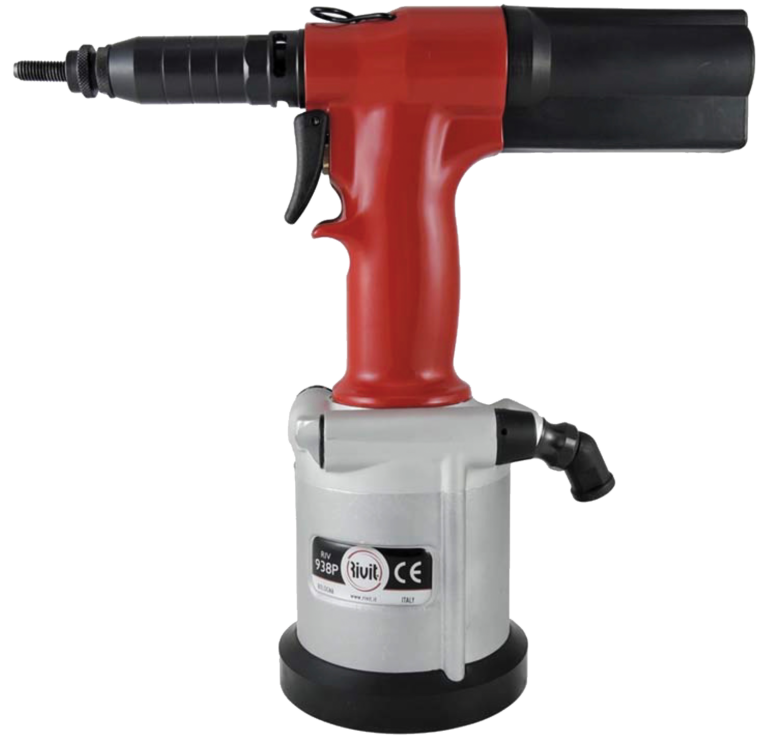

ATLAS® RIV 938P Pull-to-Pressure Tool

RIV938P
ATLAS® RIV 938P Pull-to-Pressure Tool
The newly redesigned ATLAS® RIV939P pull-to-pressure tool has a 13% faster spin on speed and a 29% faster spin off speed than the previous tool. • Pressure controlled setting allows the installation of the same insert into various material thickness without any adjustment of the tool. • Pull-to-pressure feature extends mandrel life. • Mandrel is a hardened socket head cap screw which is easy to replace when necessary. • The auto-reverse feature after installation increases production rate. • Eliminates over installing and double installing ensuring fastener thread integrity. • Installs ATLAS stud series.
Specifications
- Product Category
- ATLAS® RIV 938P Pull-to-Pressure Tool
- Product Detail
- RIV938P (4439600 tool only) – nose pieces sold separately.
- RIV938P-UN (4439600-UN unified kit) – includes a gun and tooling to install thread sizes #6-32, #8-32, #10-32, 1/4-20, 5/16-18 and 3/8-16.
- RIV938P-MT (4439600-MT metric kit) – includes a gun and tooling to install thread sizes M4 through M10.
- Specification Table
- ATLAS® RIV 938P Pull-to-Pressure Tool Specification Table
