SP-032-2

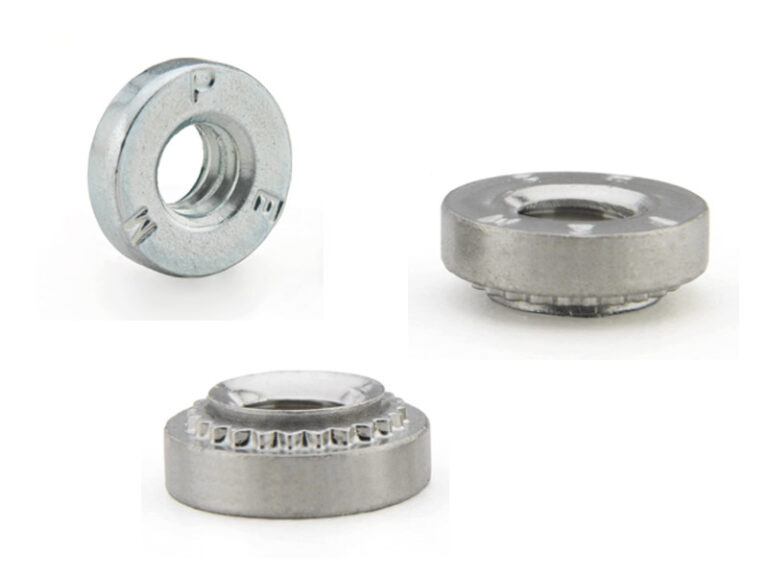

Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP
SP-032-2
Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP
NUT, X-HARD, PEM 300
Specifications
- Thread Code
- 032
- Shank Code
- 2
- For Use in Sheet Hardness
- HRB 90 / HB 192 or Less
- Product Category
- Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP – Unified
- Thread Type
- Internal
- E ± .010_in
- 0.34in
- Hole Size in Sheet +.003 – .000_in
- 0.25in
- Min. Dist. Hole C/L to Edge_in
- 0.28in
- C Max._in
- 0.249in
- T ± .010_in
- 0.09in
Installation & Performance Data
| Type | Thread Code | Shank Code | Test Sheet Material | Installation (lbs.) | Pemserter Part Number Anvil | Pemserter Part Number Punch | Anvil Dim A ±.002 (in.) | Anvil Dim P +.000 -.001 (in.) | Anvil Dim R1 +.005 (in.) | Anvil Dim R Max. (in.) | Haeger Part Number Lower Tool | Haeger Part Number Upper Tool | Pushout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP | 024/032 | 2 | 304 Stainless Steel | 11500 | 8012824 | 975200048 | 0.348 | 0.082 | 0.005 | 0.01 | H-183-10M5L | H-108-0020L | 400 | 60 |
