FHL Full Hex, Large Flange Rivet Nut | Sherex® by PEM® Anti-Rotation Fasteners

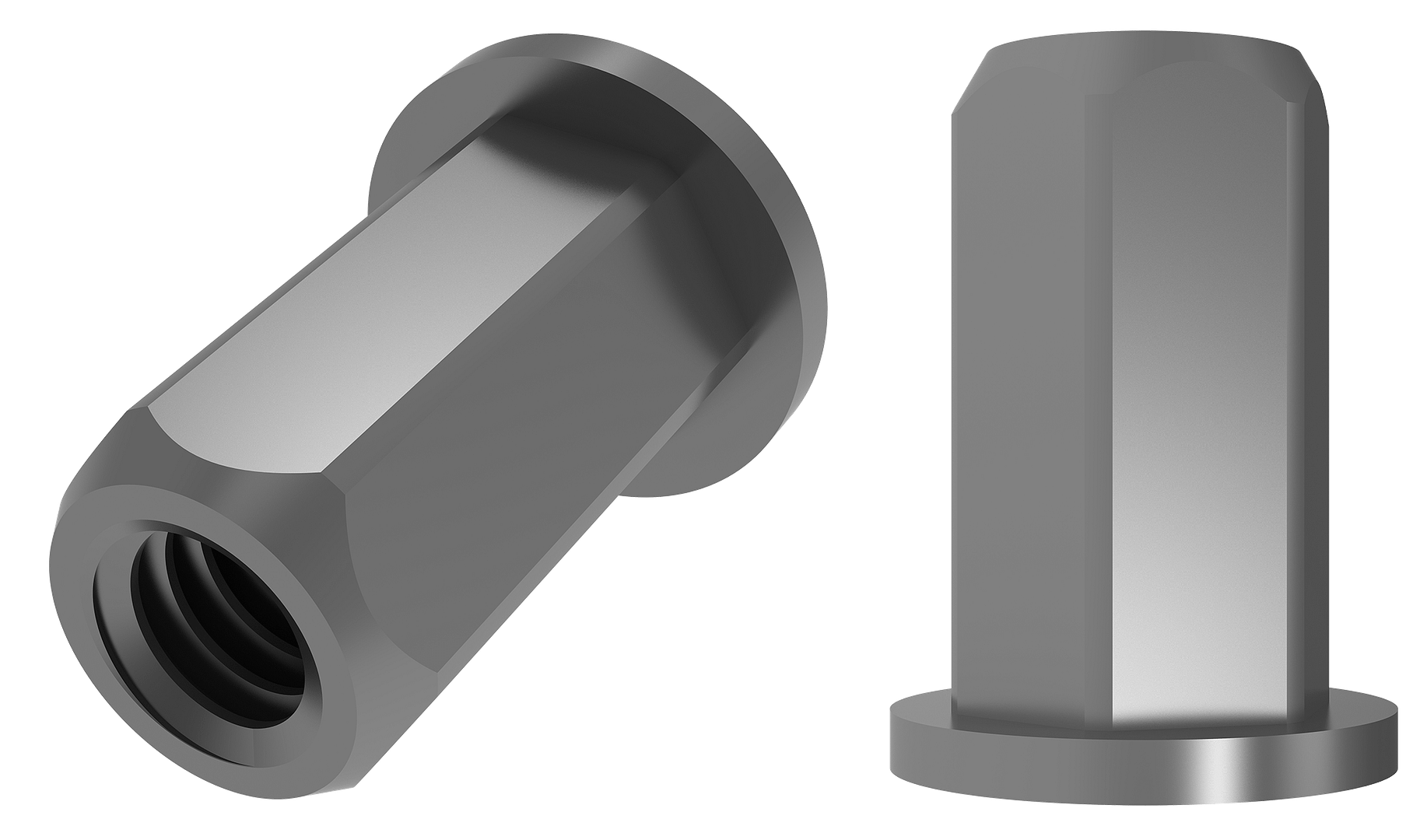

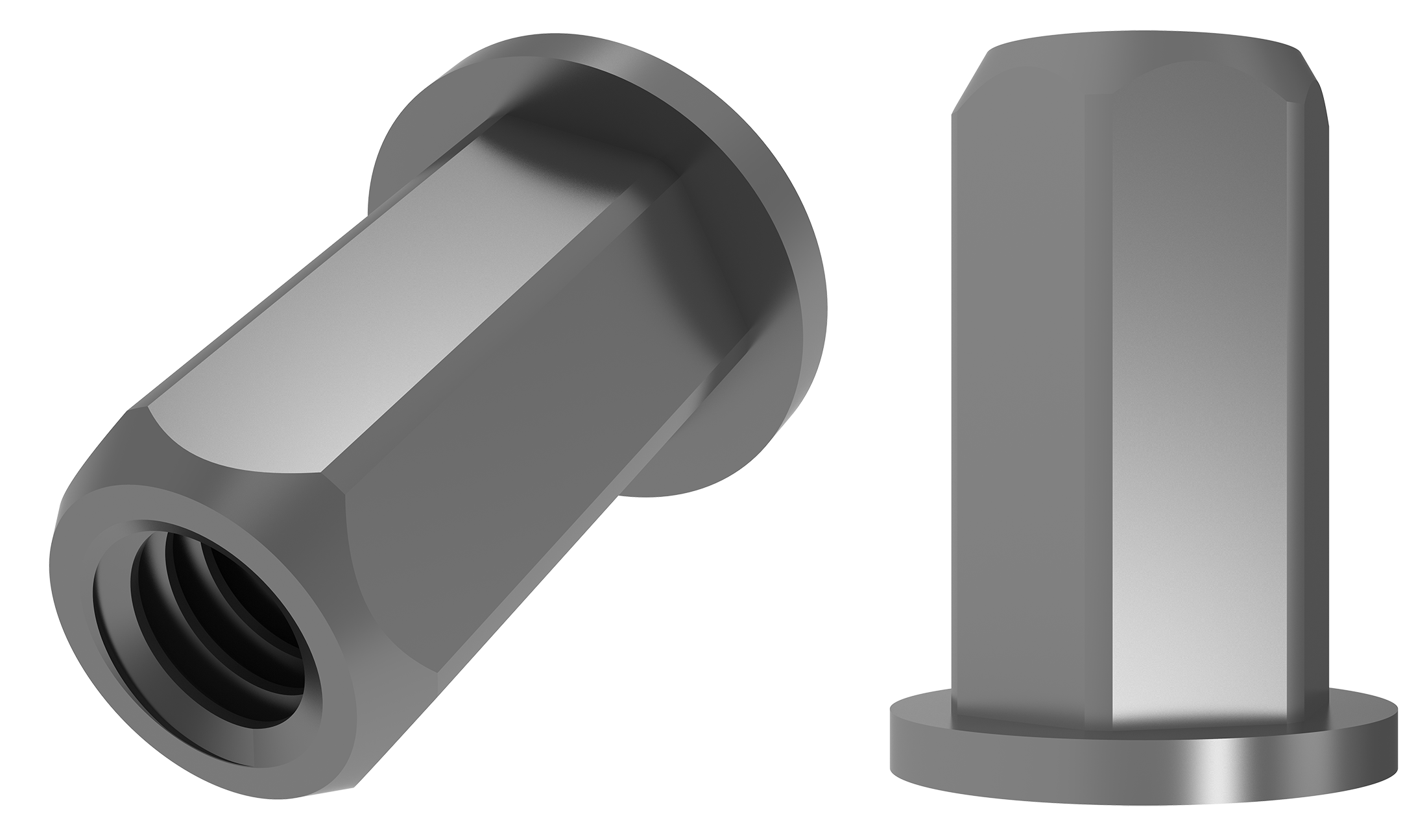

FHL – Full Hex Rivet Nut, Large Flange, Open End
The FHL is a large-flange, full hex rivet nut from Sherex® by PEM®. It combines the superior anti-rotation performance of the full hex body with a large flange that provides a broader bearing area on the host material surface, reducing surface stress for applications where load distribution is important.
If manufacturers can produce a hex hole in the material, a hex body rivet nut should be used for maximum performance.
Product Specifications
- Body style: Full hex
- Flange: Large flange
- End configuration: Open end
- Thread sizes: M6 - M10 (metric) | 1/4"-20 - 3/8"-24 (unified)
- Material: Steel (zinc plated)
Key Benefits
- Full hex anti-rotation with broad-flange load distribution
- Suitable for softer or thinner sheet materials
- Open-end for through-bolt configuration and full thread depth
- Strong anti-rotation performance for high-torque applications
- Install with hydro-pneumatic spin-pull tooling
➤ Request FHL specifications or contact Sherex by PEM for technical guidance.
