CAL – Large Flange, Knurled, Round Body Rivet Nut (Open End and Closed End)

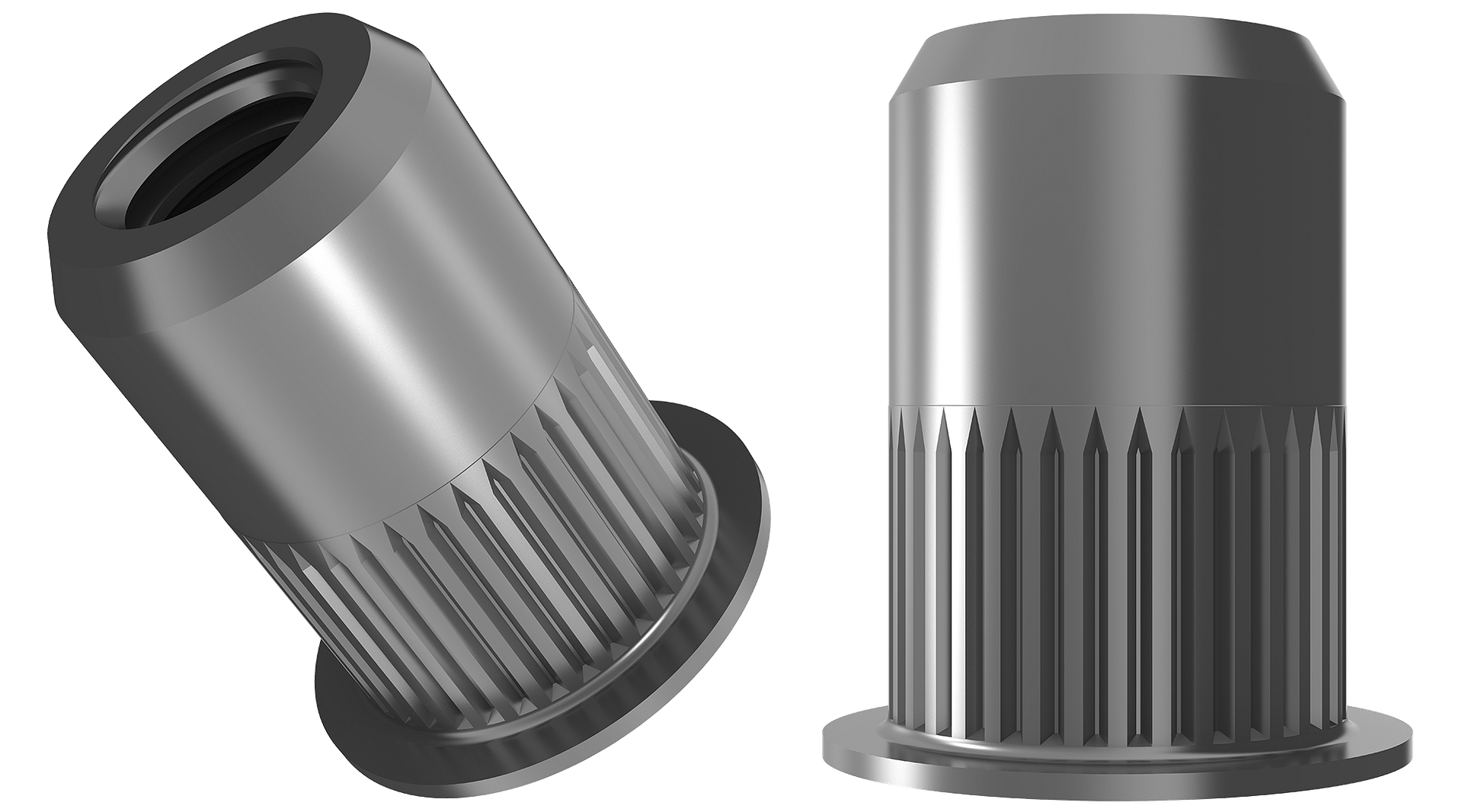

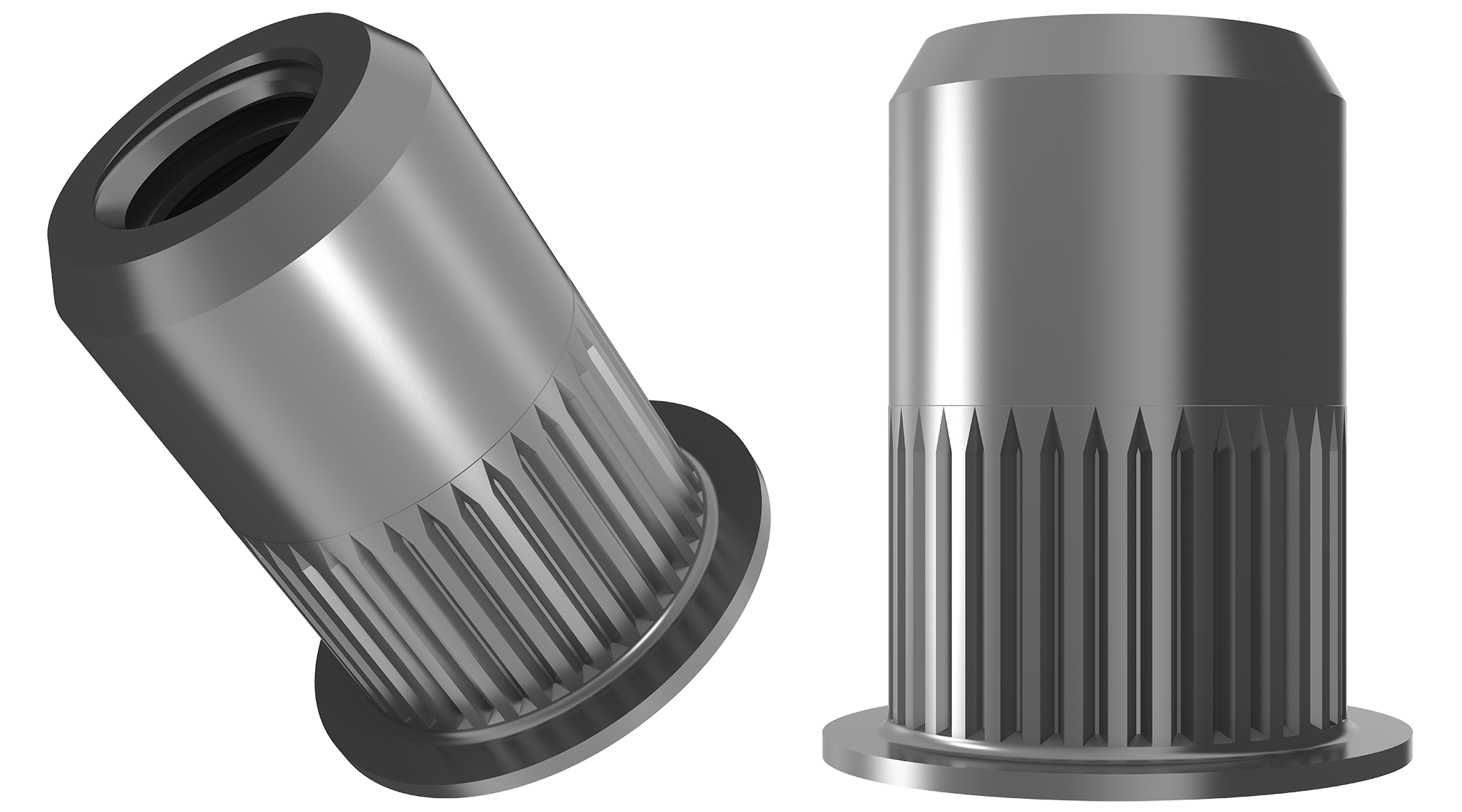

The CAL is a large-flange, open-end, round body rivet nut from Sherex® by PEM®, designed to provide a broad bearing face on the surface of the host material. The enlarged flange spreads the clamping load over a wider area, and the knurls grip making the CAL particularly suitable for softer materials where a standard flange might pull through under load.

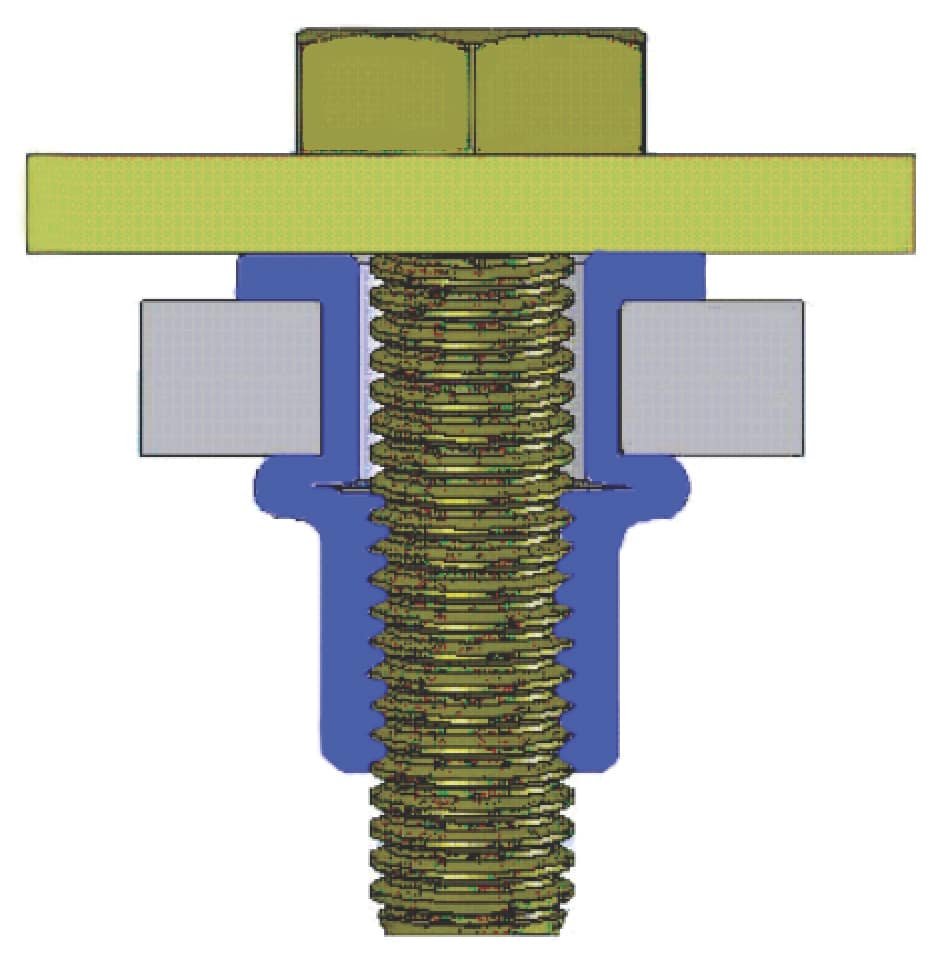

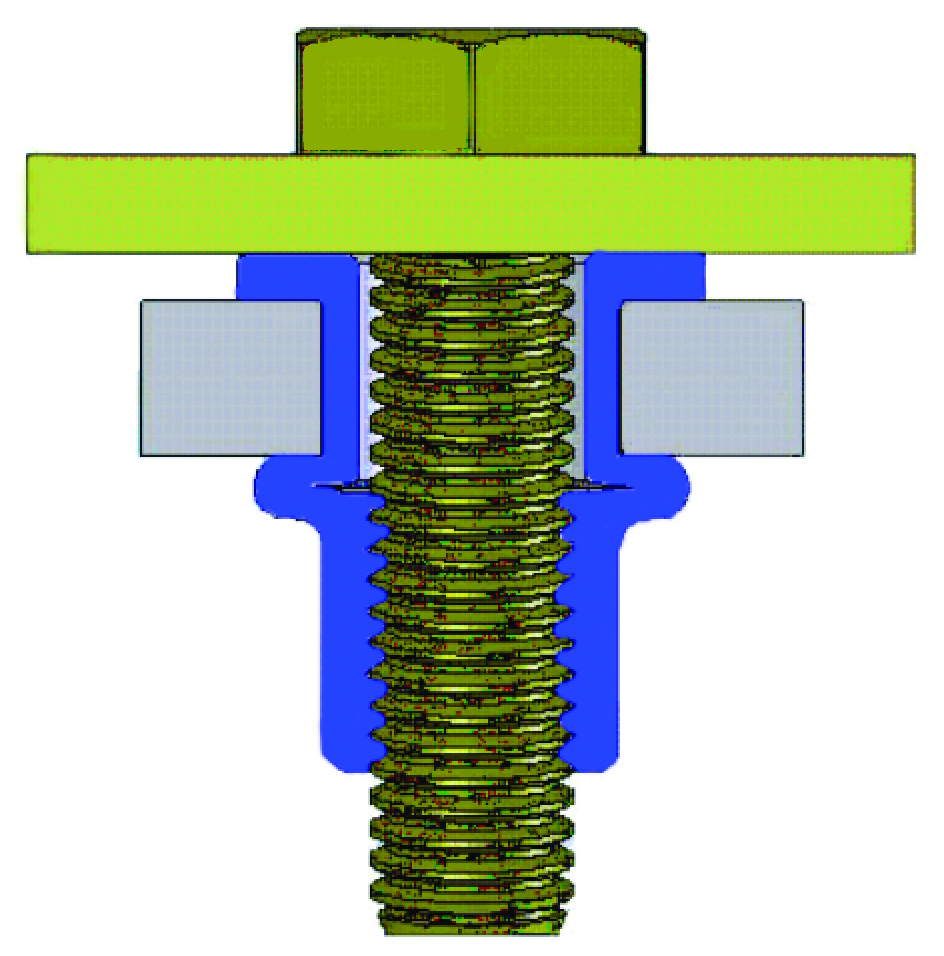

The open-end configuration supports through-bolt applications where full thread depth is required.
Product Specifications
- Body style: Round body
- Flange: Large flange
- End configuration: Open end and closed end
- Thread sizes: M4, M5, M6, M8, M10, M12 (metric)
- Material: Steel (zinc plated) / Stainless steel
- Standard and large grip ranges available
Key Benefits
- Large flange provides broad bearing area for reduced surface stress
- Suitable for softer or thinner materials where pull-through is a risk
- Open end allows through-fastener configuration and full thread engagement
- Universal round hole installation — simple and cost-effective

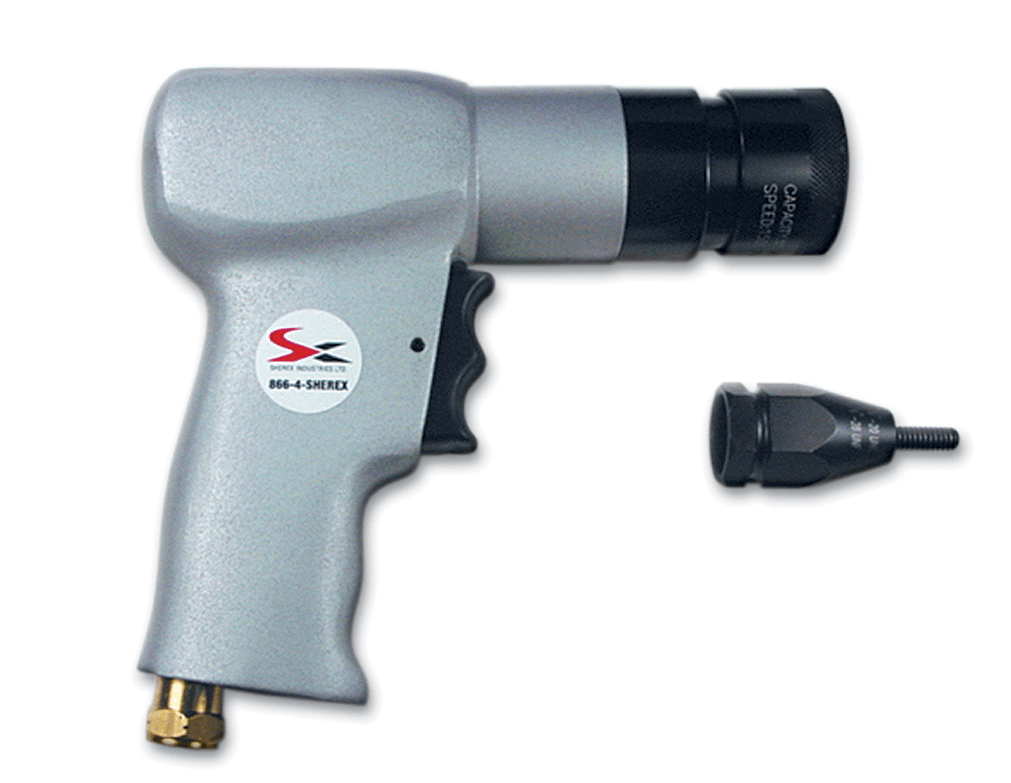

- Install using standard rivet nut tooling
➤ Request CAL specifications or contact the Sherex by PEM team for application guidance.
