CKKM Small Flange, Knurled, Full Metric Rivet Nut | Sherex® by PEM® Universal Fasteners
CKKM – Small Flange, Knurled, Full Metric Rivet Nut (Open End and Closed End)
The CKKM is the small flange variant of the Sherex® by PEM® CKLM knurled round body rivet nut. The small flange provides a near flush installation, while the knurls help prevent the rivet nut from spinning in the hole after installation.
Popular rivet nut used in a variety of industries and applications. Available in open end and closed end options.
Product Specifications
- Body style: Round body with knurled surface
- Flange: Small

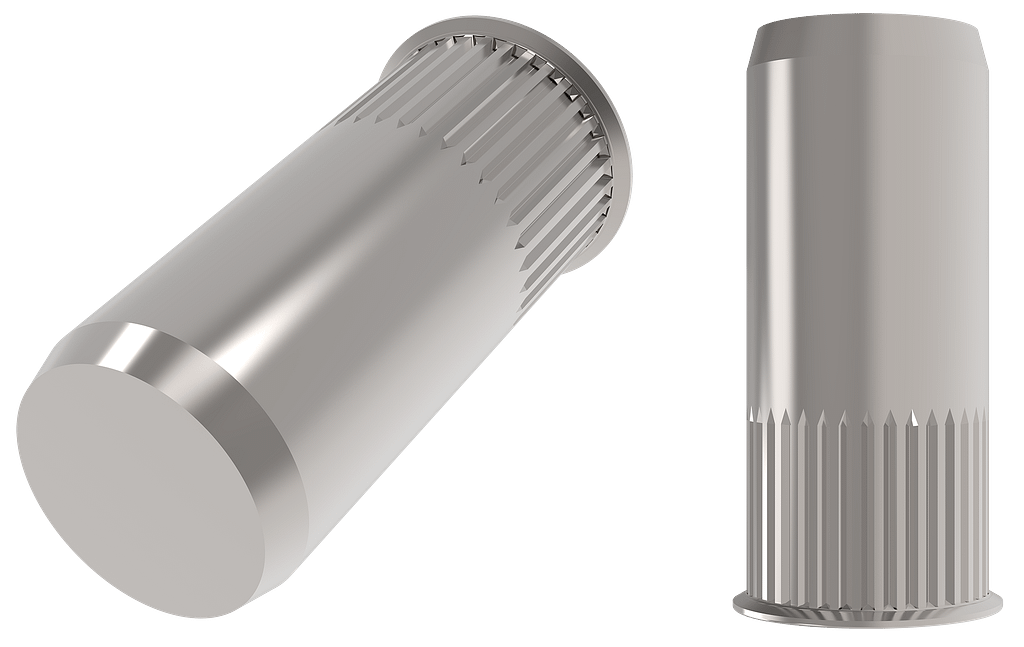

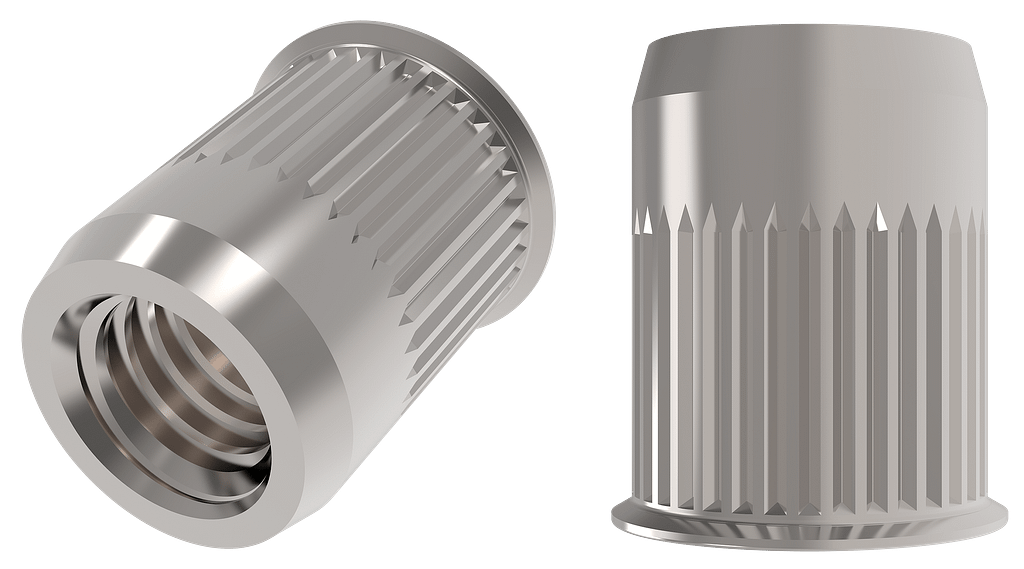

- End configuration: Open end and Closed end
- Thread sizes: M3, M4, M5, M6, M8, M10, M12 (metric)
- Material: Steel (zinc plated)
- Installed with standard rivet nut tooling
Key Benefits
- Knurled body for improved anti-rotation without a hex hole
- Closed end prevents fluid and contaminant ingress
- Small flange for clearance-sensitive assemblies
- Suitable for all application and in all material types
➤ Download the CKKM data sheet or contact Sherex by PEM for technical information
