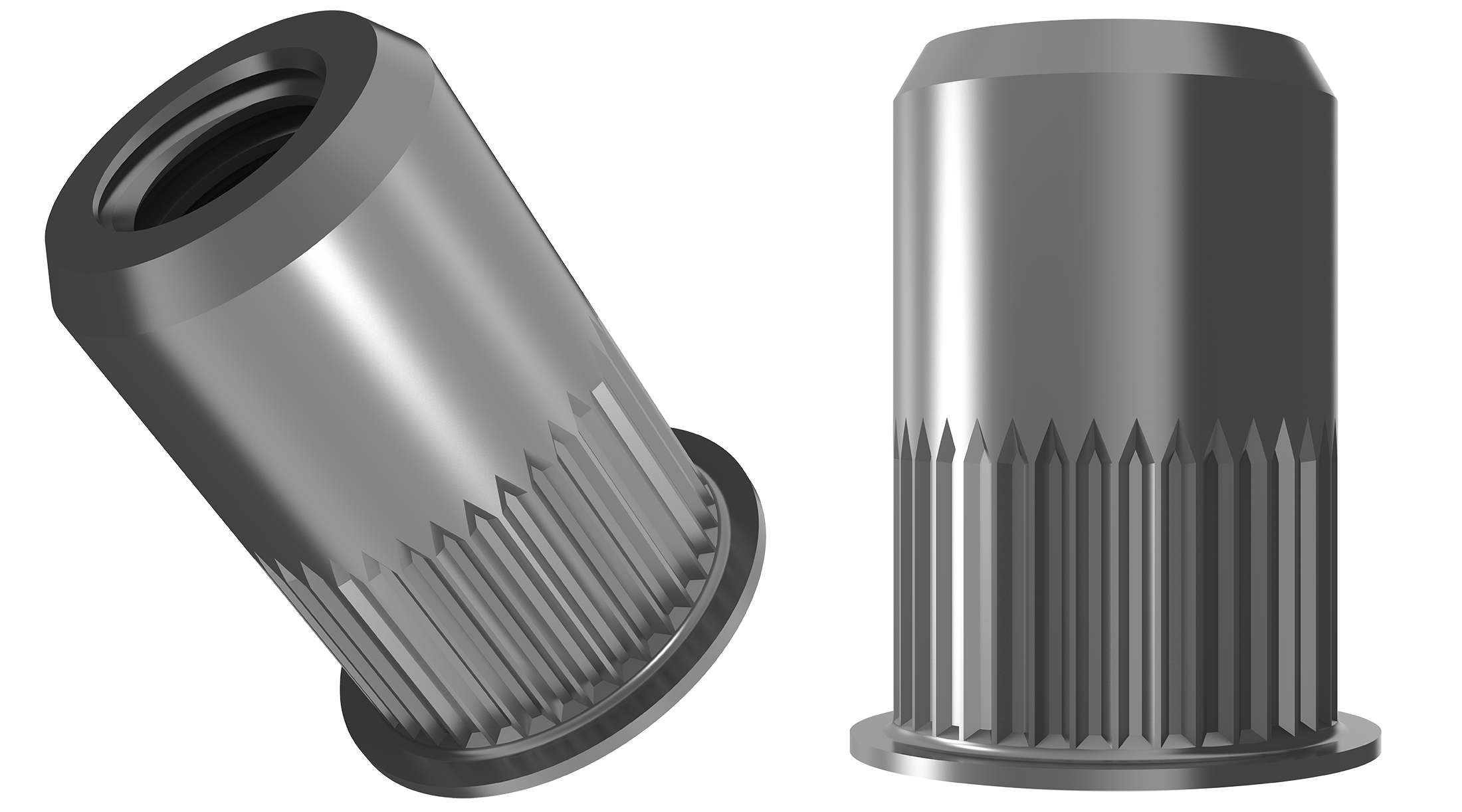

CAK – Small Flange, Knurled, Round Body Rivet Nut (Open End and Closed End)

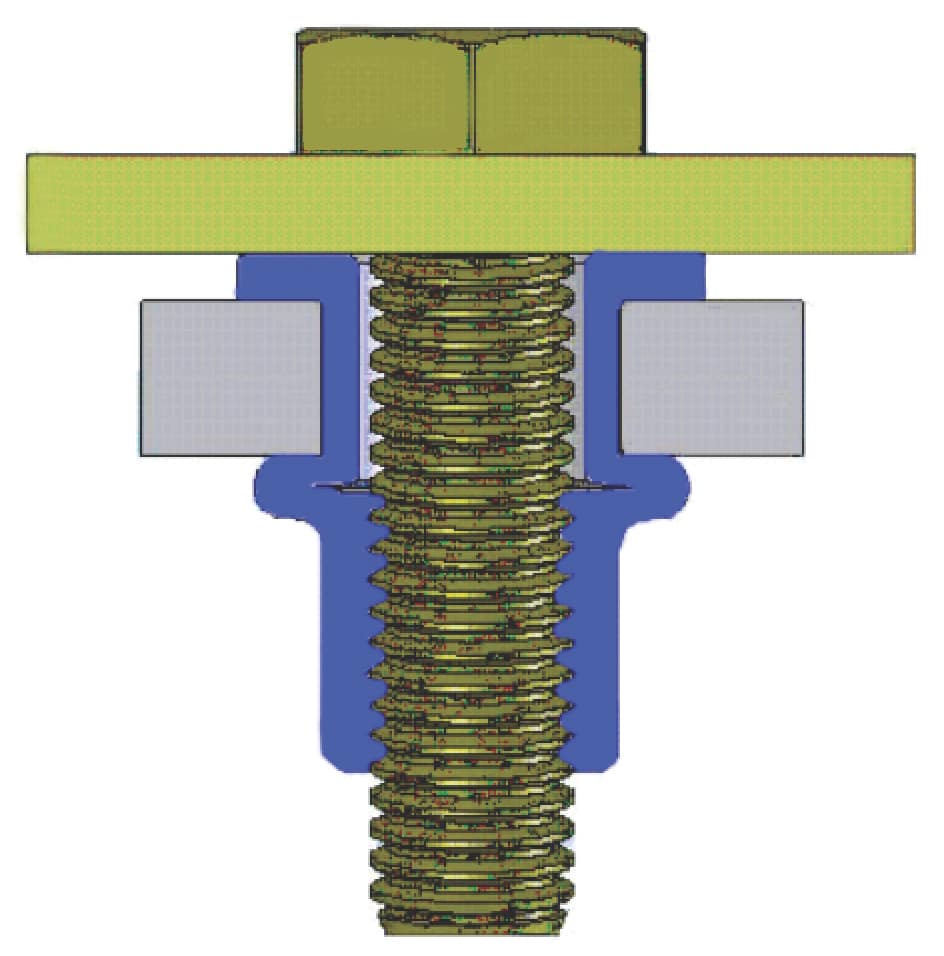

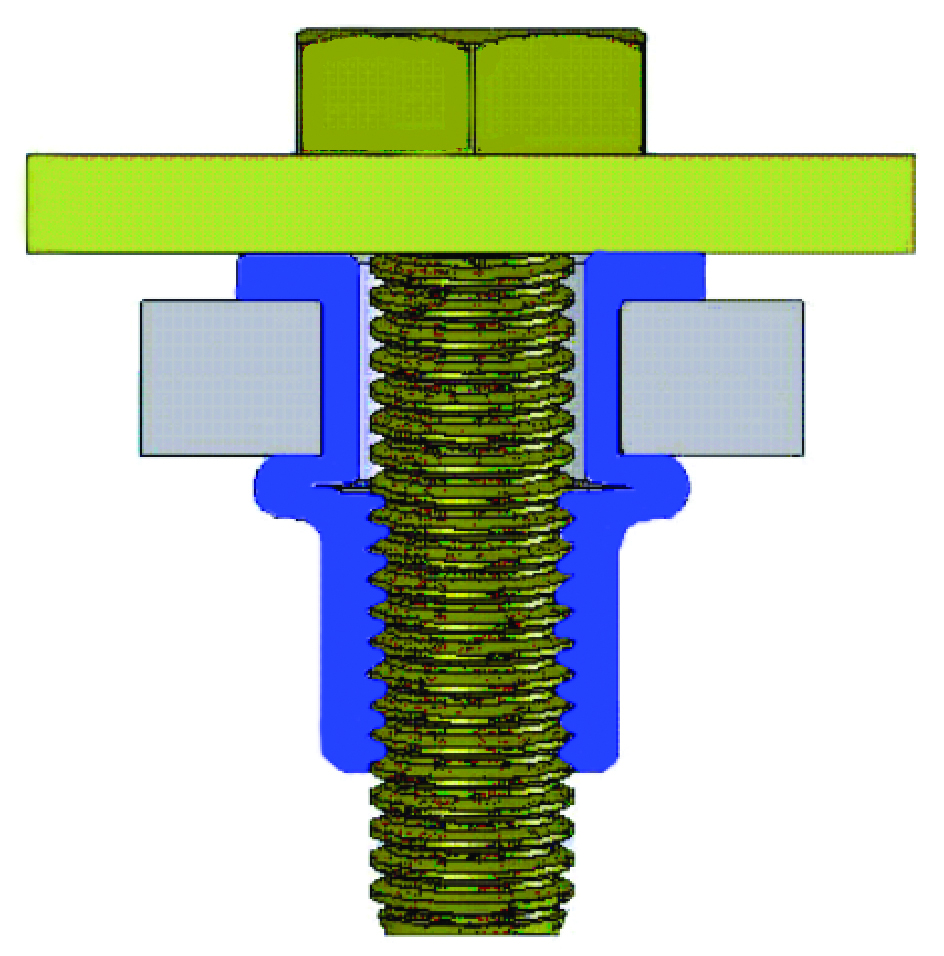

The CAK small flange, knurled, round body rivet nut is a popular Sherex by PEM fastener used in a variety of applications. The open-end configuration supports through-bolt applications where full thread depth is required. Small flange is for a near flush installation and the knurls provide grip into the base material to prevent the rivet nut from spinning after installation.
Available in both open end and closed end.
Product Specifications
- Body style: Round body
- Flange: Large flange
- End configuration: Open End and Closed End
- Thread sizes: M4 - M12 (metric) | #6-32 - 3/8"-24 (unified)
- Material: Steel (zinc yellow), Stainless Steel, Aluminum
Key Benefits
- Small flange for near flush installation
- Open end allows through-fastener configuration and full thread engagement
- Available in closed end
- Universal round hole installation — simple and cost-effective

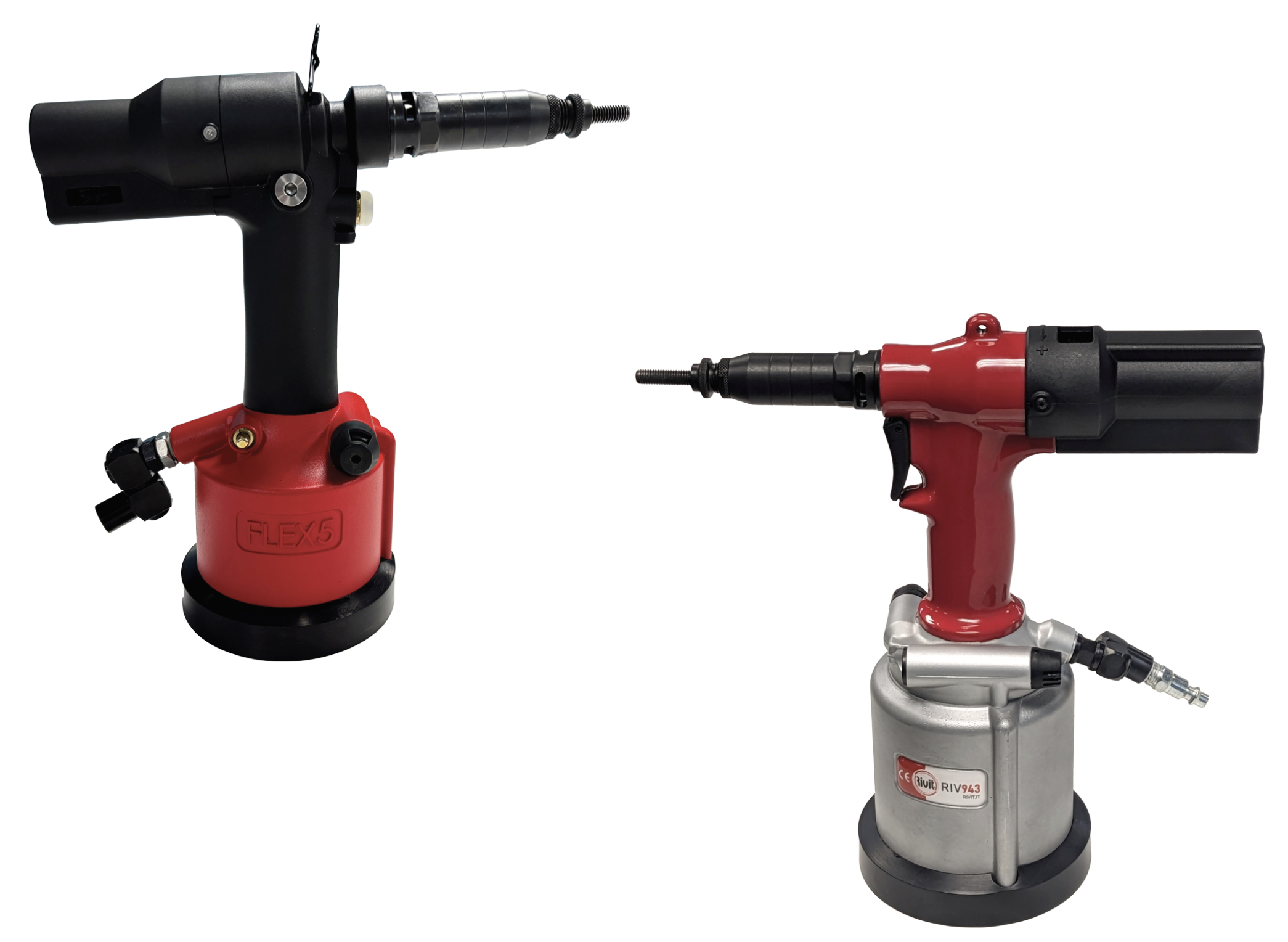

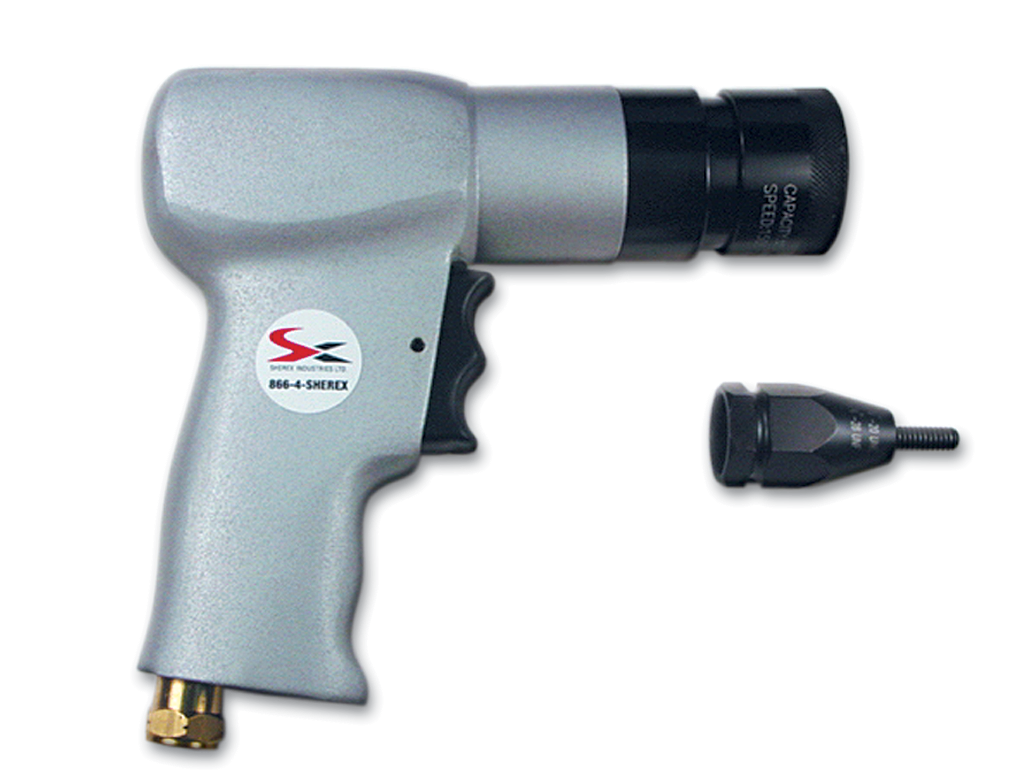

- Install with standard rivet nut installation tools
➤ Download the CAK data sheet or contact Sherex by PEM for specification support.
