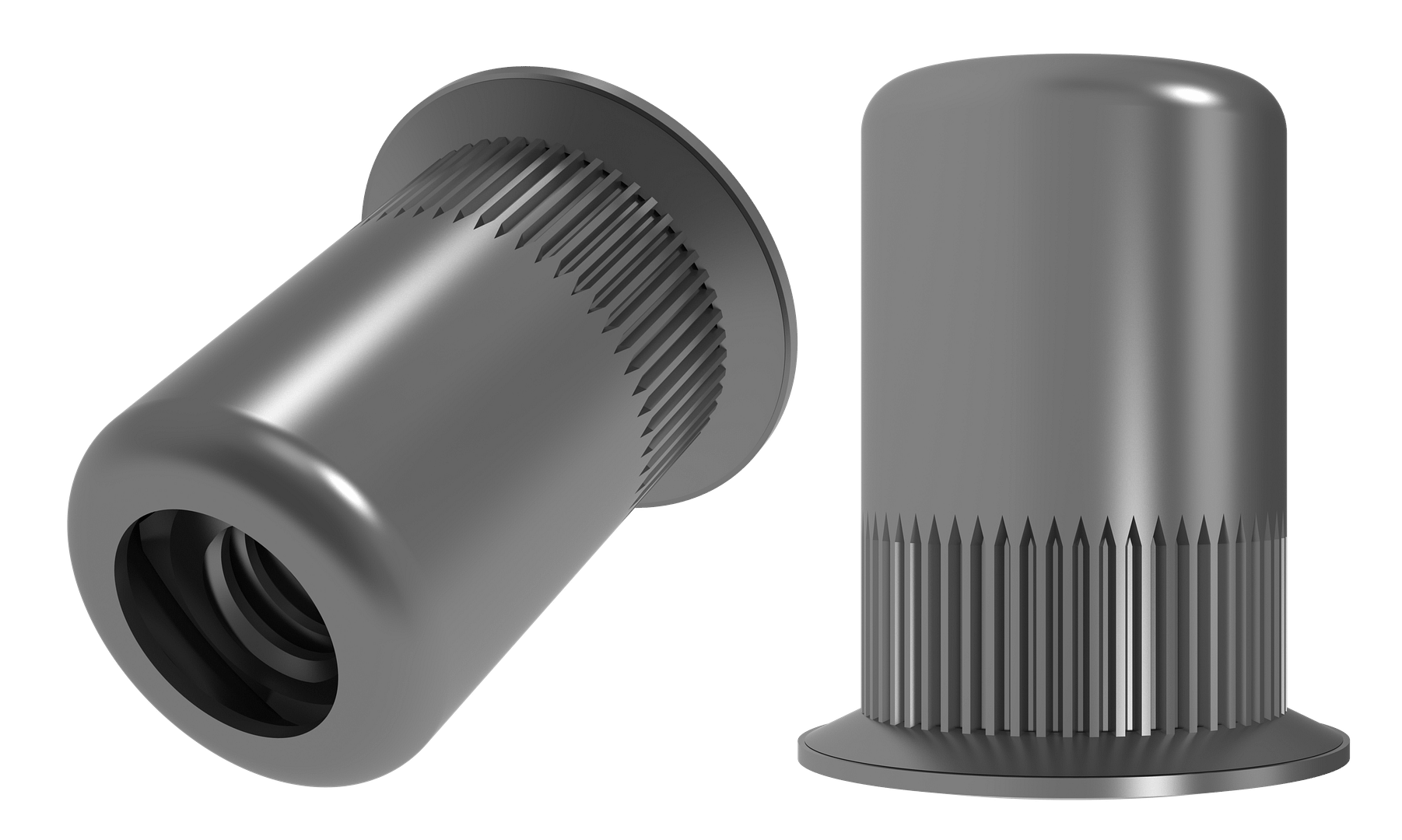

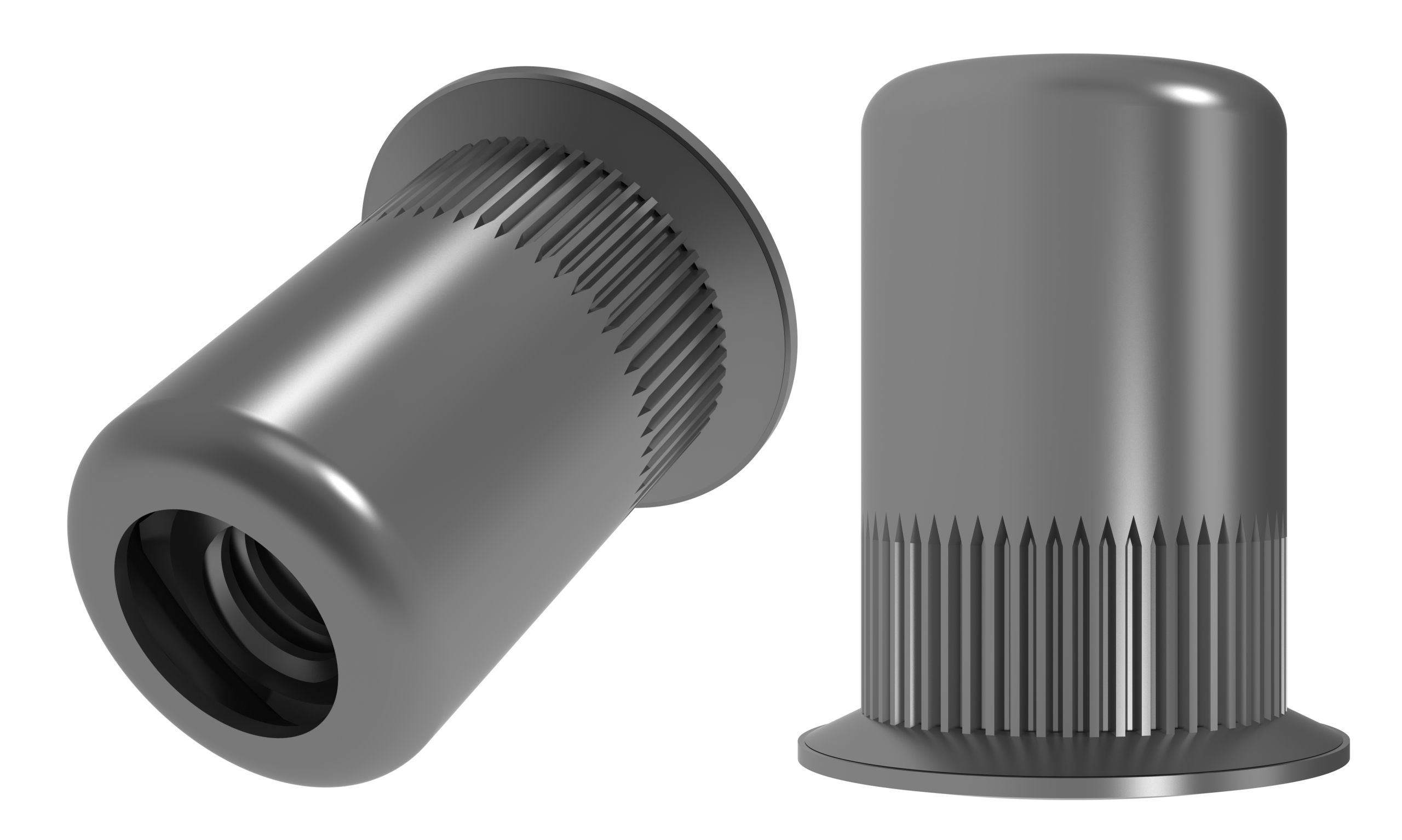

RIV-FLOAT® RFL - Large Flange Floating Thread Rivet Nut

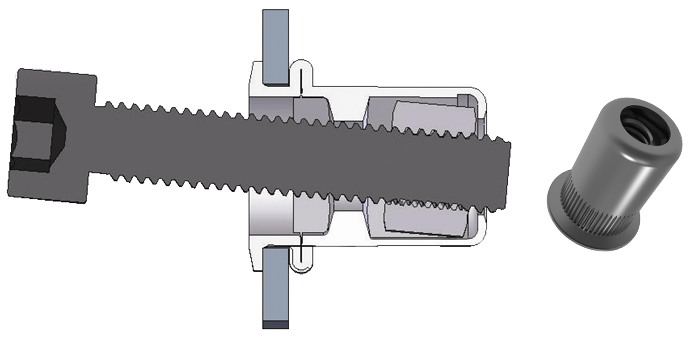

The RFL is the standard large flange variant within the Sherex® by PEM® RIV-FLOAT® floating rivet nut family. It's a patented rivet nut with with an internally floating threaded insert that moves radially to compensate for through-bolt misalignment between mating components. The open-end design accommodates through-fastener configurations and extended thread engagement depths.
RIV-FLOAT helps accommodate for tolerance stack-up issues and can help to eliminate cross-threading during assembly.
Product Specifications
- Body style: Round body with internal floating thread
- End configuration: Open end
- Thread sizes: M4, M5, M6 (metric) | #8-32, #10-32, 1/4"-20 (unified)
- Material: Steel (zinc plated)
- Grip range: See dimensional data table
- Float range: ±0.6 mm radial (typical)
Key Benefits
- Compensates for positional hole misalignment without rework
- Helps to eliminate cross-threading
- Open-end configuration for through-bolt applications
- Standard round hole installation — no special preparation

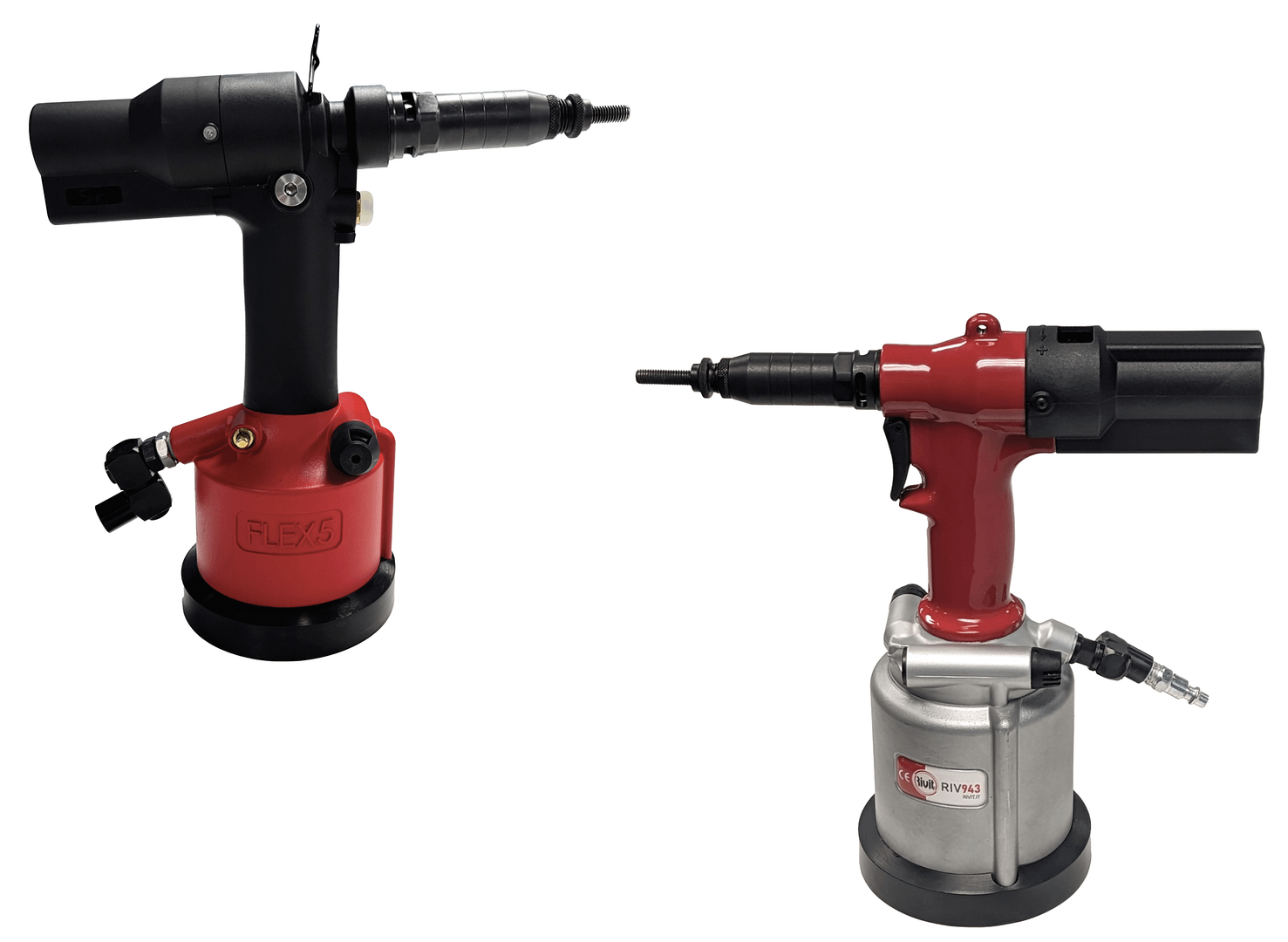

- Compatible with Sherex by PEM spin-pull installation tools
➤ Request a data sheet or contact the Sherex by PEM team for application support.
