Installation Equipment
PEM® offers a full system solution for installing our products.
Today PennEngineering® offers the most comprehensive line of automatic and manual machines and in-die installation systems designed to safely, reliably, accurately, and quickly install the complete range of PEM® fasteners.
Fastener Installation Machines

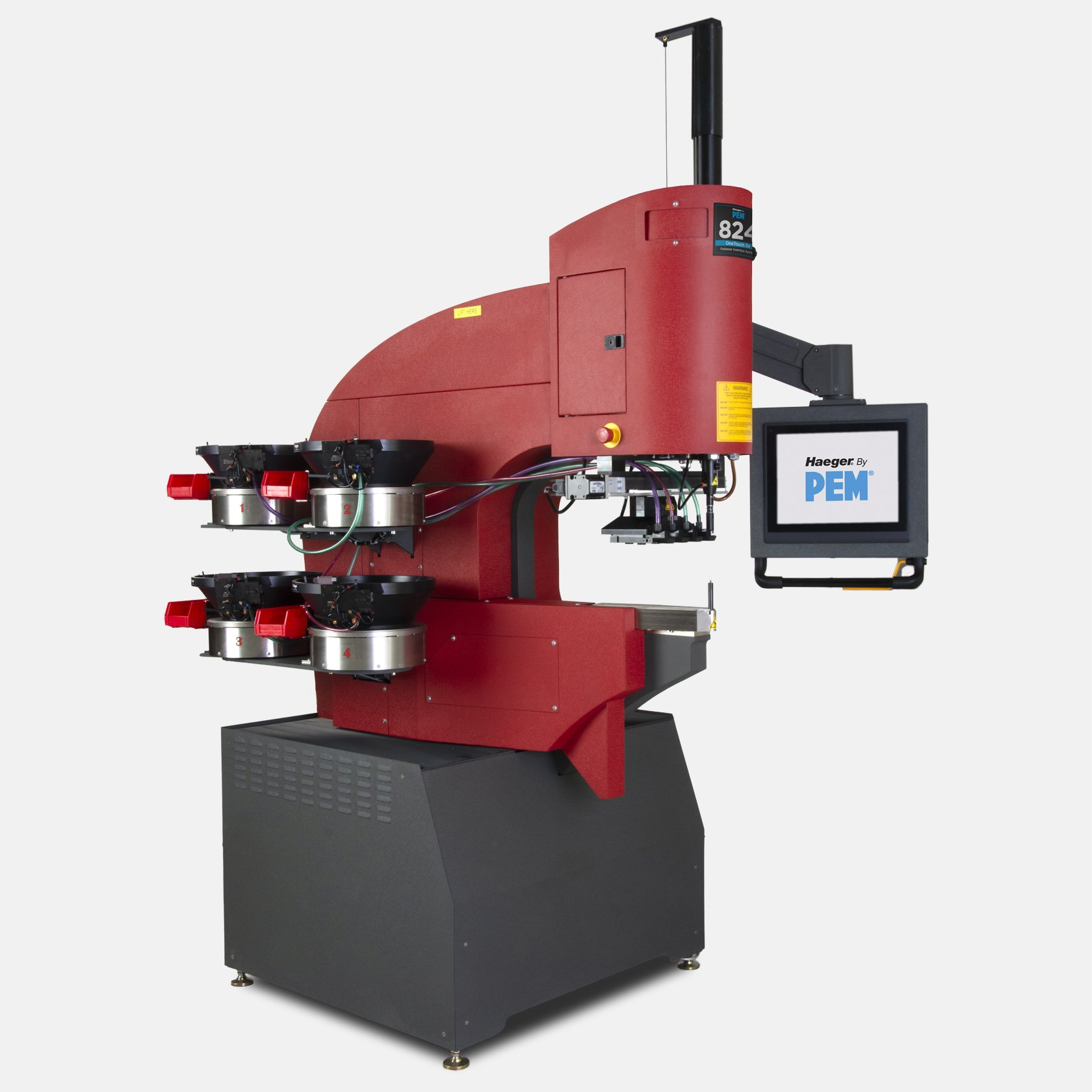

Haeger® 824™ OneTouch 5e™
- 4 Station Automatic Lower Tool Changer
- 4 Station Automatic Upper Tool Changer
- Fast & Easy Tooling Setup
- Easy Programming
- Energy Saving

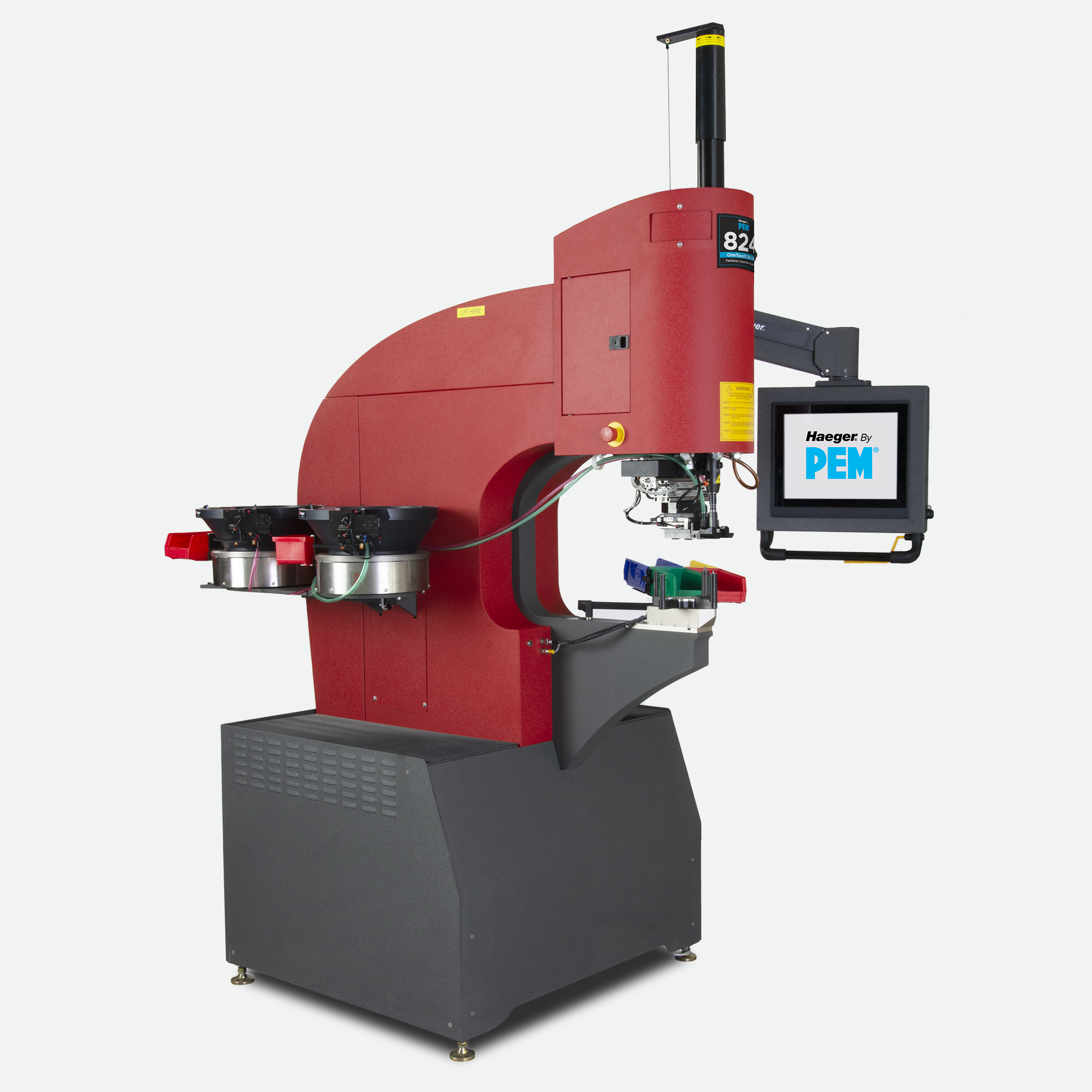

Haeger® 824™ OneTouch 5e LITE™
- Faster Tooling Setup
- Faster Programming
- Best Operator Ergonomics
- 2 Automatic Upper Stations
- Energy Saving

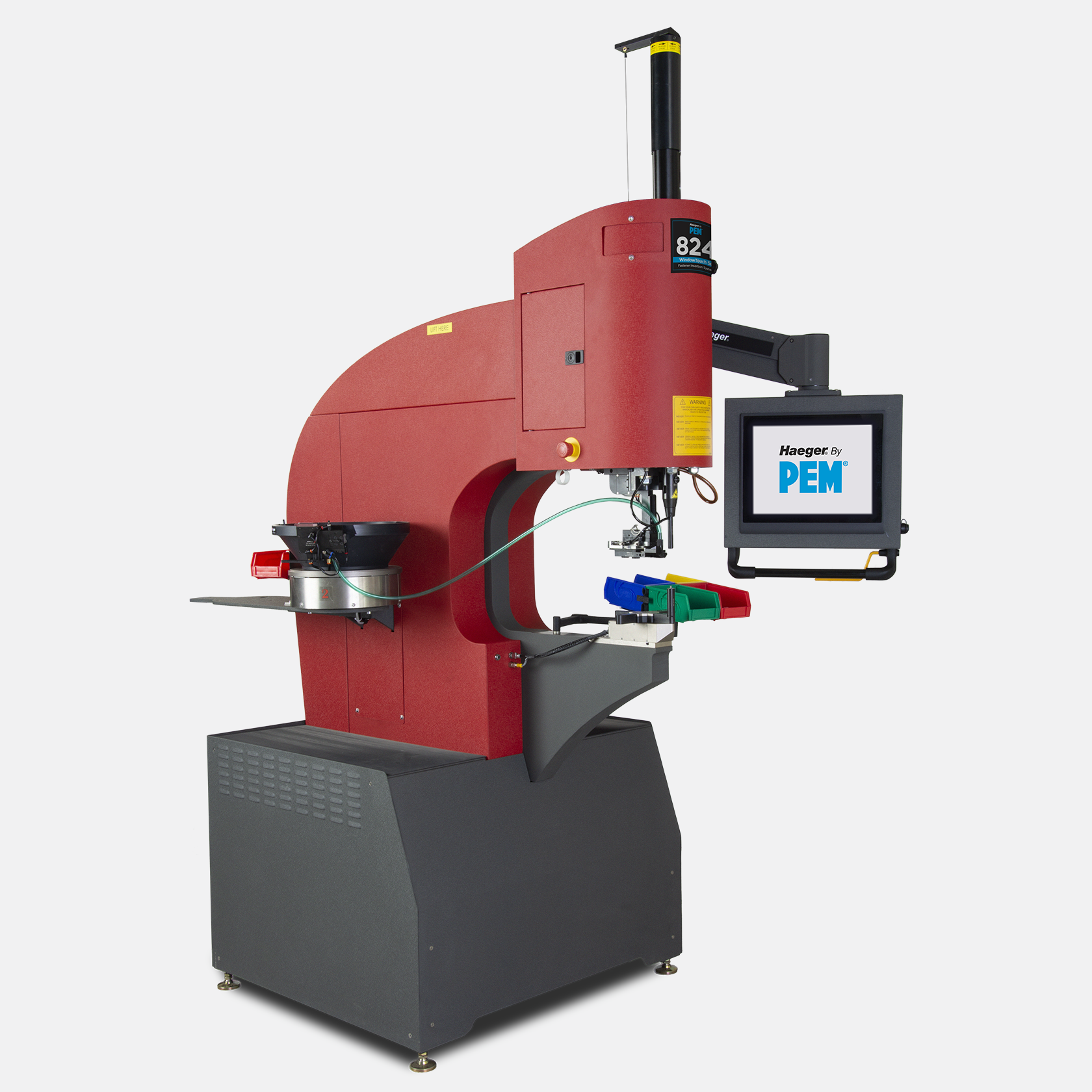

Haeger® 824™ WindowTouch 5e™
- Faster Tooling Setup
- Best workpiece accessibility
- Faster Programming
- Best Operator Ergonomics
- Energy Saving

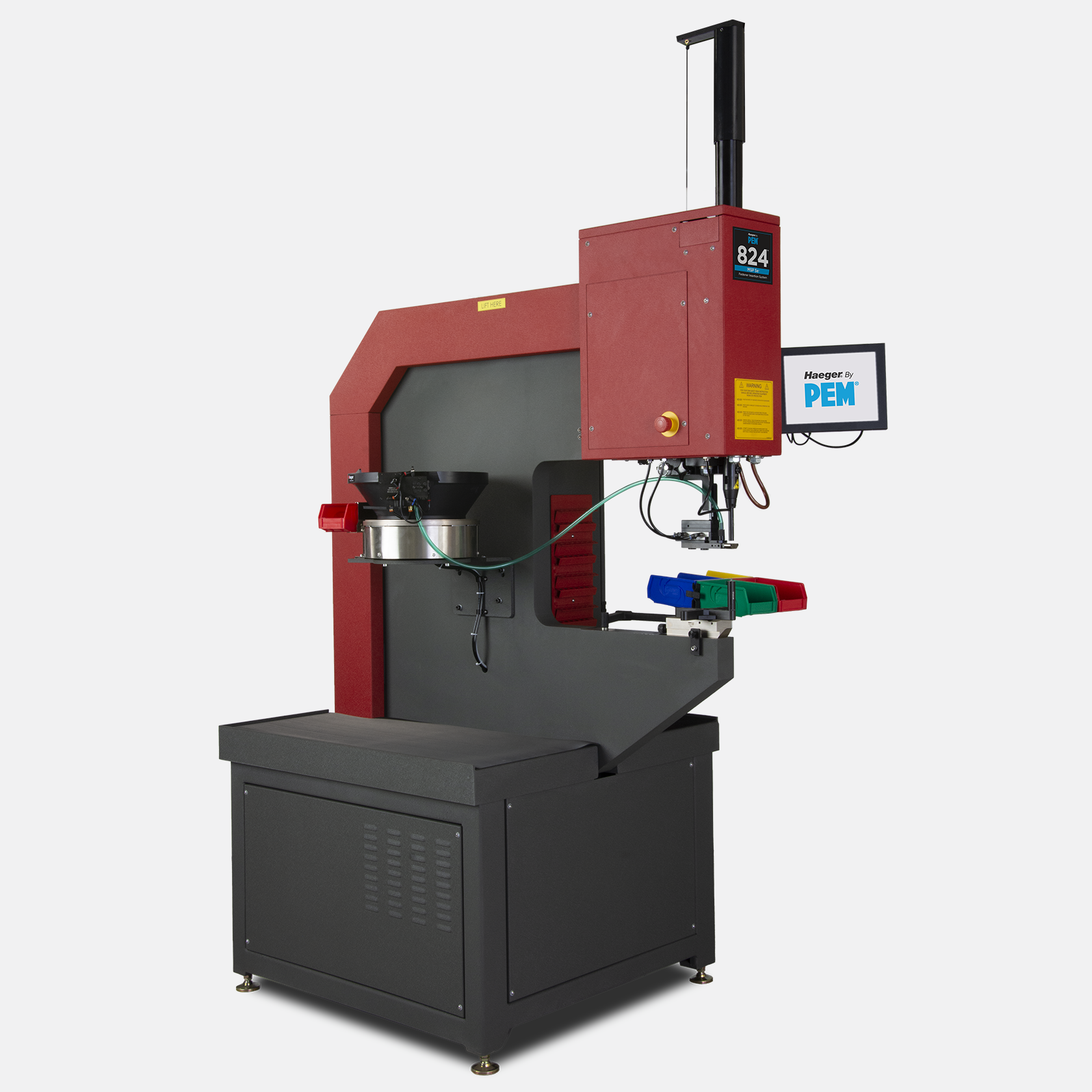

Haeger® 824™ MSPe™
- 8 ton (72kN) ram force and 24 inch throat depth
- Energy Efficient
- Patented Safety System
- Tooling Protection System and Batch Counter

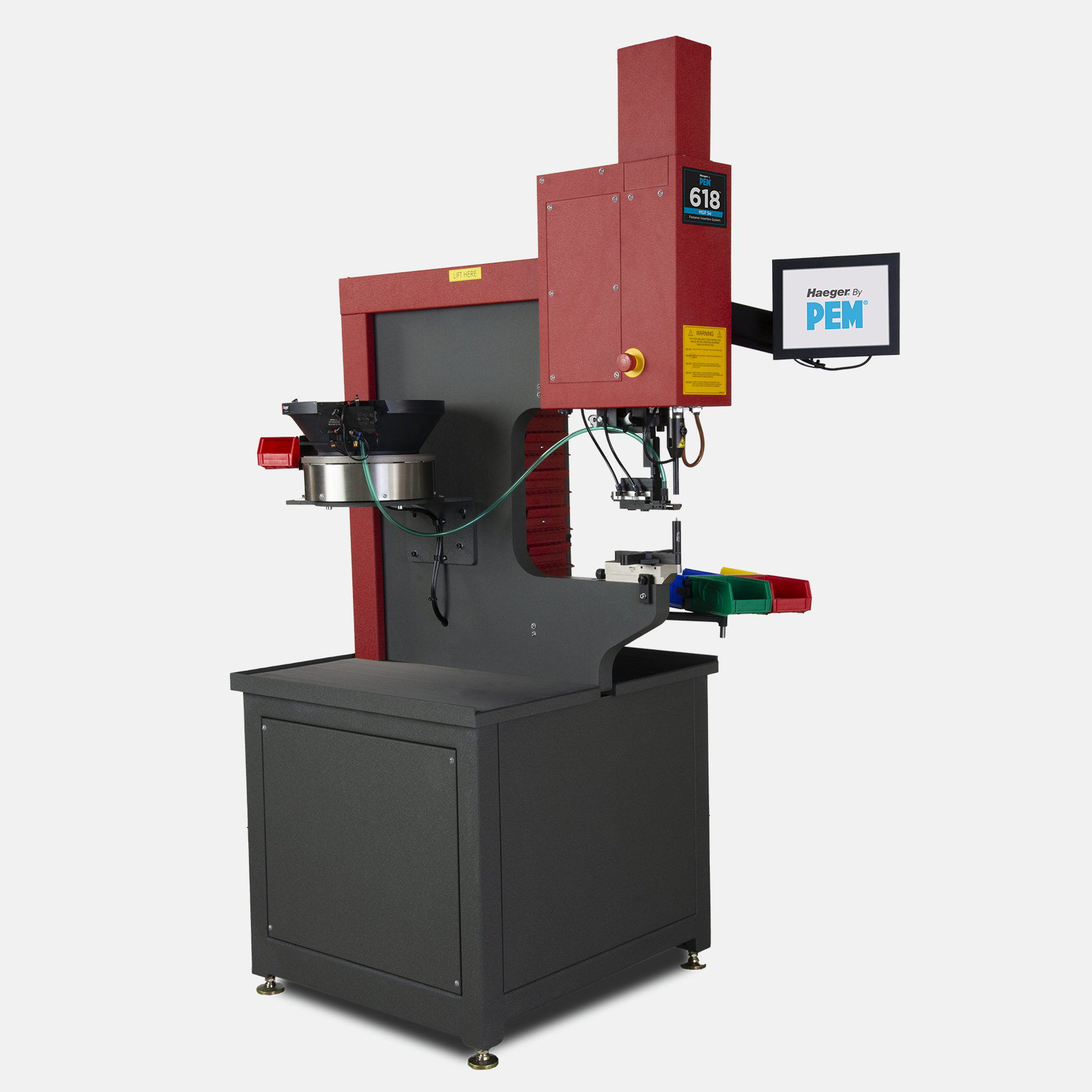

Haeger® 618™ MSPe™
- 6 ton (53kN) ram force and 18 inch throat depth
- Energy Efficient
- Patented Safety System
- Tooling Protection System and Batch Counter
PEMSERTER® Series 4® Machine
- 6 tons of installation force
- Large 18" throat depth
- 100% pneumatic with short cycle time for increased productivity
- Requires shop air only

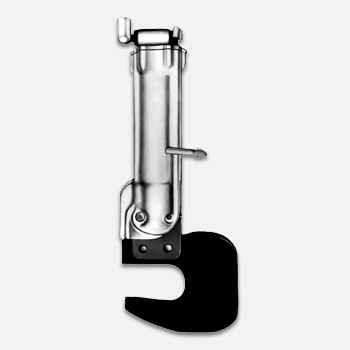

PEMSERTER® Series P3® Portable Pneumatic Hand Tool
- Pneumatic power for consistency and simple operation
- Requires shop air only
- Trigger controlled safety
- Snap-in tooling changeover
- Metric or Unified tooling
- Can be bench-mounted, hardware included
PEMSERTER® MICROMATE® Hand Tool
- Equipped with punches and dies to punch fastener mounting holes in metal sheets
- Changes to flat punch and recessed anvil to easily install unified or metric self-clinching nuts
- Ideal for prototype shops or short production runs
Tooling Resources
Haeger® Tooling
PEMSERTER® Tooling
Installation Guide
| Installation Equipment | Max. Force | Throat Depth |
|---|---|---|
| Automatic Feed | ||
| Haeger® 824™ OneTouch™ 5e | 16,000 lbs. (72kN) | 24" (61cm) |
| Haeger® 824™ OneTouch™ 5e LITE | 16,000 lbs. (72kN) | 24" (61cm) |
| Haeger® 824™WindowTouch® 5e | 16,000 lbs. (72kN) | 24" (61cm) |
| Haeger® 824™ MSPe | 16,000 lbs. (72kN) | 24" (61cm) |
| Haeger® 618™ MSPe | 12,000 lbs. (53kN) | 18" (45.7cm) |
| Manual Feed | ||
| PEMSERTER® Series 4® Machine | 12,000 lbs. (53kN) | 18" (45.7cm) |
| Handheld | ||
| PEMSERTER® Series P3® Tool | 5,000 lbs. (22kN) | 3" (7.6cm) |
| PERSERTER® MICRO-MATE® Tool | 2,500 lbs. (1,134 kg) | 1.75" (4.5cm) |
