Surface Mounting Technology (SMT)

Advantages & Limitations

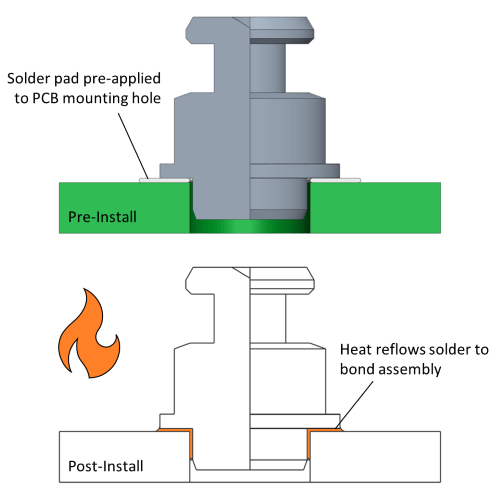

SMT fasteners provide cost savings over through-hole solutions with simpler features and streamlined installation – removing the need for displacement and interference features like knurls or burrs. No install force is required since parts can be machine placed at room temperature with solder paste that can be reflowed with the rest of the electrical connections on the PCB, shortening assembly time. Pilotless standoffs can be mounted directly on top of copper traces that would otherwise have to travel around a through-hole, resulting in the potential for more dense electrical components.

Like any of the soldered components on a PCB, the biggest challenges associated with SMT fasteners involve inspection and reparability limitations. The bonding interfaces between the fastener, solder, and circuit board are difficult to visually inspect for defects. This can cause issues in the production process or final product. Additionally, since SMT fasters are soldered directly onto a circuit board, mechanical failure could result in damage to the electrical components. This can render a product defunct or require replacement parts. However, alternative attachment methods like broaching require far more space to securely adhere to a PCB and involve higher installation forces, which can also cause damage in production.

Common Applications

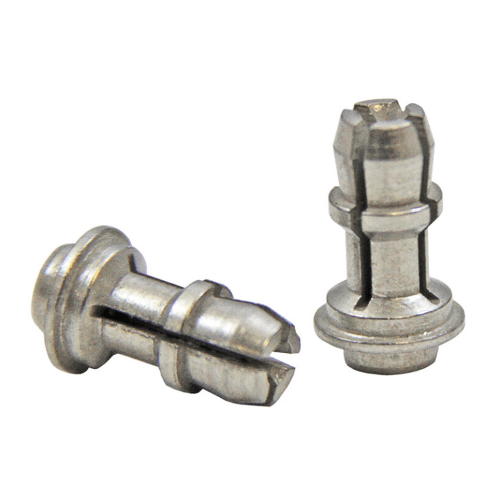

SMT fasteners are almost strictly limited to electrical components, as it involves PCB mounting by soldering directly to a circuit board. This means that any product or industry that involves electronics could benefit from using the reflow capabilities of SMT fasteners, most popularly surface mount standoffs, to streamline their production.

Explore surface-mounted PEM solutions in our Product Finder:

Visit the K Datasheet to learn more about our surface mount nuts and standoffs for PCBs.
