PEM® Ghost™ Fastening Technology

The GHOST™ Fastening Technology is ideal for achieving tight security and sleek aesthetics. This new PEM® capability produces a fully concealed fastener with zero visible evidence of disassembly once engaged. With the ability to replace many screw/nut assemblies, the GHOST™ fastener makes new design avenues possible across a variety of industries.

  • Tool-less assembly and reassembly
  • Near-instant release and disassembly using magnetic tool
  • Non-contact disassembly unlike traditional fastening solutions
  • Ample float accommodates tolerance and assembly imprecisions
  • Ultra-smooth design for sleek aesthetics
  • Concealed nature of the product makes new design avenues possible across a variety of industries and market sectors
  • The Ghost fastener dimensions are:
    • Body Diameter - .189"/4.8mm
    • Overall Diameter - .214"/5.4mm
    • Length - .130"/3.3mm
  • Components are made from 300 Series Stainless Steel

How the Technology Works

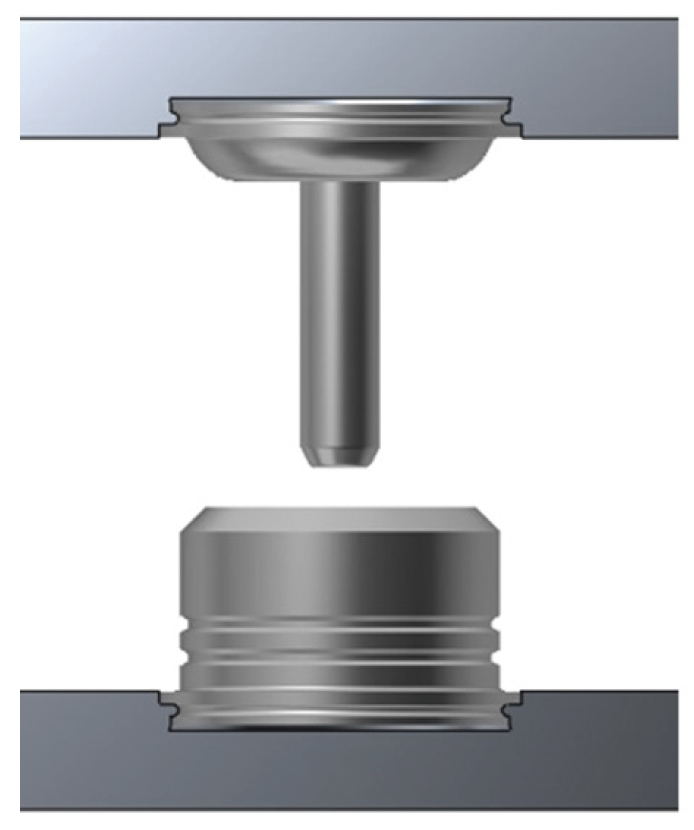

PEM® GHOST™ Fastening Technology utilizes a fully concealed, pinch-lock mechanism to create a secure lock with zero visibility once engaged.

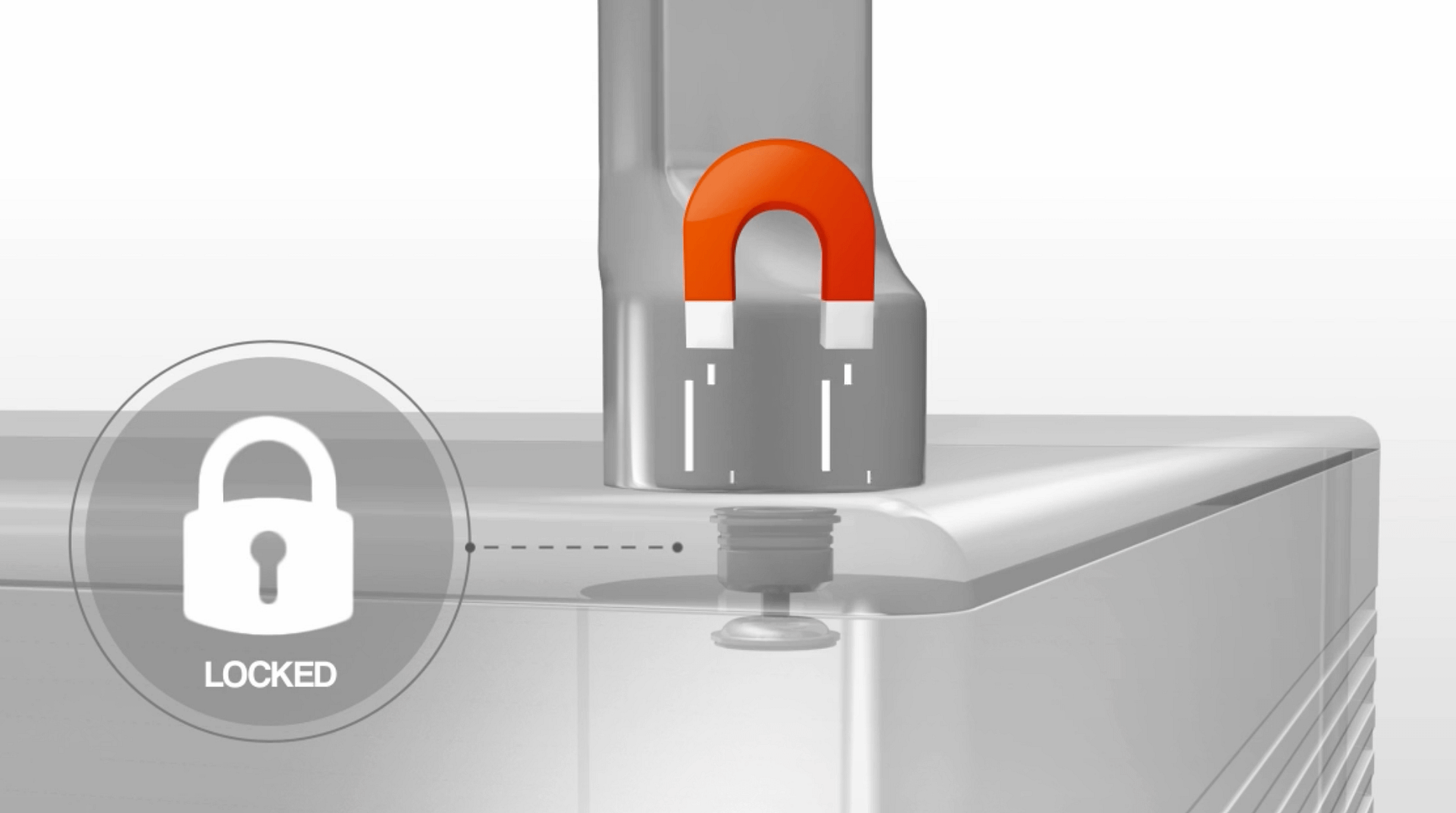

Using a magnetic release tool on the concealed fastener actuates the internal components, unlocking the pinch-lock grip and instantly releasing the pin from the fastener.

The GHOST™ fastener may not be purchased for use in consumer electronics products.  Please contact us if you have any questions.
