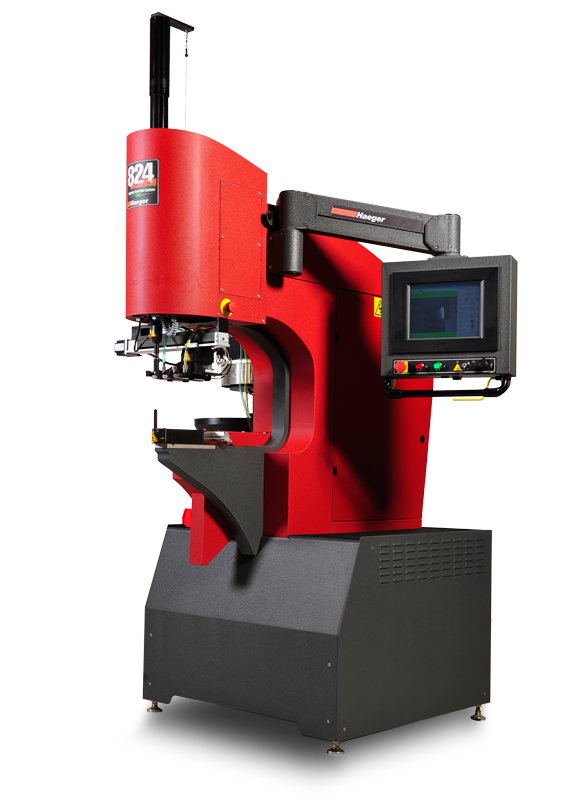

The 824 OT-4e is fully hydraulic, 8 ton of force, and 24" throat depth. The OT-4e is best suited for high volume parts with flanges or boxes under 3" and fasteners up to 0616 ( M10 ) in mild steel and 0516 ( M6 ) in stainless. The 824 OT-4e has a 4 station upper and lower auto tool changer and four auto feed bowls where you can insert 4 fasteners automatically allowing you to get the most benefit of single part handling. Single Part Handling allows you to increase your process flow by inserting four different fasteners all with their own pressure settings and only handle the part once. This feature eliminates the bottle neck. This machine also has full quality control with fastener length, fastener detection, insertion mapping, and program storage. Our InsertionLogic software has a built in wizard to quickly guide you through setting up a program based on the fasteners selected and automatically sets force, dwell, and eject time, bowl vibration and all other settings needed. The OT-4e is used for high volume flat parts with flanges under 3".

Features and Benefits:

  • 4 Station Automatic Upper and Lower Tool Changer
  • Fast and Easy Tool Setup on 4 Modular Autofeed Systems
  • Full Quality Control-Fastener Length and Fastener Detection
  • Insertion Mapping and Program Storage
  • No Alignment Quick Change Tooling

Specifications

Electrical
208 to 575V 3 phase – 50 or 60 Hz
Footprint Dimensions_in
59 x 38 x 94in
Footprint Dimensions_mm
1499 x 966 x 2388mm
Force Range – note
Optional 20,000 lbs. (90kN) modification available
Force Range_kN
4.5 to 72
Force Range_lbs
1000 to 16000
Motor_hp
5
Oil Tank Reservoir_gal
22
Oil Tank Reservoir_L
83
Speed
up to 2000 insertions per hour
Weight_lb
3200
Product Category
Haeger® 824 OneTouch-4e
Fastener Range_in
0.256 to 1/2in
Fastener Range_mm
M2 to M10mm
Repeatability
+/- 2% of force setting
Brand
Haeger
Product Type
Installation Equipment
Technology Type
Installation Technology
Stroke Length_in
0 to 8.5in
Stroke Length_mm
0 to 220mm
Throat Depth_in
24in
Throat Depth_mm
610mm
