FH4-832-6
Self-Clinching Studs for Stainless Steel Sheets – Types FH4™ and FHP™
FH4-832-6
Self-Clinching Studs for Stainless Steel Sheets – Types FH4™ and FHP™

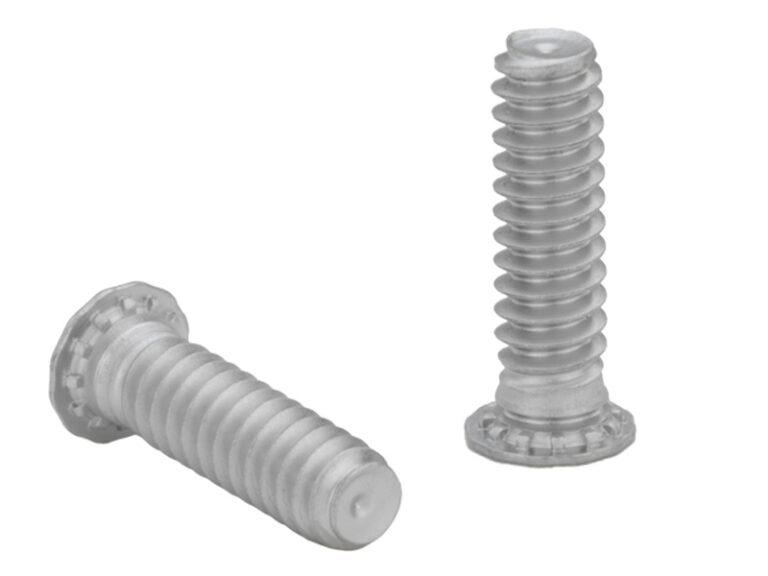

STUD, FLUSH, SS (410 MAT’L)
Specifications
- Thread Code
- 832
- Thread Size
- .164-32 (#8-32)
- Thread Specification
- 2A, ASME B1.1
- Fastener Material
- 400 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- HRB 92 / HB 195 or Less
- Product Category
- Self-Clinching Studs for Stainless Steel Sheets – Types FH4™ and FHP™ – Unified
- Thread Type
- External
- Brand
- PEM
- PEM Product Family
- FH4
- Product Type
- Studs
- H ± .015_in
- 0.237in
- Hole Size in Sheet +.003 – .000_in
- .163in
- L Len Pm 015in Or 4mm
- 0.375in
- Min. Dist. Hole C/L to Edge_in
- 0.281in
- S Max._in
- 0.09in
Installation & Performance Data
| Type | Thread Code | Installation (lbs.) | Haeger Part Number Anvil | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | Test Sheet Material | Anvil Dim A +.003 -.000 (in.) | Anvil Dim A + 0.1 (mm) | Anvil Dim B ±.002 (in.) | Anvil Dim C ±.002 (in.) | Anvil Dim C + 0.08 (mm) | Anvil Dim P ±.001 (in.) | Haeger Punch | Pemserter Punch | PULL THRU (lbs.) | Pushout (lbs.) | REC. NUT TIGHTENING TORQUE (in. lbs.) | SHEET HARDNESS HRB | TEST SHEET THICKNESS & MATERIAL | Torque-out (in. lbs.) | Anvil Dim R1 Max. (in.) | Anvil Dim R2 Max. (in.) | Test Sheet Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FH4 | 832 | 11200 | H-181-8L | 8001643 | 0.236 | 0.166 | 0.01 | 0.003 | 0.202 | 0.005 | H-108-0020L | 975200048 | 1800 | 780 | 35 | 86 | .060″ Stainless Steel | 58 | ||||||
| FH4 | 832 | 11200 | H-181-8L | H-108-0020L | 8001643 | 975200048 | Stainless Steel | 0.166 | 0.202 | 0.236 | 0.01 | 1800 | 780 | 35 | 86 | 58 | 0.003 | 0.005 | .060” |
