AESS8K241
Countersunk Head Threaded Insert – Open End Keyed
AESS8K241
Countersunk Head Threaded Insert – Open End Keyed
- Designed for high load applications. Countersunk feature allow fastener to be installed flush with sheet surface.
- Both UNC and UNF threads available in No. 10 and larger thread sizes. Check for availability of other grip ranges and designs.
Specifications
- Thread Size
- #8-32
- Thread Specification
- 3B per ASME B1.1
- Fastener Material
- 400 Series Stainless Steel
- Standard Material
- 430 Series Stainless Steel
- Standard Finish
- Passivated and/or tested, Passivated and/or tested per ASTM A380
- Identification Mark
- 1 Circ.
- Weight_lb
- 3.6
- Product Category
- Countersunk Head Threaded Insert – Open End Keyed
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103645
- Fastening
- Uninstalled
- ATLAS products Grip Range
- .201in, .201in – .241in, .241in
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Unified

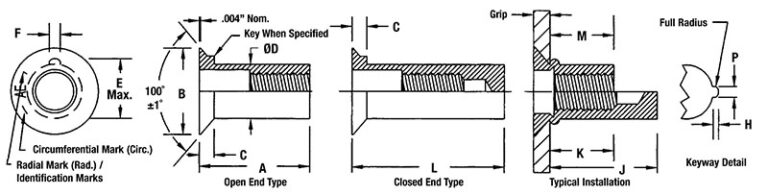

- A ± .015_in
- .625in
- B Ref._in
- .355in
- E Max._in
- .271in
- F + .005 -.000_in
- .054in
- H – Keyway Height_in
- .056 – .058in
- Install Drill Size Ref.
- #2
- Install Hole Size Max._in
- .226in
- Install Hole Size Min._in
- .221in
- C Max._in
- .063in
- øD + .000 – .004_in
- .221in
- P – Keyway Width + .003 -.000_in
- .062in
- Pull Up Factor_in
- .065in
