CFN-440-1ZI
Nylon Insert Self-Locking Fasteners – Types CFN
CFN-440-1ZI
Nylon Insert Self-Locking Fasteners – Types CFN

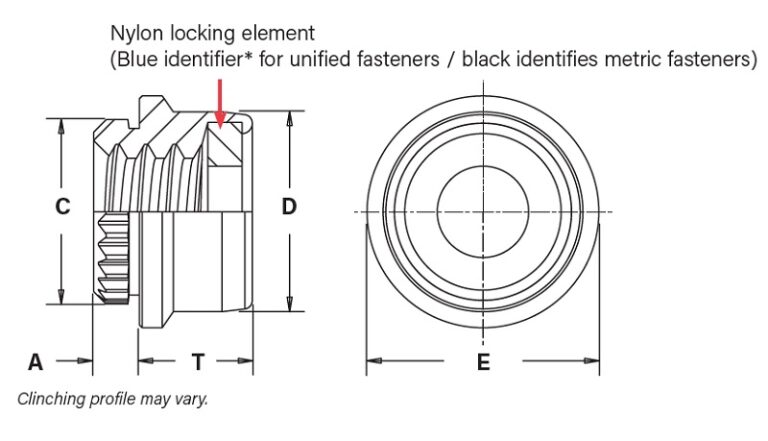

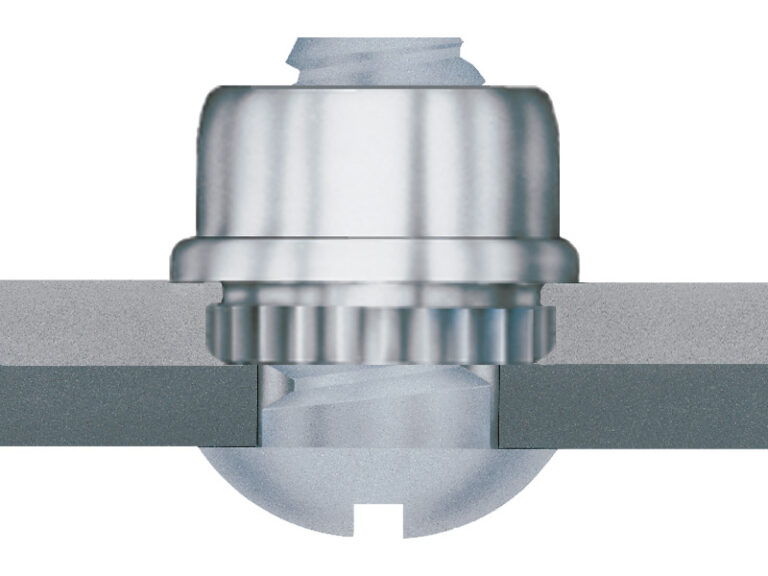

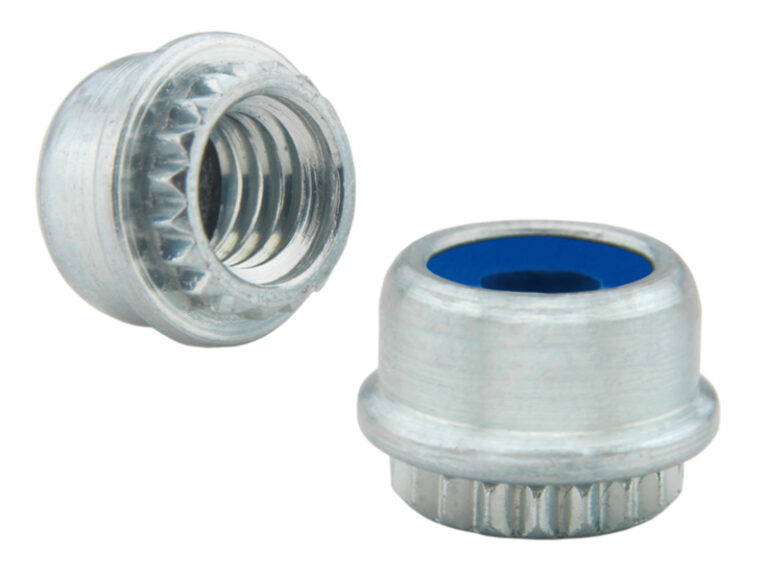

Type CFN broaching fasteners are available for thinner sheet, close-to-edge applications. The locking element provides prevailing torque to eliminate loosening of mating threaded hardware.
Specifications
- Thread Code
- 440
- Thread Size
- .112-40 (#4-40), #4-40
- Thread Specification
- 2B, ANSI B1.1, Internal
- Shank Code
- 1
- Fastener Material
- Carbon Steel
- Fastener Materials – Locking Element
- Blue Nylon
- Standard Finish
- colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633, Zinc plus Clear Chromate
- For Use in Sheet Hardness
- HRB 60 / HB 107 or Less
- Max. Temperature Limit_ºC
- 120
- Max. Temperature Limit_ºF
- 250
- Product Category
- Nylon Insert Self-Locking Fasteners – Types CFN
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103698
- Application Type
- Automotive Electronics, Datacom, Electric Vehicle Chargers, Industrial, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Locking, Threaded Internal
- Industry
- Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
- Installation Equipment/Method
- C-Frame Manual Feed
- PEM Product Family
- LN
- Product Type
- Nuts
- Technology Type
- Broaching
- Unit (Metric/Unified)
- Unified
- A (Shank) ± .003_in
- .040in
- C ± .002_in
- .162in
- D ± .004_in
- .175in
- E + .001 – .004_in
- .203in
- Hole Size in Sheet + .003 – .000_in
- .152in
- Min. Dist. Hole C/L to Edge_in
- .115in
- Min. Sheet Thickness_in
- .043in
- T Max._in
- .104in
Resources
Installation & Performance Data
| TYPE | THREAD CODE | MAX. FIRST ON PREVAILING TORQUE (in. lbs.) | MIN. FIRST OFF PREVAILING TORQUE (in. lbs.) | TEST SHEET MATERIAL & THICKNESS | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| CFN | 440 | 3 | 0.38 | .040" Cold-rolled Steel | 1000 | 10 | 4 |
