FEOX-832
Miniature Self-Clinching Fasteners – Types U, UL, FE, FEO, FEOX, FEX
FEOX-832
Miniature Self-Clinching Fasteners – Types U, UL, FE, FEO, FEOX, FEX

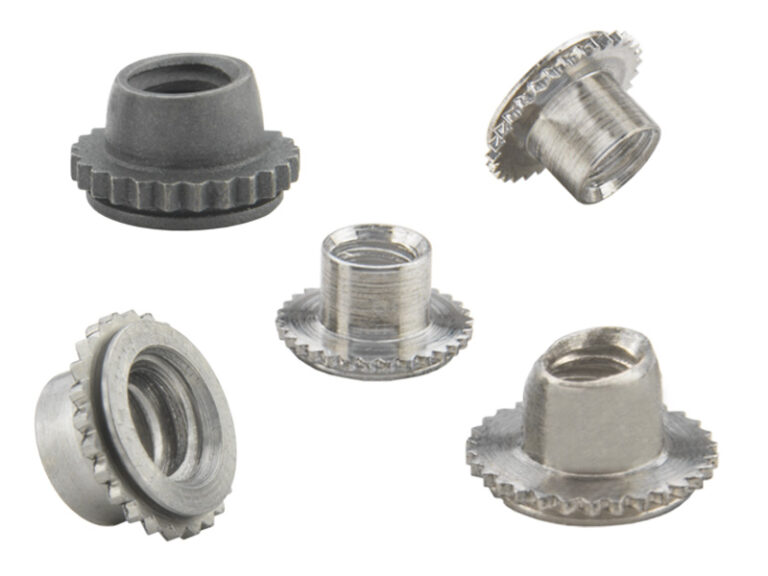

PEM® brand miniature fasteners fit into a minimal space and provide strong, reusable threads.
Types FE, FEO and UL are self-locking. Types FE and FEO thread locking torque performance is equivalent to applicable NASM25027 specifications. Ty
Specifications
- Thread Code
- 832
- Thread Size
- .164-32 (#8-32), #8-32
- Thread Specification
- 2B, ANSI B1.1, Internal
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested, Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- HRB 70 / HB 125 or Less
- Product Category
- Miniature Self-Clinching Fasteners – Types U, UL, FE, FEO, FEOX, FEX
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103692
- Thread Type
- Non-Locking
- Application Type
- Automotive Electronics, Consumer Electronics, Datacom, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Locking, Miniature, Threaded Internal
- Industry
- Automotive Electronics, Consumer Electronics, Datacom & Telecom
- Installation Equipment/Method
- C-Frame Automatic Feed, C-Frame Manual Feed
- PEM Product Family
- FE
- Product Type
- Nuts
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Unified

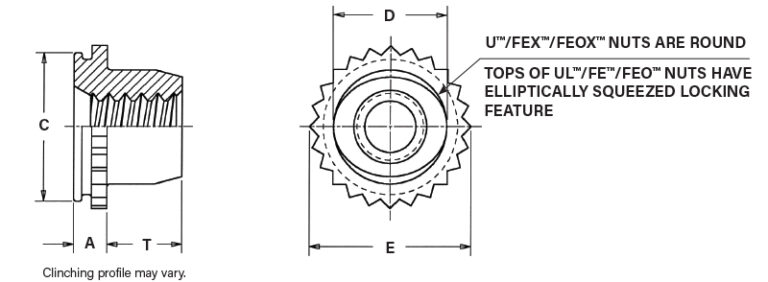

- A Shank Max
- .040in, 0.04in
- C + .000 – .005_in
- .289in
- E ± .005_in
- .322in
- Hole Size in Sheet + .003 – .000_in
- .290in
- Max. Hole in Attached Parts_in
- .184in
- Min. Dist. Hole C/L to Edge_in
- .20in
- D Max._in
- .215in
- Sheet Thickness_in
- .039 to .045in
- T + .015 -.000_in
- .090in
Resources
Installation & Performance Data
| TYPE | THREAD CODE | TEST SHEET MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) | |||
|---|---|---|---|---|---|---|---|---|
| FEO, FEOX | 832 | 5052-H34 Aluminum | 1500 | 155 | 48 | |||
| FEO, FEOX | 832 | Cold-Rolled Steel | 2500 | 260 | 48 |
