ISA-440

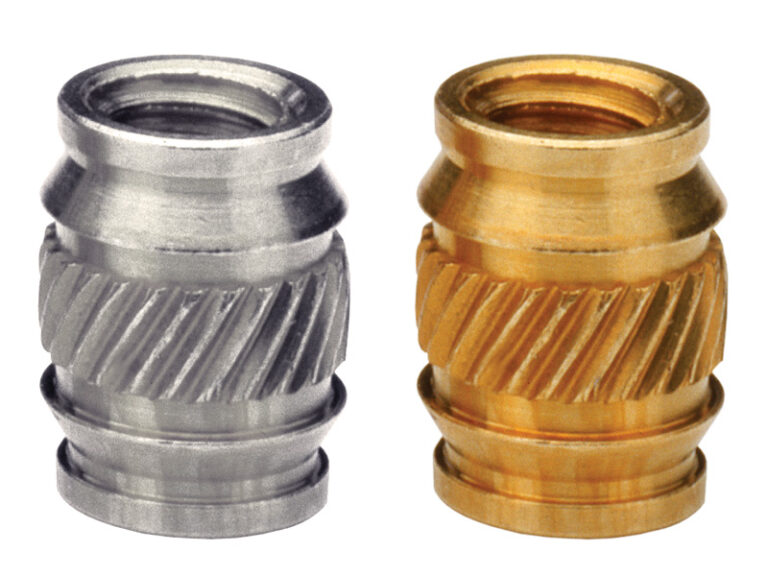

Heat Staking Insert, Symmetrical, Thru-Threaded

ISA-440

Heat Staking Insert, Symmetrical, Thru-Threaded

  • Designed for use in straight or tapered holes.
  • Symmetrical design eliminates the need for orientation.
  • Aluminum inserts ideal for light weight designs.
  • Aluminum and stainless steel inserts offer lead-free alternative.

Specifications

Thread Code
440
Thread Size
.112-40 (#4-40), #4-40
Thread Specification
2B per ASME B1.1
Fastener Material
Aluminum
Standard Material
Aluminum
Standard Finish
No Finish, Plain
Product Category
Heat Staking Insert, Symmetrical, Thru-Threaded
CAD Supplier
PennEngineering® (SI®)
CADPartID
103793
Thread Type
ISA
Base Panel Material
Plastic
Brand
SI
Fastener Characteristics
Threaded Internal
Installation Equipment/Method
Heat Staking/Ultrasonic
Product Type
Inserts
Technology Type
Inserts for Plastics
Unit (Metric/Unified)
Unified

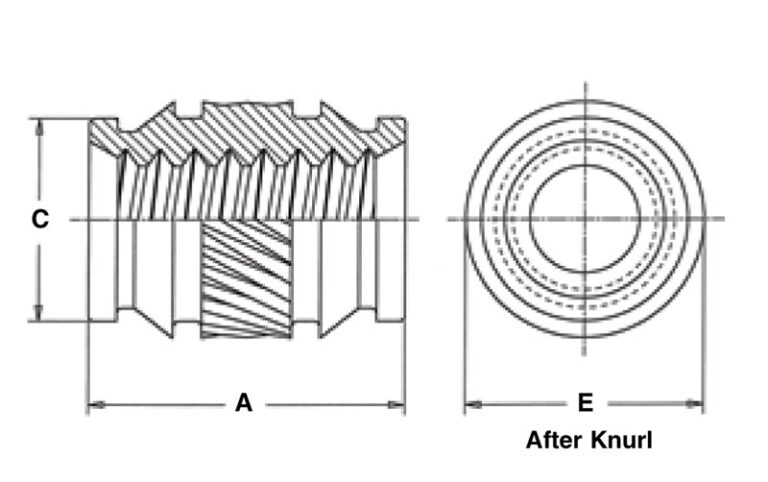

A ± .005_in
.226in
C ± .003_in
.153in
E ± .009_in
.182in
Hole Dia. +.003 -.000_in
.157in
Min. Hole Depth_in
.256in
