IUTFB-256
Heat Staking Insert, Symmetrical, Thru-Threaded
IUTFB-256
Heat Staking Insert, Symmetrical, Thru-Threaded
- Provides larger surface area and high pullout in reverse entry applications.
- Self-aligning lead-in provides accurate alignment prior to installation.
- Aluminum and stainless steel available upon request.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
Specifications
- Thread Code
- 256
- Thread Size
- #2-56
- Thread Specification
- 2B per ASME B1.1
- Fastener Material
- Brass
- Standard Material
- Brass
- Product Category
- Heat Staking Insert, Flanged, Straight Wall, Thru-Threaded
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 121614
- Thread Type
- IUTFB
- Base Panel Material
- Plastic
- Brand
- SI
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Heat Staking/Ultrasonic
- PEM Product Family
- SI
- Product Type
- Inserts
- Technology Type
- Inserts for Plastics
- Unit (Metric/Unified)
- Unified

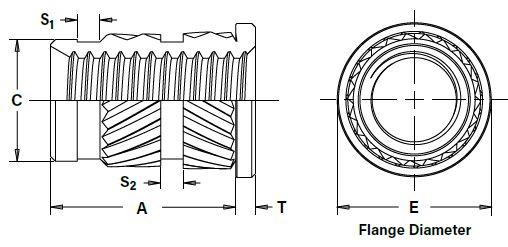

- A ± .005_in
- .157in
- C ± .005_in
- .121in
- E ± .005_in
- .187in
- Hole Dia. +.003 -.000_in
- .127in
- Min. Hole Depth_in
- .187in
- S1 Nom._in
- .021in
- S2 Nom._in
- .021in
- T ± 0.005_in
- .018in
