KFS2-M2
Broaching Nuts – Types KF2, KFS2
KFS2-M2
Broaching Nuts – Types KF2, KFS2

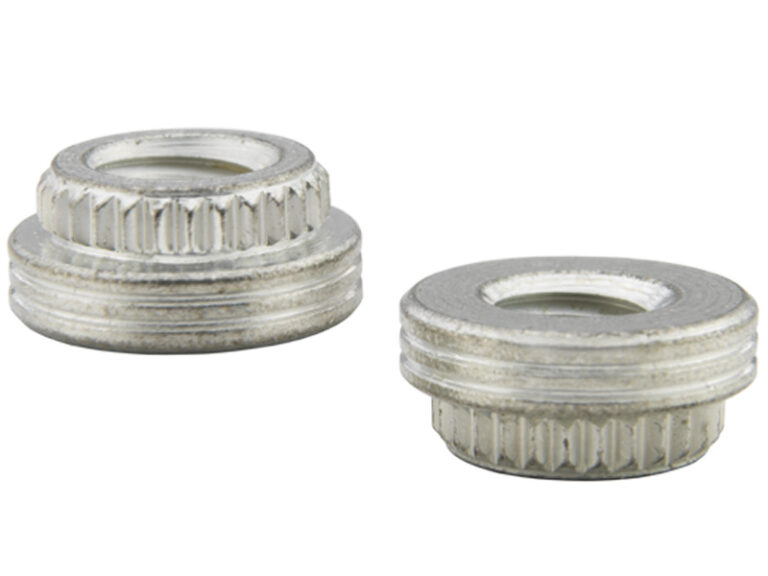

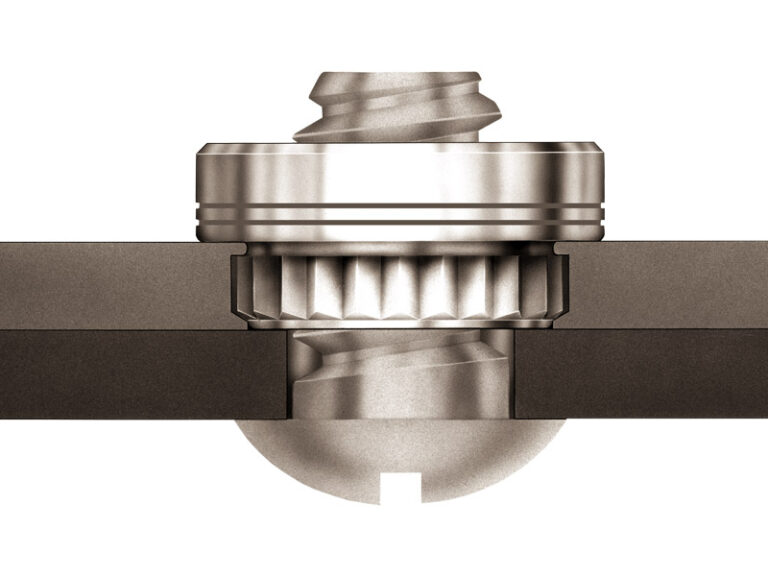

Type KF2 and KFS2 – Broaching nuts, internally threaded for mounting on PC boards.
Specifications
- Thread Code
- M2
- Thread Size
- M2 x 0.4
- Thread Specification
- 6H, ASME B1.13M, Internal
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested, Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- HRB 70 / HB 125 or Less|PC Board
- Product Category
- Broaching Nuts – Types KF2, KFS2
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103739
- Application Type
- Automotive, Automotive Electronics, Datacom, Telecom
- Base Panel Material
- PC Board
- Brand
- PEM
- Fastener Characteristics
- Threaded Internal
- Industry
- Automotive Electronics, Datacom & Telecom, Electic Vehicles, Electric Vehicles, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Automatic Feed, C-Frame Manual Feed
- PEM Product Family
- K
- Product Type
- Nuts
- Technology Type
- Broaching
- Unit (Metric/Unified)
- Metric

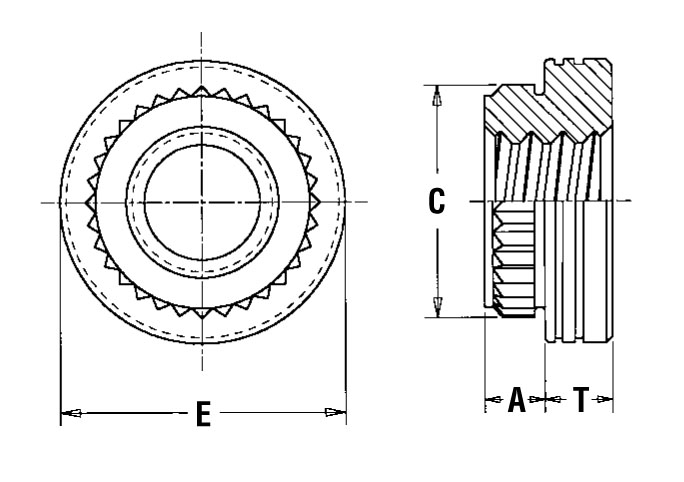

- A Shank Max
- 1.53mm
- C ± 0.08_mm
- 4.19mm
- E ± 0.13_mm
- 5.56mm
- Hole Size in Sheet + 0.08_mm
- 3.73mm
- Min. Dist. Hole C/L to Edge_mm
- 4.20mm
- Min. Sheet Thickness_mm
- 1.53mm
- T ± 0.13_mm
- 1.5mm
Resources
Installation & Performance Data
| TYPE | THREAD CODE | MAX. NUT TIGHTENING TORQUE (N•m) | TEST SHEET THICKNESS & MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N•m) |
|---|---|---|---|---|---|---|
| KF2, KFS2, KFE, KFSE | M2 | N/A | 1.5 mm FR-4 Panel | 2.2 | 267 | 0.68 |
