MSO4-M2-3

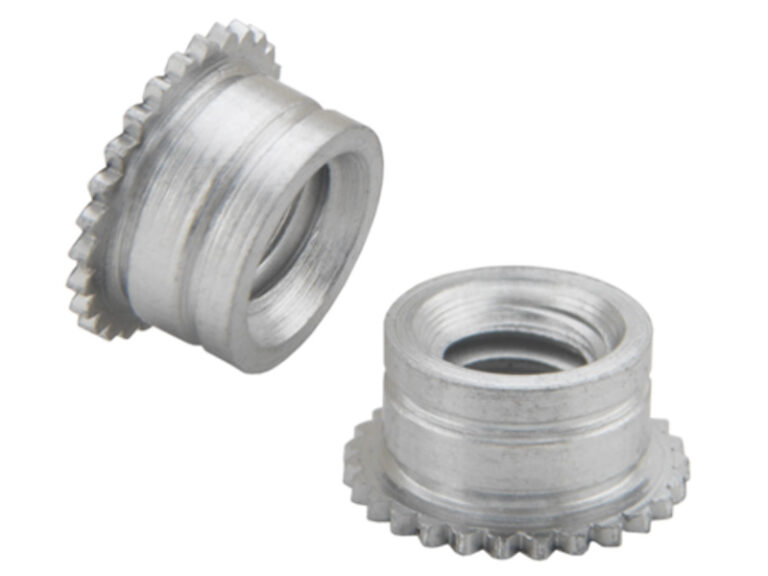

PEM® Type MSO4™ Self-clinching microPEM® Standoffs
MSO4-M2-3
PEM® Type MSO4™ Self-clinching microPEM® Standoffs
MINI STANDOFF M2 3MM LONG
Specifications
- Thread Code
- M2
- Thread Size
- M2 x 0.4
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- Hardened 400 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- HRB 88 / HB 183 or Less
- Product Category
- PEM® Type MSO4™ Self-clinching microPEM® Standoffs – Metric
- Thread Type
- Internal
- Brand
- microPEM
- PEM Product Family
- MSO4
- Product Type
- Standoffs

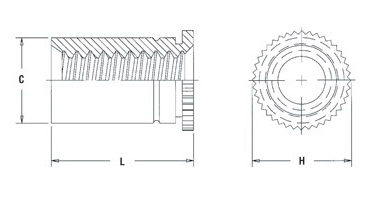

- H – Nom._mm
- 3.96mm
- Hole Size in Sheet + 0.05_mm
- mm
- L +0.05 -0.08_mm
- 3mm
- Min. Dist. Hole C/L to Edge_mm
- 3mm
- C Max._mm
- 3.16mm
Installation & Performance Data
| Type | Thread Code | Installation (lbs.) | Test Sheet Material | Max. Rec. Tightening Torque for Mating Screw (N•m) | Pushout (N) | Sheet Thickness (mm) | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|
| MSO4 | M2 | 11.1 | 304 Stainless Steel | 0.175 | 150 | 0.3 | 500 |
| MSO4 | M2 | 11.1 | 304 Stainless Steel | 0.175 | 200 | 0.43 | 500 |
