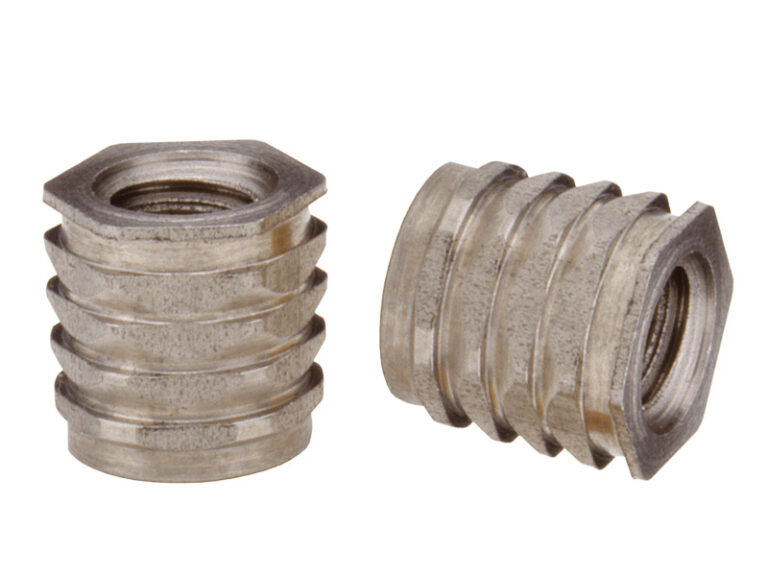

NFPC-M8

Press-in Threaded Inserts, Hexagonal

NFPC-M8

Press-in Threaded Inserts, Hexagonal

  • Press-fit insert provides strong, reusable threads. No heat or ultrasonics required.
  • Hexagonal “barbed” configuration ensures high torqueout and pullout values.
  • Aluminum inserts ideal for light weight designs.
  • Aluminum and stainless steel inserts offer lead-free alternative.

Specifications

Thread Code
M8
Thread Size
M8 x 1.25
Thread Size X Pitch
M8 x 1.25
Thread Specification
6H per ASME B1.13M
Fastener Material
300 Series Stainless Steel
Standard Material
300 Series Stainless Steel
Standard Finish
Passivated and/or tested, Passivated and/or tested per ASTM A380
Product Category
Press-in Threaded Inserts, Hexagonal
CAD Supplier
PennEngineering® (SI®)
CADPartID
103804
Thread Type
NFPC
Base Panel Material
Plastic
Brand
SI
Fastener Characteristics
Threaded Internal
Installation Equipment/Method
Press-In
Product Type
Inserts
Technology Type
Inserts for Plastics
Unit (Metric/Unified)
Metric

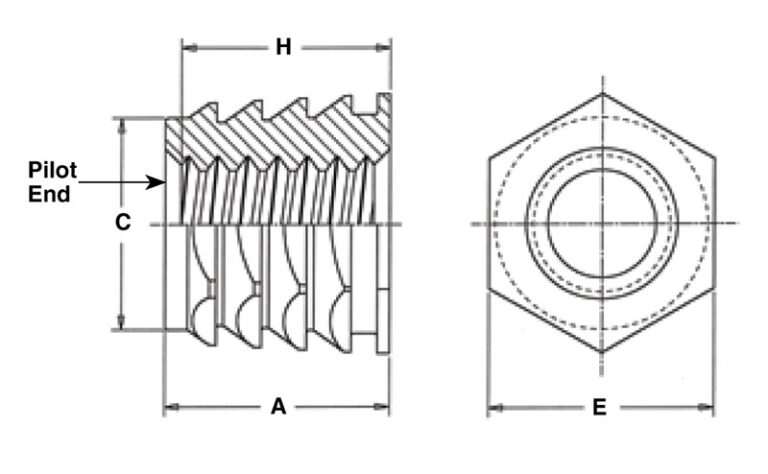

A Max._mm
9.27mm
E Nom._mm
9.53mm
Hole Size in Sheet + 0.08_mm
9.53mm
Min. Boss Dia._mm
24.13mm
Min. Depth Full Thread H_mm
8.76mm
Min. Sheet Thickness_mm
9.65mm
C Max._mm
9.50mm
