PF15-M6-2BL

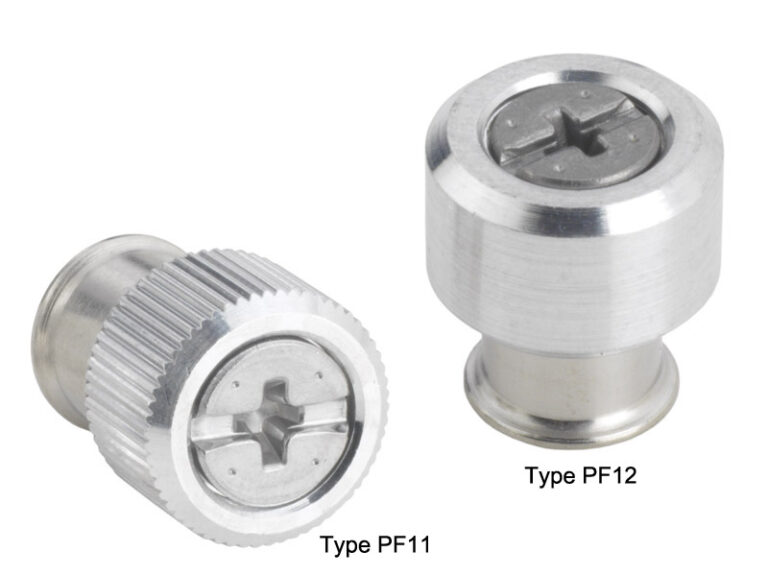

Large knob, spring-loaded – Types PF11 and PF12

PF15-M6-2BL

Large knob, spring-loaded – Types PF11 and PF12

  • Shoulder on retainer provides positive stop during installation.
  • Available in self-clinching, flaring, or floating mounting styles.
  • Available with knurled or un-knurled metal cap, black metal cap, or a custom color plastic cap.

Specifications

Thread Code
M6
Thread Size
M6 x 1
Thread Specification
6g, ANSI/ASME B1.13M
Screw Length Code
2
Material Knob
Aluminum
Material Retainer
Heat-Treated Carbon Steel
Material Screw
400 Series Stainless Steel
Material Spring
300 Series Stainless Steel
fTz
Natural Finish
Finish Retainer
Bright nickel over copper flash per ASTM B689
Finish Screw
Passivated and/or tested per ASTM A380
Finish Spring
Natural Finish
Optional Finish
Knob (aluminum) – Black AnodizeScrew (steel and stainless) – Black Nitride
Standard Finish
Black Panel Fastener
For Use in Sheet Hardness
HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
Driver Size
Slotted/#3 Phillips
Product Category
Large knob, spring-loaded – Types PF11, PF12 and PF15
CAD Supplier
PennEngineering® (PEM®)
Cad View
Fastened, Unfastened
CADPartID
102737
Thread Type
PF15, Semi-Smooth Cap
G Plus Minus 025in 64mm
10.41mm
PEM Product Family
PF
P Pm 025in Or 64mm
3.05mm
Unit (Metric/Unified)
Metric
A Shank Max
0.92mm
E ± 0.25_mm
14.61mm
Hole Size in Sheet + 0.08_mm
9.53mm
Min. Dist. Hole C/L to Edge_mm
11.68mm
Min. Sheet Thickness_mm
0.92mm
C Max._mm
9.50mm
T1 Nom._mm
13.46mm
T2 Nom._mm
20.07mm
