PF7MF-832-0

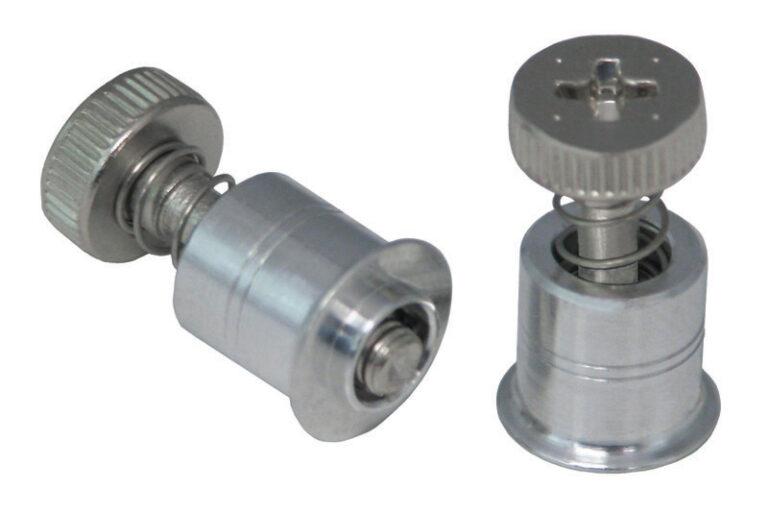

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount Type PF7MF
PF7MF-832-0
Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount Type PF7MF
PF7MF FLARING PF W/MATHREAD
Specifications
- Thread Code
- 832
- Thread Size(x Pitch)
- .164-32 (#8-32)
- Screw Length Code
- 0
- Material Retainer
- Aluminum
- Material Spring
- 300 Series Stainless Steel
- Screw Material
- Hardened Carbon Steel
- Finish Spring
- Natural Finish
- Retainer Finish
- Natural finish
- Screw Finish
- Bright nickel over copper flash
- Driver Size
- #2
- Product Category
- Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount – Unified Type PF7MF
- Thread Type
- External

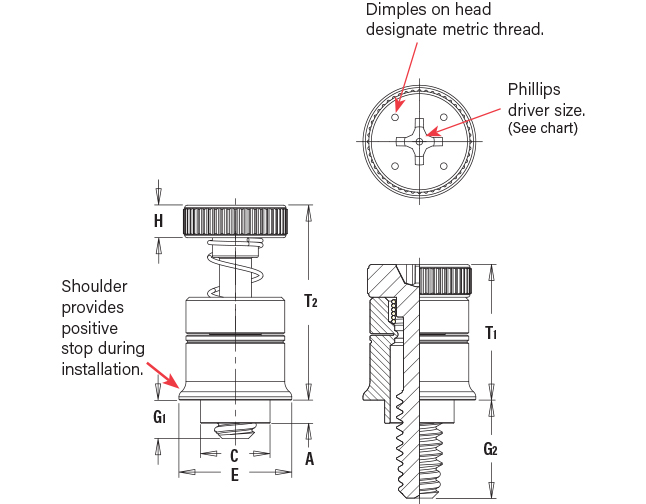

- Countersink Angle Nom_in
- 90⁰in
- E ± .010_in
- 0.405in
- G2 ± .025_in
- 0.24in
- H ± .010_in
- 0.12in
- Hole Size in Sheet +.005 – .000_in
- 0.266in
- C Max._in
- 0.265in
- T1 Nom._in
- 0.43in
- T2 Nom._in
- 0.63in
Installation & Performance Data
| Type | Thread Code | Installation (lbs.) | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | Anvil Dim A ±.002 (in.) | Anvil Dim C ±.002 (in.) | Max. Rec. Tightening Torque (in. lbs.) | Min. Screw Tensile (lbs.) | Punch Dim E +.003 -.000 (in.) | Punch Dim F ±.002 (in.) | Retainer Pullout (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PF7MF | 832 | 350 | H-117-8L | 8016177 | 8013672 | 0.353 | 0.385 | 15.6 | 1300 | 0.202 | 0.21 | 180 |
