PFLA-M6-1
Press-in Threaded Inserts, Flange-Head
PFLA-M6-1
Press-in Threaded Inserts, Flange-Head

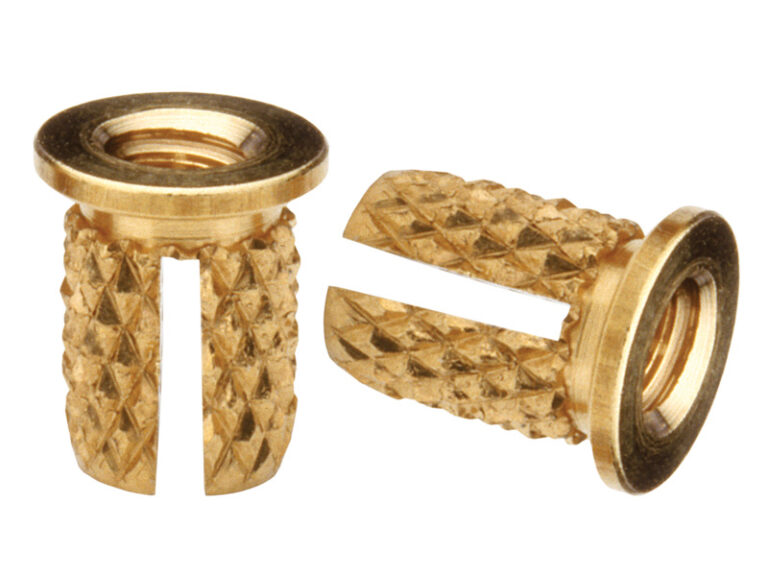

- Press-fit insert with strong, reusable threads. No heat or ultrasonics required.
- Flange-head eliminates direct contact of plastic with mating parts.
- Slotted insert compresses allowing easy access into the mounting hole.
- Aluminum inserts ideal for light weight designs.
- Aluminum inserts offer lead-free alternative.
Specifications
- Thread Code
- M6
- Thread Size
- M6 x 1
- Thread Size X Pitch
- M6 x 1
- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Aluminum
- Standard Material
- Aluminum
- Standard Finish
- No Finish, Plain
- Length Code
- 1
- Product Category
- Press-in Threaded Inserts, Flange-Head
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 103808
- Thread Type
- PFLA
- Base Panel Material
- Plastic
- Brand
- SI
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Press-In
- Product Type
- Inserts
- Technology Type
- Inserts for Plastics
- Unit (Metric/Unified)
- Metric

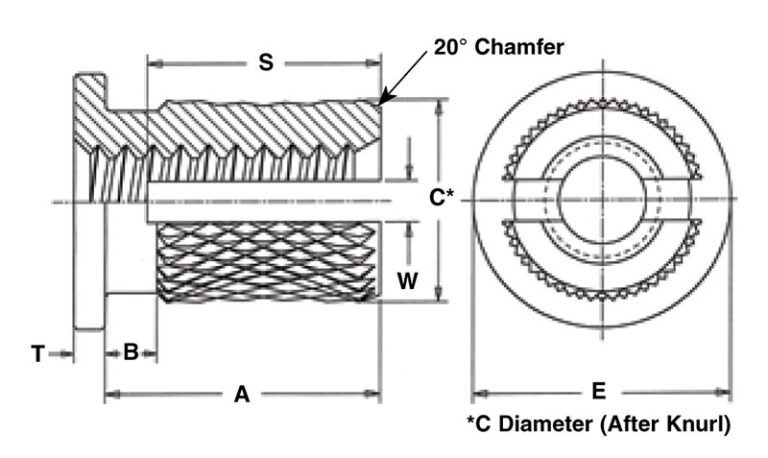

- A ± 0.13_mm
- 9.86mm
- B ± 0.25_mm
- 1.40mm
- C Nom._mm
- 8.51mm
- E Nom._mm
- 9.53mm
- Hole Dia. ± 0.05_mm
- 7.95mm
- Min. Hole Depth_mm
- 10.88mm
- S Nom._mm
- 8.38mm
- T ± 0.13_mm
- 1.27mm
- W ± 0.4_mm
- 2.00mm
