RAA4-9-6

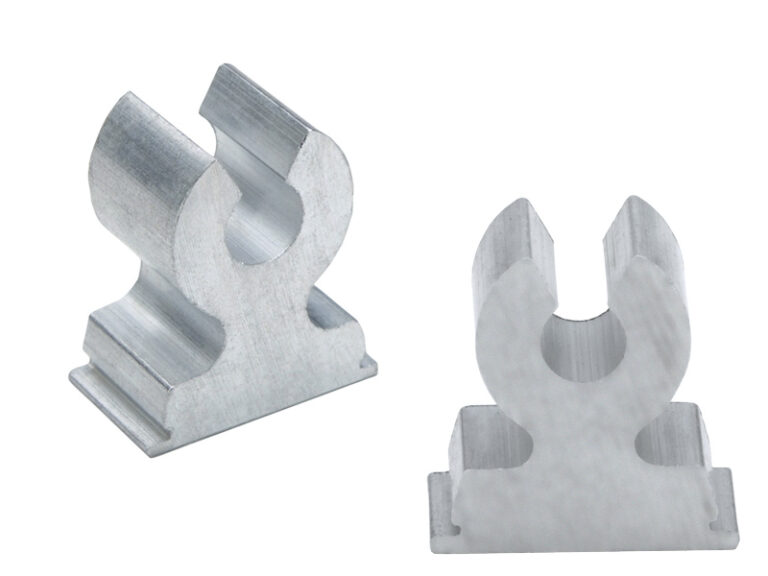

Aluminum Right Angle Fasteners – Type RAA

RAA4-9-6

Aluminum Right Angle Fasteners – Type RAA

Type RAA right angle fasteners for sheet metal can accept thread forming or self-tapping screws.

Specifications

Thread Form Screw Size
#4-40
Screw Size Code
4
Standard Material
6061-T6 Aluminum
For Use in Sheet Hardness
HRB 45 (Hardness Rockwell “B” Scale) / HB (Hardness Brinell) 77 or Less
Height Code
9
Length Code
6
Product Category
Aluminum Right Angle Fasteners – Type RAA
CAD Supplier
PennEngineering® (PEM®)
CADPartID
103700
Thread Type
RAA
Application Type
Automotive Electronics, Datacom, Industrial, Manufacturing & Sheet Metal Fabrication, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Right Angle
G Nom
0.389in
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
Installation Equipment/Method
C-Frame Manual Feed
L Len Pm 003in Or 08mm
0.183in
PEM Product Family
RA
Product Type
Nuts
Technology Type
Self-Clinching
Unit (Metric/Unified)
Unified

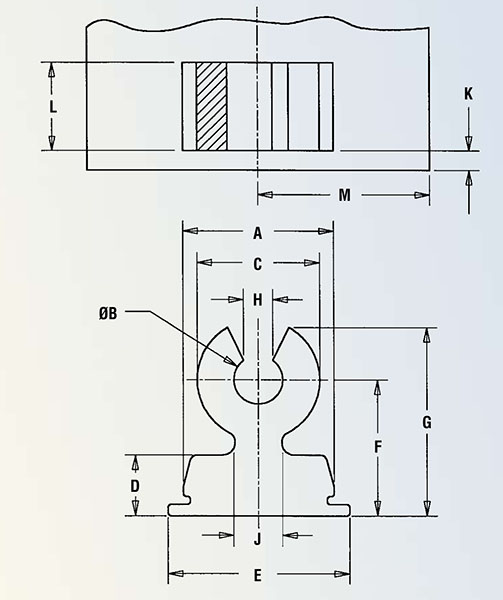

A ± .003_in
0.308in
C Nom._in
0.25in
D Nom._in
0.125in
E ± .006_in
0.368in
F – Height ± .006_in
0.281in
H ± .007_in
0.054in
Hole Size in Sheet + 0.002 – 0.001_in
.312 x .187in
J Nom._in
0.096in
Min. Dist. Hole C/L to Edge M_in
0.35in
Min. Part Face to Edge K_in
0.04in
Min. Sheet Thickness_in
0.04in
øB ± .004_in
0.1in
