SH-0420-2X

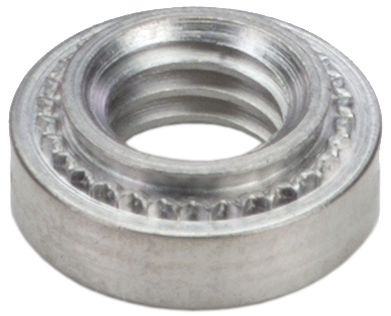

Type SH™ Hard Panel Nuts
SH-0420-2X
Type SH™ Hard Panel Nuts
- Installs into thin, harder, high strength steel materials (high strength steel sheets at 975MPA maximum ultimate tensile)
- Allows overall weight reduction for all vehicles
- Provides lower installed cost
- Unplated threads may be oversized sized as permitted by thread standards to accept minimum plating thickness of .00020”/.0051 mm
Compare to other thin sheet fastening devices:– Addresses environmental concerns
- Smaller outer diameter
- Lighter weight
- Flush on reverse side of panel
- Close to edge of panel mounting
- No embossing required
- Hardened nut material provides stronger thread strength
- Can be installed automatically using press or in-die technology
Specifications
- Thread Code
- 0420
- Thread Size
- .250-20 (1/4-20), 1/4-20
- Thread Specification
- 2B / ASME B1.13M, 6H, ASME B1.1, Internal
- Shank Code
- 2
- Fastener Material
- Alloy Steel, Hardened Alloy Steel
- Optional Finish
- Consult technical support for recommended optional finishes.
- Standard Finish
- No Finish (with Rust Preventative Oil)
- For Use in Sheet Hardness
- HRC 30 / HB 277 or Less
- Product Category
- Type SH™ Hard Panel Nuts
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103686
- Application Type
- Automotive, Industrial, Manufacturing & Sheet Metal Fabrication
- Base Panel Material
- Hard Steel
- Brand
- PEM
- Fastener Characteristics
- Threaded Internal
- Industry
- Automotive, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Automatic Feed, C-Frame Manual Feed, In-Die
- PEM Product Family
- CL
- Product Type
- Nuts
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Unified

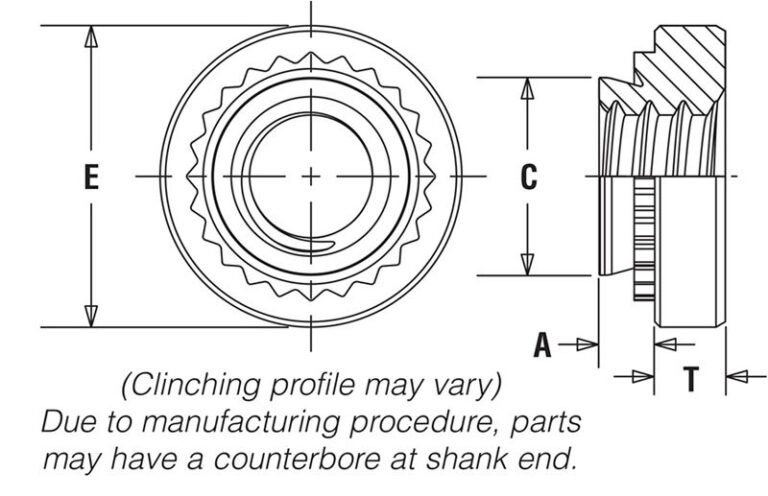

- A Shank Max
- .087in, 0.087in
- E ± .010_in
- .440in
- Hole Size in Sheet + .003 – .000_in
- .344in
- Min. Dist. Hole C/L to Edge_in
- .34in
- Min. Sheet Thickness_in
- .090in
- C Max._in
- .343in
- T ± .010_in
- .170in
Resources
Installation & Performance Data
| TYPE | THREAD CODE | SHANK CODE | TEST SHEET THICKNESS & SHEET MATERIAL (in.) | SHEET HARDNESS HRC | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) | |
|---|---|---|---|---|---|---|---|---|
| SH | 0420 | 1 | .098" S700MC | 23 | 11700 | 950 | 150 | |
| SH | 0420 | 2 | .098" S700MC | 23 | 12900 | 1000 | 170 |
