SP-M6-2

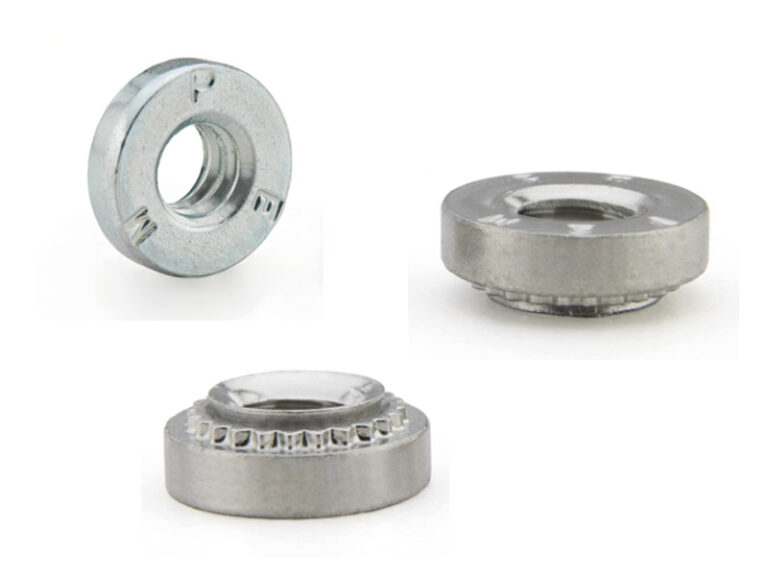

Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP
SP-M6-2
Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP
NUT, X-HARD, PEM 300
Specifications
- Thread Code
- M6
- Shank Code
- 2
- For Use in Sheet Hardness
- HRB 90 / HB 192 or Less
- Product Category
- Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP – Metric
- Thread Type
- Internal
- Hole Size in Sheet +.003 / +0.08mm_mm
- 8.75mm

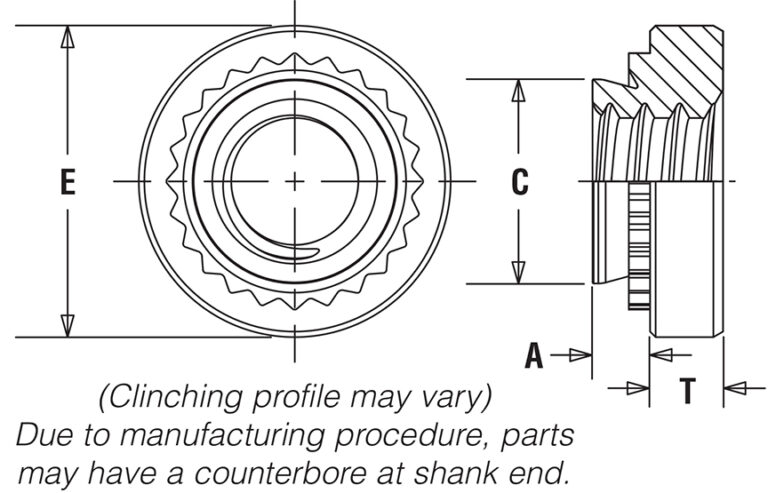

- E ± 0.25_mm
- 11.18mm
- Hole Size in Sheet + 0.08_mm
- 8.75mm
- Min. Dist. Hole C/L to Edge_mm
- 8.6mm
- C Max._mm
- 8.73mm
- T ± 0.25_mm
- 4.08mm
Installation & Performance Data
| Type | Thread Code | Shank Code | Test Sheet Material | Pemserter Part Number Anvil | Pemserter Part Number Punch | Anvil Dim A ±0.05 (mm) | Anvil Dim P -0.03 (mm) | Anvil Dim R1 +0.13 (mm) | Anvil Dim R Max. (mm) | Haeger Part Number Lower Tool | Haeger Part Number Upper Tool | Installation (kN) | Pushout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP | M6 | 2 | 304 Stainless Steel | 8012825 | 8003076 | 11.25 | 4.14 | 0.13 | 0.25 | H-183-04M6L | H-108-0020L | 60 | 2600 | 19 |
