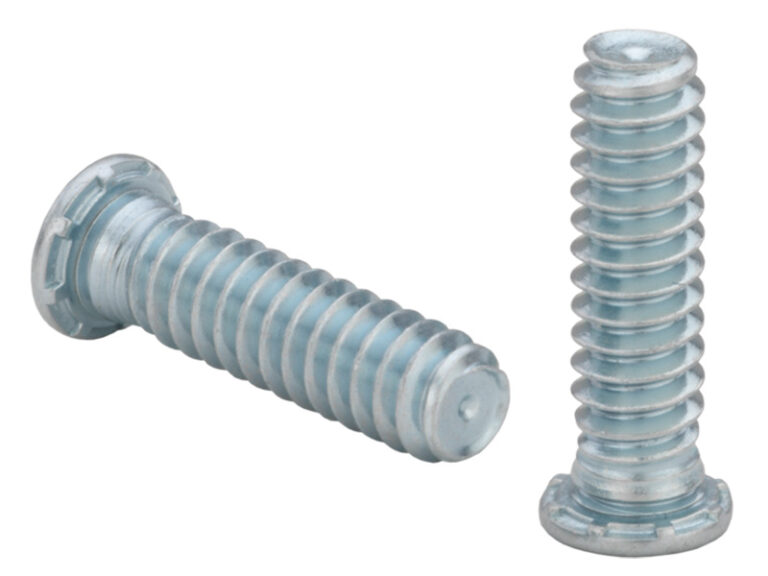

TFHS-M3-10
Non-Flush Studs – Types TFH, TFHS
TFHS-M3-10
Non-Flush Studs – Types TFH, TFHS
STUD, THIN HEAD, STAINLESS
Specifications
- Thread Code
- M3
- Thread Size
- M3 x 0.5
- Thread Specification
- 6g, ASME B1.13M
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- HRB 70 / HB 125 or Less
- Product Category
- Non-Flush Studs – Types TFH, TFHS – Metric
- Thread Type
- External
- Brand
- PEM
- Hole Size in Sheet +.003 / +0.08mm_mm
- 3mm
- PEM Product Family
- TFHS
- Product Type
- Studs

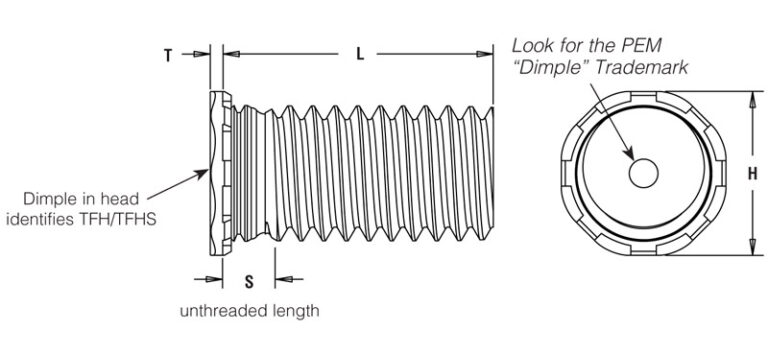

- H ± 0.4_mm
- 4.5mm
- Hole Size in Sheet + 0.08_mm
- 3mm
- L ± 0.4_mm
- 10mm
- Min. Dist. Hole C/L to Edge_mm
- 5.6mm
- S Max._mm
- 1.8mm
- T Max._mm
- 0.64mm

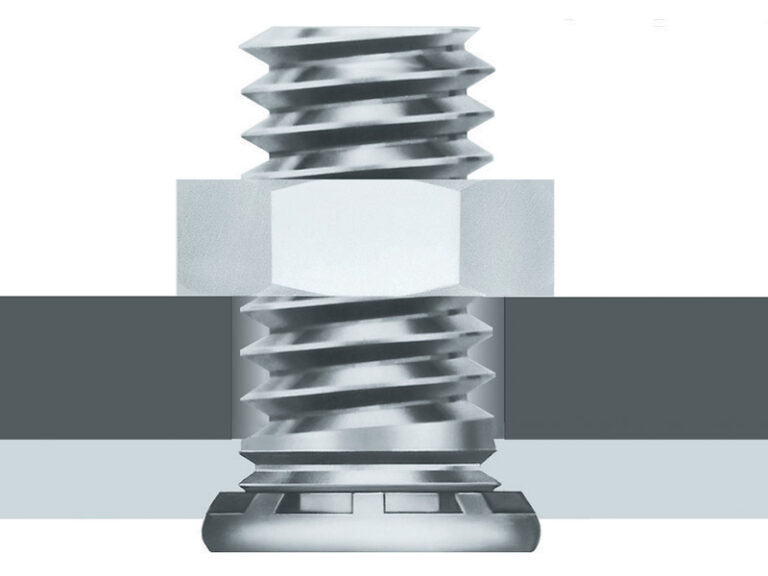

Installation & Performance Data
| Type | Thread Code | Anvil Dim A + 0.1 (mm) | Anvil Dim C + 0.08 (mm) | Haeger Anvil For Sheet 0.51 to 0.75 (mm) | Haeger Anvil For Sheet > 0.76 (mm) | Haeger Punch | Installation (kN) | Pemserter Anvil For Sheet 0.51 to 0.75 (mm) | Pemserter Anvil For Sheet > 0.76 (mm) | Pemserter Punch | PULL THRU (N) | PULL THRU TEST BUSHING HOLE SIZE (mm) | Pushout (N) | REC. NUT TIGHTENING TORQUE (N•m) | SHEET HARDNESS HRB | TEST SHEET THICKNESS & MATERIAL | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TFHS | M3 | 3.6 | 3.03 | H-103-M3LC | H-103-M3L | H-108-0020L | 5.8 | 970200242300 | 970200229300 | 970200236400 | 2962 | 3.51 | 255 | 0.93 | 43 | 0.65 mm Aluminum | 0.19 |
| TFHS | M3 | 3.6 | 3.03 | H-103-M3LC | H-103-M3L | H-108-0020L | 6.7 | 970200242300 | 970200229300 | 970200236400 | 2971 | 3.51 | 394 | 0.94 | 57 | 0.57 mm Steel | 0.84 |
